Granite Components
-
Granite Air Bearing
The core characteristics of granite air bearings can be summarized from three dimensions: material, performance, and application adaptability:
Material Property Advantages
- High rigidity & low thermal expansion coefficient: Granite has excellent physical stability, which reduces the impact of temperature changes on precision.
- Wear-resistant & low vibration: After precision machining of the stone surface, combined with the air film, operational vibration can be further reduced.
Enhanced Air Bearing Performance
- Contactless & wear-free: Air film support eliminates mechanical friction, resulting in an extremely long service life.
- Ultra-high precision: By combining the uniformity of the air film with the geometric accuracy of granite, motion errors can be controlled at the micrometer/nanometer level.
Application Adaptability Advantages
- Suitable for high-precision equipment: Ideal for scenarios with strict precision requirements, such as lithography machines and precision measuring instruments.
- Low maintenance cost: There are no mechanical wear parts; only clean compressed air needs to be ensured.
-
Granite Mechanical Components—Precision measuring instruments
Granite mechanical components, relying on the granite material, have advantages such as high hardness, stable physical and chemical properties, low thermal expansion coefficient (not prone to thermal deformation), and excellent shock resistance.Granite mechanical components are mainly used as core structural parts such as bases and worktables for precision equipment like coordinate measuring machines, high-precision machine tools, and semiconductor production equipment, serving to ensure the accuracy and stability of the equipment during operation. -
Granite Bridge—Granite Mechacnical Components
The granite bridge is one of the core supporting components in the precision industrial field.
Made from high-density granite, it leverages the material’s properties of low thermal expansion and contraction, deformation resistance, and vibration resistance. It is mainly used as the frame/datum structure for coordinate measuring machines, precision machining equipment, and optical inspection instruments, ensuring the stability and measurement/machining accuracy of the equipment during high-precision operations. -
ZHHIMG® Precision Granite Bases
In the world of ultra-precision engineering, the final output is only as reliable as the foundation it sits upon. At ZHONGHUI Group (ZHHIMG®), we understand that in industries where a single micron is the difference between success and failure, the choice of structural material is everything. Our precision granite components, including the custom Granite Gantry Bases and Precision Machine Beds shown in our latest gallery, represent the pinnacle of stability for the world’s most demanding technical applications.
-
Ultra-Precision Granite Gantry Base
For decades, the foundation of ultra-precision motion control has been a stable, vibration-dampened base. The ZHHIMG® Granite Gantry Base is engineered not just as a supporting structure, but as the core precision element for advanced metrology, lithography, and high-speed inspection equipment. Built from our proprietary ZHHIMG® Black Granite, this integrated assembly—featuring a flat base and a rigid gantry bridge—ensures unmatched static and dynamic stability, defining the ultimate benchmark for system performance.
-
Precision Granite Platform with Integrated Mounting Holes
A Stable Reference Foundation for Ultra-Precision Engineering
Precision granite platforms play a critical role in modern ultra-precision manufacturing, metrology, and equipment assembly. The ZHHIMG® Precision Granite Platform shown here is engineered as a high-stability structural and measurement base, designed to support demanding industrial applications where long-term accuracy, rigidity, and vibration damping are essential.
Manufactured from ZHHIMG® Black Granite, this platform combines high material density, excellent dimensional stability, and carefully engineered mounting features to serve as a reliable reference surface and functional machine base.
-
Precision Granite Reference Plate: The Definitive Foundation for Ultra-Accuracy
The pursuit of excellence in ultra-precision manufacturing and metrology begins with a perfect, stable reference plane. At ZHONGHUI Group (ZHHIMG®), we don’t just manufacture components; we engineer the very foundation upon which the future of high-technology is built. Our Precision Granite Reference Plates—like the robust component pictured—embody the pinnacle of material science, expert craftsmanship, and metrological rigor, serving as the trusted, stable base for the world’s most sensitive industrial applications.
-
Precision Granite Surface Plate
By ZHHIMG® – Trusted by Global Leaders in Semiconductor, CNC & Metrology Industries
At ZHHIMG, we don’t just manufacture granite surface plates — we engineer the foundation of precision. Our Precision Granite Surface Plate is built for laboratories, metrology centers, semiconductor fabs, and advanced manufacturing environments where accuracy at the nanometer level isn’t optional — it’s essential.
-

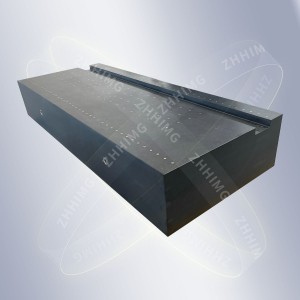

ZHHIMG® Precision Granite Components and Bases
The pursuit of ultra-precision in industries like semiconductor manufacturing, CMM metrology, and advanced laser processing demands a reference platform that is fundamentally stable and dimensionally immutable. The component pictured here, a customized Precision Granite Component or machine base by ZHONGHUI Group (ZHHIMG®), represents the pinnacle of this requirement. It is not merely a piece of polished stone, but a highly engineered, stress-relieved structure designed to serve as the unshakeable foundation for the world’s most sensitive equipment.
-
Precision Granite Machine Base
The Precision Granite Machine Base manufactured by ZHHIMG® is engineered to deliver exceptional stability and accuracy for high-end industrial machines. Built from ZHHIMG® Black Granite, this structure provides excellent rigidity, vibration damping, and thermal stability—far superior to metal structures or low-grade stone alternatives.
Designed for demanding environments such as semiconductor manufacturing, optical inspection, and precision CNC machines, our customized granite components ensure long-lasting accuracy and reliability where precision matters most.
-
Custom Granite Gantry Frame & Ultra-Precision Machine Base
The Foundation of Geometric Integrity: Why Stability Starts with Black Granite
The pursuit of absolute accuracy in fields like semiconductor manufacturing, CMM inspection, and ultrafast laser processing is always constrained by one fundamental limit: the stability of the machine’s foundation. In the nanometer world, traditional materials like steel or cast iron introduce unacceptable levels of thermal drift and vibration. The Custom Granite Gantry Frame pictured here is a definitive answer to this challenge, representing the pinnacle of passive geometric stability. -
ZHHIMG® Granite Angle Base/Square
ZHHIMG® Group specializes in the mastery of ultra-precision manufacturing, guided by our uncompromising quality principle: “The precision business can’t be too demanding.” We introduce our ZHHIMG® Granite Right-Angle Component (or Granite L-Base/Angle Square Component)—a critical structural element designed to be the ultra-stable foundation for the world’s most demanding machinery.
Unlike simple measuring tools, this component is engineered with custom mounting features, weight-reduction holes, and meticulously ground surfaces to serve as the core structural body, gantry, or base in ultra-precision motion systems, CMMs, and advanced metrology equipment.
