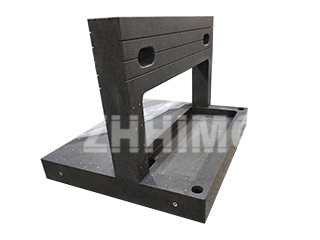

The integrity of high-end machinery, from advanced measuring devices to massive infrastructure, hinges on its core support structure—the machine base. When these structures feature complex, non-standard geometries, known as custom precision bases (Irregular base), the manufacturing, deployment, and long-term maintenance processes present unique challenges for controlling deformation and ensuring sustained quality. At ZHHIMG, we recognize that achieving stability in these custom solutions requires a systematic approach, integrating material science, advanced processing, and smart life-cycle management.
The Dynamics of Deformation: Identifying Key Stressors
Achieving stability requires a deep understanding of the forces that undermine geometric integrity over time. Custom bases are particularly susceptible to three primary sources of deformation:
1. Internal Stress Imbalance from Material Processing: The manufacturing of custom bases, whether from specialized alloys or advanced composites, involves intense thermal and mechanical processes like casting, forging, and heat treatment. These stages inevitably leave behind residual stresses. In large cast steel bases, differential cooling rates between thick and thin sections create stress concentrations that, when released over the component’s lifespan, lead to minute but critical micro-deformations. Similarly, in carbon fiber composites, the varied shrinkage rates of layered resins can induce excessive interfacial stress, potentially causing delamination under dynamic loading and compromising the base’s overall shape.
2. Cumulative Defects from Complex Machining: The geometric complexity of custom bases—with multi-axis contoured surfaces and high-tolerance hole patterns—means processing flaws can quickly accumulate into critical errors. In five-axis milling of a non-standard bed, an incorrect tool path or uneven cutting force distribution can cause localized elastic deflection, resulting in the workpiece rebounding post-machining and leading to an out-of-tolerance flatness. Even specialized processes like Electric Discharge Machining (EDM) in complex hole patterns, if not meticulously compensated for, can introduce dimensional discrepancies that translate into unintended pre-stress when the base is assembled, leading to long-term creep.
3. Environmental and Operational Loading: Custom bases often operate in extreme or variable environments. External loads, including temperature swings, humidity changes, and continuous vibration, are significant inducers of deformation. An outdoor wind turbine base, for example, experiences daily thermal cycles that cause moisture migration within the concrete, leading to micro-cracking and a reduction in overall rigidity. For bases supporting ultra-precision measuring equipment, even micron-level thermal expansion can degrade instrument accuracy, necessitating integrated solutions like controlled environments and sophisticated vibration isolation systems.
Quality Mastery: Technical Pathways to Stability
Controlling the quality and stability of custom bases is achieved through a multi-faceted technical strategy that addresses these risks from material selection to final assembly.
1. Material Optimization and Stress Pre-Conditioning: The battle against deformation begins at the material selection stage. For metallic bases, this involves utilizing low-expansion alloys or subjecting materials to rigorous forging and annealing to eliminate casting defects. For example, applying deep-cryogenic treatment to materials like maraging steel, often used in aviation test stands, significantly reduces residual austenite content, enhancing thermal stability. In composite bases, smart ply lay-up designs are crucial, often alternating fiber directions to balance anisotropy and embedding nanoparticles to enhance interfacial strength and mitigate delamination-induced deformation.
2. Precision Machining with Dynamic Stress Control: The processing phase demands the integration of dynamic compensation technologies. On large gantry machining centers, in-process measurement systems feed back actual deformation data to the CNC system, allowing for automated, real-time tool path adjustments—a “measure-process-compensate” closed-loop control system. For fabricated bases, low-heat-input welding techniques, such as laser-arc hybrid welding, are employed to minimize the heat-affected zone. Post-weld localized treatments, like peening or sonic impact, are then used to introduce beneficial compressive stresses, effectively neutralizing detrimental residual tensile stresses and preventing in-service deformation.
3. Enhanced Environmental Adaptability Design: Custom bases require structural innovations to bolster their resistance to environmental stress. For bases in extreme temperature zones, design features such as hollow, thin-walled structures filled with foam concrete can reduce mass while simultaneously improving thermal insulation, mitigating heat expansion and contraction. For modular bases requiring frequent disassembly, precision locating pins and specific pre-tensioned bolting sequences are employed to facilitate quick, accurate assembly while minimizing the transfer of unwanted mounting stress into the primary structure.
Full Life-Cycle Quality Management Strategy
The commitment to base quality extends well beyond the manufacturing floor, encompassing a holistic approach across the entire operational lifecycle.
1. Digital Manufacturing and Monitoring: The implementation of Digital Twin systems allows for real-time monitoring of manufacturing parameters, stress data, and environmental inputs via integrated sensor networks. In casting operations, infrared thermal cameras map the solidification temperature field, and data is fed into Finite Element Analysis (FEA) models to optimize riser design, ensuring simultaneous shrinkage across all sections. For composite curing, embedded Fiber Bragg Grating (FBG) sensors monitor strain changes in real-time, allowing operators to adjust process parameters and prevent interfacial defects.
2. In-Service Health Monitoring: Deploying Internet of Things (IoT) sensors enables long-term health monitoring. Techniques such as vibration analysis and continuous strain measurement are used to identify early signs of deformation. In large structures like bridge supports, integrated piezoelectric accelerometers and temperature-compensated strain gauges, combined with machine learning algorithms, can predict settlement or tilt risk. For precision instrument bases, periodic verification with a laser interferometer tracks flatness degradation, automatically triggering micro-adjustment systems if deformation approaches the tolerance limit.
3. Repair and Remanufacturing Upgrades: For structures that have experienced deformation, advanced non-destructive repair and remanufacturing processes can restore or even enhance original performance. Micro-cracks in metallic bases can be repaired using laser cladding technology, depositing a homogeneous alloy powder that metallurgically fuses with the substrate, often resulting in a repaired zone with superior hardness and corrosion resistance. Concrete bases can be strengthened via high-pressure injection of epoxy resins to fill voids, followed by a spray-on polyurea elastomer coating to improve water resistance and significantly extend the structure’s operational lifespan.
Controlling deformation and ensuring the long-term quality of custom precision machine bases is a process that requires deep integration of material science, optimized manufacturing protocols, and intelligent, predictive quality management. By championing this integrated approach, ZHHIMG significantly enhances the environmental adaptability and stability of foundational components, guaranteeing the sustained high-performance operation of the equipment they support.
