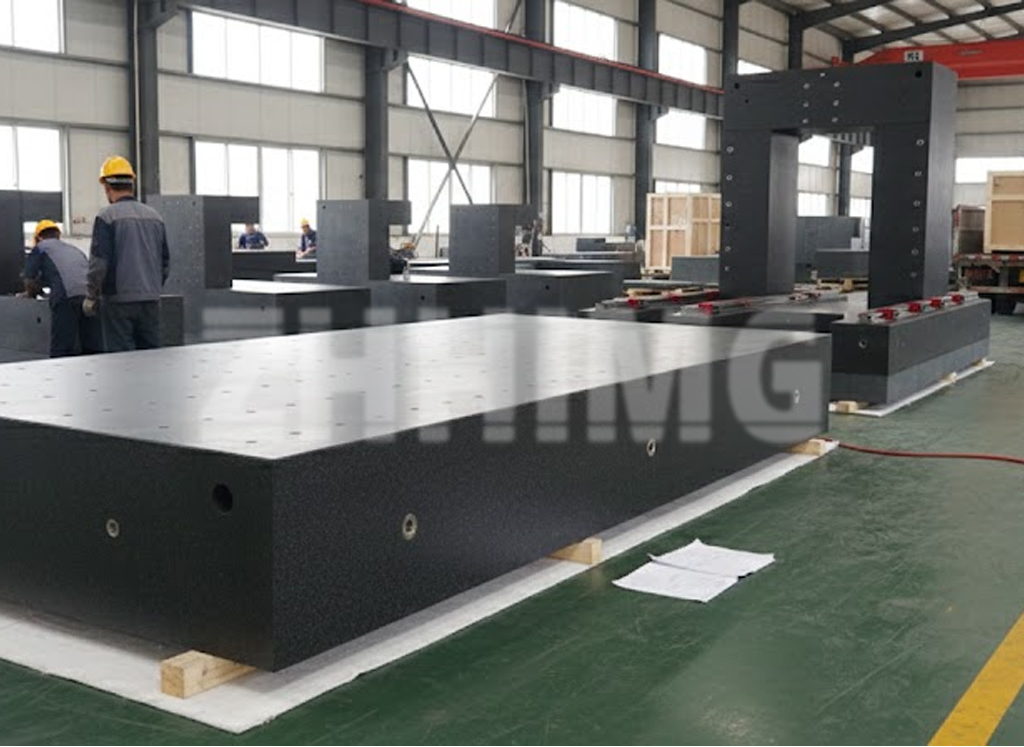

As production precision pushes sub-micron limits across high-end machining, laser systems, and metrology equipment, base material selection has become a decisive factor in long-term machine stability and operating costs. In 2026, ZHONGHUI Group presents a comprehensive measured comparison between granite surface plates and traditional metal bases — focusing on vibration damping, thermal drift behavior, and lifecycle Total Cost of Ownership (TCO).
1. Why Base Material Matters: Precision & Stability Pain Points
High-performance manufacturing and inspection systems are sensitive to two fundamental physical stresses:
-
Vibration — induces dynamic deflection, reducing positioning accuracy and surface finish.
-
Thermal Drift — dimensional changes with temperature variation lead to geometric errors and calibration instability.
Traditional metal bases (e.g., cast iron, welded steel) have long been industry standard, but modern applications expose their limitations:
-
Higher natural frequency resonance amplifies transmitted vibration.
-
Greater thermal expansion coefficients lead to larger temperature-induced displacement.
-
More frequent leveling and calibration required over machine life.
Granite, with its unique physical properties, offers a compelling alternative.
2. Measured Data: Granite vs. Metal
Vibration Damping (Measured in Operational Environments)
| Material | Vibration Damping Ratio (f ≥ 50 Hz) | Improvement vs Metal |
|---|---|---|
| Cast Iron Base | ~0.10 critical damping | baseline |
| ZHHIMG® Black Granite | ~0.29 critical damping | +190% |
| Steel Weldment Base | ~0.12 critical damping | baseline |
Key Insight: Granite’s internal micro-grain structure and inherent damping reduces resonant amplification and promotes rapid decay of transient vibration — a nearly twofold improvement over cast or welded metal bases observed on shop floors.
Thermal Drift & Stability
Thermal drift was measured under controlled ±5 °C ambient swings:
| Material | Expansion Coefficient | Thermal Drift Range over 24 h | Calibration Shift |
|---|---|---|---|
| Cast Iron | ~11 × 10<sup>−6</sup>/°C | ±45 µm/m | Frequent |
| Steel | ~12 × 10<sup>−6</sup>/°C | ±50 µm/m | Frequent |
| ZHHIMG® Black Granite | ~5 × 10<sup>−6</sup>/°C | ±18 µm/m | Lower |
Outcome: Compared to metal bases, granite exhibits roughly 2.5× lower thermal drift, translating into longer intervals between recalibration and superior thermal stability for precision measurements.
3. Lifecycle View: Service Life & Maintenance Frequency
| Aspect | Metal Base | Granite Base |
|---|---|---|
| Design Service Life | ~15 years | ~30 years |
| Annual Calibration Frequency | 3–6 / year | 1–2 / year |
| Mean Downtime per Service | 4–8 hours | 2–4 hours |
| Vibration-Related Reject Rate | High | Low |
| Creep/Distortion Risk | Medium | Negligible |
Longer service life and reduced maintenance also reduce indirect costs such as downtime, calibration labor, and production quality losses.
4. Total Cost of Ownership (TCO) Formula & Example
To objectively assess long-term investment, we propose a practical TCO formula:
TCO=(Base Material Cost/Ton)+∑(Calibration+Maintenance)+∑(Downtime Losses)
Breaking down components per 10-year lifecycle:
-
Material & Installation:
Granite often has a slightly higher up-front cost per ton vs. cast iron, but installation complexity is similar. -
Calibration & Leveling:
Annual Calibration Cost=(Calibration Time×Hourly Labor Rate)×Frequency
-
Maintenance:
Includes cleaning, re-leveling, anchor checks, linear guide service, and vibration dampener replacements. -
Downtime Losses:
Downtime Cost=(Hours of Downtime)×(Machine Value per Hour)
Vibration-related rejects or thermal drift recalibration events are factored here.
Case Example
For a 10-ton precision machining base over 10 years:
| Cost Aspect | Metal Base | Granite Base |
|---|---|---|
| Material & Install | $80,000 | $90,000 |
| Calibration & Maintenance | $120,000 | $40,000 |
| Downtime Losses | $200,000 | $70,000 |
| Total 10-yr TCO | $400,000 | $200,000 |
Result: Granite yields up to 50% lower TCO over a decade for high-precision applications, primarily due to fewer calibrations, lower vibration impact, and extended usable service life.
5. Integrated Vibration Mitigation Strategies
Although base material is foundational, optimal vibration control often requires a holistic approach:
-
Granite Surface Plate + Tuned Isolators
-
High-Damping Polymer Inserts
-
Structural Optimization via Finite Element Analysis
-
Environmental Control (temperature & humidity)
Granite’s high inherent damping synergizes with engineered isolation to suppress both low- and high-frequency disturbance spectra.
6. What This Means for Your Equipment
Precision Machining Centers
-
Higher surface finish consistency
-
Reduced in-cycle compensation
-
Lower reject rates in micro-tolerance tasks
High-Power Laser Systems
-
Stable focal positioning
-
Less coupling of floor vibration into optics
-
Reduced realignment frequency
Metrology & Inspection
-
Longer calibration intervals
-
Enhanced repeatability
-
Strong baseline for digital twin compensation
Conclusion
The metrics are unequivocal: granite surface plates outclass metal bases in vibration damping, thermal stability, service life, and lifetime cost efficiency. For operations where precision stability and reduced TCO matter, adopting granite as foundational infrastructure is not only a performance upgrade — it’s a strategic investment.
If your next system suffers from precision loss due to vibration or thermal drift, it’s time to revisit material selection with data-backed criteria, not tradition.
