In aerospace manufacturing, tolerances aren’t just tight—they’re mission-critical. A deviation of just 0.005 mm in a wing spar joint or turbine housing can compromise structural integrity, fuel efficiency, or even flight safety. That’s why leading aerospace parts factories rely on precision granite metrology tools as the backbone of their quality control workflows.
At ZHHIMG, we’ve partnered with Tier-1 suppliers to Boeing, Airbus, and COMAC to deliver granite-based inspection solutions that meet AS9100 and NADCAP standards. Here are the three indispensable granite measuring tools—and how they solve real-world aerospace challenges.
1. Granite Master Square: Ensuring Perfect 90° Alignment in Structural Assemblies
Application Case: A Chinese fuselage component manufacturer struggled with inconsistent perpendicularity in rib-to-skin joints, causing rework during final assembly. After integrating a Grade 00 Granite Master Square (accuracy ≤2 µm over 500 mm), inspectors could verify right-angle geometry directly on the shop floor—without moving parts to a CMM.
“Our first-pass yield improved by 18% within two months. The master square eliminated angular drift from steel squares that expanded under workshop lighting.”
— QA Manager, Chengdu Aerospace Fabrication Plant
Granite’s thermal stability and wear resistance ensure long-term master accuracy, making it ideal for calibrating digital probes, checking jig fixtures, or validating robotic welding paths.
2. Granite Straightedge (Flatness Reference): Validating Large-Scale Surface Integrity
Application Case: During the production of titanium wing spars (up to 3 meters long), surface waviness was undetectable by laser scanners due to reflective interference. By placing a 1500mm Grade AA Granite Straightedge along the spar and using feeler gauges or optical flats, technicians identified localized deformations as small as 3 µm—well below radar for conventional methods.
Granite straightedges provide a traceable flatness reference (per ISO 8512-2) that remains stable across shifts, seasons, and humidity changes—unlike cast iron or steel alternatives prone to warping.

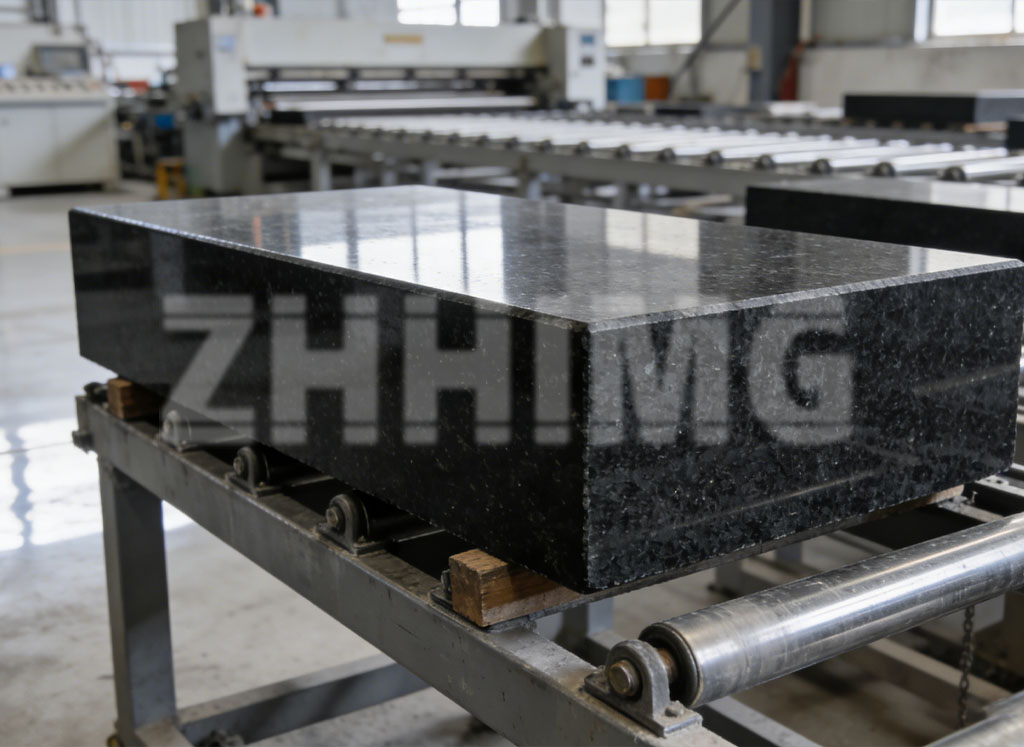

3. Granite Surface Plate + Angle Blocks: Multi-Axis Verification for Complex Geometries
While not a “tool” in the handheld sense, the granite surface plate serves as the foundational datum for all manual and semi-automated inspections. Paired with calibrated granite angle blocks or sine bars, it enables compound-angle checks on engine mounts, landing gear brackets, and actuator housings.
One European subcontractor reduced CMM backlog by 40% by shifting routine angular and flatness checks to a dedicated granite inspection station—freeing up high-cost coordinate machines for complex GD&T analysis.
Why Aerospace Chooses Granite Over Alternatives
- ✅ Zero hysteresis: No internal stress = no measurement drift
- ✅ Non-magnetic & non-conductive: Safe near sensitive avionics components
- ✅ Corrosion-resistant: Withstands coolants, hydraulic fluids, and cleaning agents
- ✅ Calibration longevity: Certified accuracy lasts 5–10 years with proper care
Ready to Elevate Your Aerospace QC Line?
ZHHIMG supplies custom-configured granite metrology kits tailored to aerospace workflows—including engraved calibration certificates, protective storage stands, and integration guides for AS9100-compliant documentation.
Special Offer for Aerospace Manufacturers (Q2 2026):
→ Free on-site application assessment
→ Complimentary NIST-traceable calibration for orders over $15,000
→ Lead time as short as 10 days for standard sizes
→ Free on-site application assessment
→ Complimentary NIST-traceable calibration for orders over $15,000
→ Lead time as short as 10 days for standard sizes
Contact us today—and build confidence into every micrometer.
ZHHIMG – Precision You Can Trust, Flight After Flight.
