3 Major Misconceptions Leading to Failure in Precision Metal Components: Failure Analysis from Medical Device OEMs and Solutions

In the high-stakes world of medical device manufacturing, a single component failure can mean the difference between successful patient outcomes and costly recalls, surgical revisions, or worse—life-threatening complications. Yet, despite decades of technological advancement, the same three misconceptions continue to plague precision metal component production, leading to preventable failures and significant financial losses.

Drawing from real-world failure analysis cases and industry best practices, this report identifies the critical misconceptions, their consequences, and proven solutions to help medical device manufacturers and precision metal machining facilities achieve reliability and excellence in component production.

Misconception #1: “Precision Machining is All About Equipment—Materials Don’t Matter That Much”

The Belief: Many procurement managers and even some engineers operate under the assumption that investing in the latest CNC technology or machining centers automatically guarantees precision part production. The thinking goes: “If we have a 5-axis machining center with micron-level positioning accuracy, we can machine any material to specification.”
Why This is Wrong: In reality, material selection and understanding material behavior under machining conditions account for over 60% of precision-related failures in medical metal components. The human body presents one of the most hostile environments for metal implants—constant cyclic loading, exposure to corrosive bodily fluids (pH 7.4, chloride-rich), and the immune system’s response to foreign materials.

Real-World Failure Case

Case: Orthopedic implant manufacturer faced premature fatigue failure of titanium alloy hip stems after only 2-3 years in service, far below the expected 15-20 year lifespan.
Root Cause Analysis:
  • Material: Ti-6Al-4V ELI (Extra Low Interstitial) titanium alloy
  • Failure Mode: Fatigue fracture initiated at micro-inclusions and localized corrosion pits
  • Contributing Factor: The selected alloy batch had oxygen content of 0.25% (vs. the maximum allowable 0.13% for ELI grade), making the material more brittle and susceptible to crack initiation
  • Processing Issue: During machining, inadequate cooling led to localized temperature spikes exceeding 200°C, causing microstructural changes and residual stress concentrations
Consequences:
  • Surgical revision procedures required for 47 patients
  • Estimated liability costs: $2.8 million
  • Regulatory scrutiny resulted in 18-month production halt
  • Reputation damage took 3 years to recover

The Material Science Reality

Key Property Considerations for Medical Implant Materials:
Material Fatigue Limit (MPa) Corrosion Rate (mm/year) Biocompatibility Typical Applications
316LVM Stainless Steel 240-280 <0.001 Excellent Temporary implants, surgical tools
Ti-6Al-4V ELI 500-600 <0.0001 Excellent Permanent implants (hip, knee)
CoCrMo Alloy 400-550 <0.0005 Excellent Joint replacements
Mg Alloys (Biodegradable) 100-150 0.2-0.5 (controlled) Good (biodegradable) Temporary fixation

Critical Factors Overlooked:

  1. Corrosion Fatigue Synergy: The combination of cyclic loading and corrosive environment accelerates failure by 3-5x compared to either factor alone. For implants, this means materials must resist both mechanical stress and chemical attack simultaneously.
  2. Surface Finish Requirements: For articulating surfaces (e.g., hip joints), surface roughness (Ra) must be <0.05 μm to minimize wear debris generation. Even high-quality machining without proper finishing can produce surface irregularities that accelerate wear.
  3. Heat Treatment Residual Stresses: Improper heat treatment can leave residual stresses of 200-400 MPa, which, combined with machining-induced stresses, create failure-prone stress concentrations.

Proven Solutions

Material Selection Framework:
  1. Application-Specific Material Matching:
    • Load-bearing permanent implants: Ti-6Al-4V ELI for optimal strength-to-weight ratio and corrosion resistance
    • High-wear articulating surfaces: CoCrMo alloys for superior wear resistance
    • Temporary fixation: Biodegradable Mg or Zn alloys with controlled degradation rates
    • Surgical instruments: 440C stainless steel for edge retention and sterilization resistance
  2. Rigorous Material Certification:
    • Require mill test certificates for every batch
    • Verify chemical composition within ±0.02% for critical elements
    • Conduct ultrasonic testing to detect internal inclusions
    • Perform metallographic examination to verify grain structure and phase distribution
  3. Machining Process Optimization:
    • Temperature-controlled machining: Maintain cutting zone temperature <150°C using high-pressure coolant systems (minimum 70 bar) for titanium alloys
    • Progressive finishing strategy: Rough machining → Semi-finishing → Finishing with gradually decreasing cutting depths (from 2.0mm to 0.02mm final pass)
    • Stress-relief operations: Implement vacuum stress relief at 650°C for titanium components after rough machining to eliminate residual stresses

Misconception #2: “Tighter Tolerances Always Mean Better Parts”

The Belief: Engineers and quality managers often assume that specifying the tightest possible tolerances ensures the highest quality part. The logic seems intuitive: “If we specify ±0.001mm instead of ±0.01mm, we’ll get a more precise part.”
Why This is Wrong: In precision machining, tighter tolerances do not automatically translate to better performance—especially in medical applications. In fact, over-specifying tolerances can increase failure rates by 30-40% due to unnecessary manufacturing complexity and increased inspection burden that distracts from truly critical dimensions.

Real-World Failure Case

Case: Dental implant manufacturer experienced unexpected high failure rates of implant abutments despite holding ±0.005mm tolerances on all features.
Root Cause Analysis:
  • Tolerance Mismatch: While overall dimensions were held to extremely tight tolerances, the critical mating surface (the implant-abutment interface) was specified at the same tolerance level as non-critical cosmetic surfaces
  • Measurement Focus: Quality resources concentrated on verifying ±0.005mm on all 32 dimensions, while insufficient sampling occurred on the 3 truly critical functional dimensions
  • Process Inconsistency: Different operators used different measurement strategies, with some prioritizing tight tolerances over surface integrity and finish quality
Consequences:
  • 27% higher failure rate compared to industry benchmarks
  • Excessive quality control costs ($450,000 annually) with no corresponding reliability improvement
  • Production delays due to false rejects (parts within functional limits but outside unnecessarily tight tolerances)

The Tolerance Engineering Reality

Critical Dimension Identification Framework:
Medical components typically have 3-5 truly critical dimensions that directly impact performance, while the remaining dimensions serve assembly or cosmetic purposes. Resources should be allocated accordingly:
Dimension Type Impact on Function Tolerance Strategy Inspection Frequency
Critical (Functional) Direct impact on performance, safety, biocompatibility Tightest tolerances justified 100% inspection
Semi-Critical (Assembly) Affects fit but not safety or performance Moderate tolerances Statistical process control (SPC)
Non-Critical (Cosmetic) No functional impact Loosest tolerances possible Sample inspection

Cost Implications of Over-Tolerancing:

For a typical medical implant component:
  • Baseline tolerances: ±0.025mm on all dimensions → $150/part manufacturing cost
  • Over-toleranced: ±0.005mm on all dimensions → $380/part manufacturing cost (153% increase)
  • Strategic tolerancing: ±0.005mm on 3 critical dimensions, ±0.025mm on others → $210/part manufacturing cost
Quality Inspection Burden:
  • Over-toleranced parts require 3-5x more inspection time
  • False reject rates increase from 2% to 12% when all dimensions are held to tight tolerances
  • Quality personnel spend 70% of time on non-critical dimensions

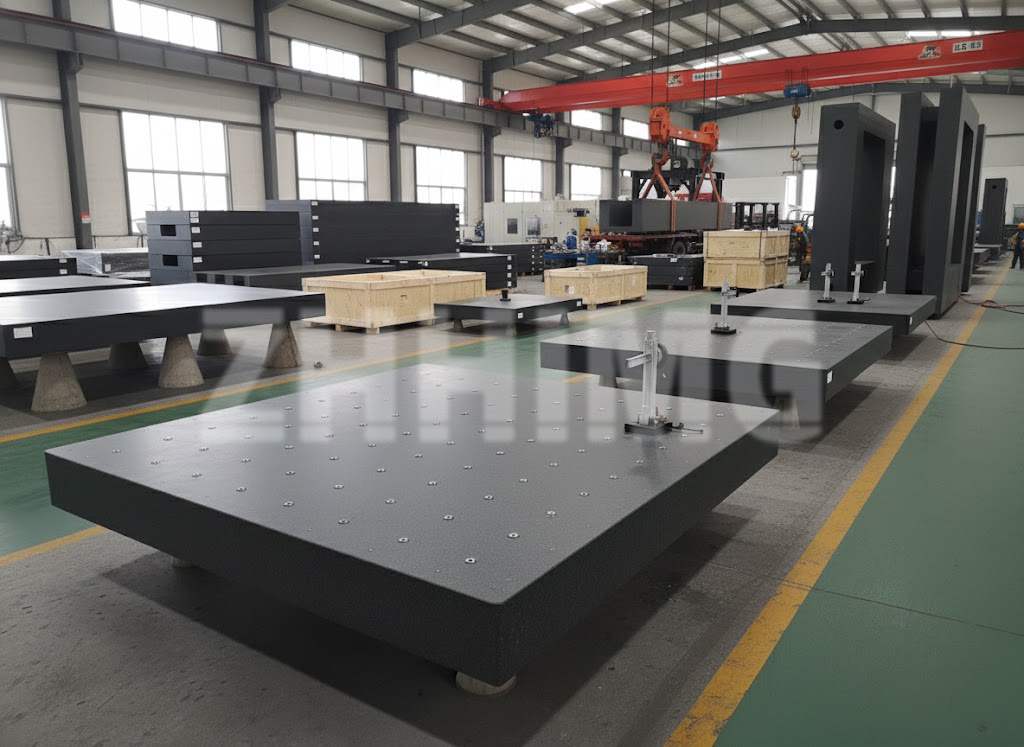

ceramic measuring instruments

Proven Solutions

Strategic Tolerancing Methodology:
  1. Functional Analysis & Criticality Assessment:
    • Conduct failure mode and effects analysis (FMEA) to identify dimensions whose variation could lead to failure
    • Prioritize dimensions based on severity of failure and probability of occurrence
    • Map critical dimensions to specific manufacturing processes and measurement capabilities
  2. Tolerance Stack-Up Analysis:
    • Perform statistical tolerance analysis (root sum square method) for assemblies rather than worst-case stack-up
    • Verify that assembly tolerances can be achieved without individual component tolerances being impractically tight
    • Consider assembly methods (selective assembly, shimming) that can compensate for component variation
  3. Measurement Resource Allocation:
    • Implement automated inspection for critical dimensions (CMM with laser scanning)
    • Use go/no-go gauges for high-volume semi-critical dimensions
    • Apply statistical process control for dimensions with consistent processes
  4. Tolerance Communication Standards:
    • Create dimension criticality drawings that clearly identify which dimensions require what level of control
    • Implement GD&T (Geometric Dimensioning and Tolerancing) standards for complex geometries
    • Train operators and inspectors on the rationale behind tolerance specifications

Misconception #3: “Quality Control Happens After Manufacturing—We’ll Inspect the Problems Away”

The Belief: Many manufacturing organizations treat quality control as a post-production activity. The mindset is: “Run the parts first, then inspect them. If there are problems, we’ll catch them and either rework or scrap them.”
Why This is Wrong: This reactive approach to quality is fundamentally flawed for precision medical components. 85% of quality defects are baked into parts during the manufacturing process itself and cannot be “inspected away.” Once a defect exists, the part is compromised regardless of whether it’s detected.

Real-World Failure Case

Case: Surgical instrument manufacturer faced a major recall after instruments were discovered to have inadequate surface passivation, leading to corrosion during sterilization cycles.
Root Cause Analysis:
  • Process Deviation: Passivation bath temperature drifted 15°C below specification for 2 weeks
  • Detection Failure: Quality inspections focused on dimensions and visual defects rather than surface chemistry and corrosion resistance
  • Reactive Mindset: When issues were suspected, production continued pending “more thorough inspection” rather than stopping to investigate the root cause
  • Compounded Error: Rejected parts were repassivated without proper surface reactivation, providing a false sense of security
Consequences:
  • Recall of 12,000 instruments across 3 product lines
  • Direct recall costs: $1.2 million
  • Hospital notification and replacement procedures: $800,000
  • Lost production during investigation: 6 weeks

The Quality Systems Reality

Preventive vs. Detective Quality Metrics:
Quality Approach Typical Defect Detection Rate Typical Cost of Poor Quality Implementation Cost
Reactive (Inspection-based) 60-70% 15-20% of sales revenue Low
Statistical Process Control 80-85% 8-12% of sales revenue Moderate
Real-Time Process Monitoring 92-95% 3-5% of sales revenue High
Predictive Quality (AI-enabled) 97-99% 1-2% of sales revenue Very High

Critical Quality Checkpoints During Manufacturing:

For medical metal components, quality must be monitored at specific process stages:
  1. Material Incoming:
    • Chemical composition verification
    • Mechanical property testing (tensile, hardness)
    • Non-destructive testing (ultrasonic, radiographic)
  2. During Machining:
    • In-process measurement of critical dimensions
    • Tool wear monitoring to detect degradation before dimensional errors occur
    • Cutting force monitoring to detect material inconsistencies or tool issues
    • Temperature monitoring of cutting zone and workpiece
  3. Post-Machining:
    • Surface finish measurement (Ra, Rz parameters)
    • Dimensional verification on all critical features
    • Residual stress measurement (X-ray diffraction for critical parts)
  4. Surface Treatment:
    • Passivation bath chemistry monitoring (pH, temperature, concentration)
    • Surface oxide layer verification (XPS or Auger analysis)
    • Coating thickness measurement for coated components
  5. Final Assembly:
    • Cleanliness verification (particle count for sterile applications)
    • Functional testing of moving assemblies
    • Sterilization cycle validation

Proven Solutions

Integrated Quality Management Framework:
  1. Real-Time Process Monitoring:
    • Implement IoT-enabled sensors on machining equipment to track cutting forces, temperatures, and vibration
    • Use machine learning algorithms to detect process drift before defects occur
    • Establish automatic process shut-downs when parameters exceed control limits
  2. Statistical Process Control (SPC):
    • Develop control charts for critical dimensions and process parameters
    • Train operators to interpret trend patterns and take corrective action preemptively
    • Implement process capability indices (Cpk, Ppk) with minimum thresholds (typically Cpk ≥ 1.33 for critical dimensions)
  3. Quality at the Source:
    • Design poka-yoke (mistake-proofing) features into fixtures and tooling
    • Implement error-proofing in CNC programs (coordinate system verification, tool length checks)
    • Establish operator qualification programs with certification requirements
  4. Closed-Loop Quality Feedback:
    • Create immediate feedback channels from quality to production
    • Conduct root cause analysis for every defect (not just major failures)
    • Implement process improvement projects based on quality data
  5. Supplier Quality Integration:
    • Extend quality system requirements to critical suppliers
    • Perform supplier audits focused on process capability, not just final inspection
    • Implement incoming material control with reduced inspection for qualified suppliers

Building a Culture of Reliability: Beyond Technical Solutions

While addressing these three misconceptions requires technical solutions, sustainable success demands organizational and cultural transformation. Medical device manufacturers and precision metal machining facilities must cultivate an environment where quality is designed into products rather than inspected into them.
Key Cultural Elements:
  1. Quality Ownership at All Levels:
    • From CNC operators to executive leadership, everyone must understand their role in quality
    • Implement quality metrics in performance evaluations for all roles
    • Recognize and reward quality improvement initiatives
  2. Data-Driven Decision Making:
    • Replace anecdotal evidence with statistical analysis
    • Invest in data infrastructure to collect and analyze quality data
    • Train personnel on basic statistical tools and data interpretation
  3. Continuous Learning Environment:
    • Conduct regular failure case studies from both internal and external sources
    • Create cross-functional teams to address quality challenges
    • Encourage open reporting of near-misses and process deviations
  4. Strategic Supplier Partnerships:
    • View suppliers as quality partners rather than transactional vendors
    • Share quality objectives and metrics with key suppliers
    • Collaborate on process improvements rather than demanding perfection through inspection

The ZHHIMG Advantage: Your Partner in Precision Metal Component Excellence

At ZHHIMG, we understand that medical device manufacturers face unique challenges in producing precision metal components that meet the highest standards of safety, reliability, and performance. Our expertise spans the entire spectrum from material selection through precision machining to quality assurance.
Our Comprehensive Capabilities:
Material Science & Engineering:
  • Expert guidance on optimal material selection for specific medical applications
  • Material certification and testing to verify compliance with stringent standards
  • Heat treatment and surface treatment optimization for enhanced performance
Precision Machining Excellence:
  • State-of-the-art CNC equipment with real-time monitoring capabilities
  • Process engineering expertise to optimize machining parameters for different materials
  • Progressive finishing strategies that balance precision with productivity
Quality Systems Leadership:
  • Integrated quality management from incoming materials through final inspection
  • Statistical process control implementation and training
  • Failure analysis capabilities to identify root causes and prevent recurrence
Regulatory Compliance Support:
  • FDA 21 CFR Part 820 quality system expertise
  • ISO 13485 medical device quality management system support
  • Documentation and traceability systems that satisfy regulatory requirements

Taking the Next Step: Transform Your Approach to Precision Metal Components

The three misconceptions outlined in this report represent not just technical misunderstandings but fundamental misalignments in how many organizations approach precision metal component manufacturing. Addressing these challenges requires both technical solutions and cultural transformation.
ZHHIMG invites medical device manufacturers and precision metal machining facilities to partner with us in achieving new levels of reliability and excellence. Our team of materials scientists, manufacturing engineers, and quality experts brings decades of experience in producing precision metal components for the most demanding applications.
Contact our engineering team today to discuss:
  • Your current challenges in precision metal component production
  • Material selection and optimization for your specific applications
  • Quality system enhancements to reduce defects and improve reliability
  • Strategic partnerships for high-value, custom precision manufacturing services
Don’t let misconceptions compromise your precision metal components. Partner with ZHHIMG to build a foundation of reliability, quality, and excellence that supports your success in the medical device marketplace.
Post time: Mar-17-2026
