In the high - stakes world of PCB (printed circuit board) manufacturing, the accuracy and reliability of drilling equipment are non - negotiable. A granite base is often the backbone of such precision machines, but not all options are created equal. To ensure your investment delivers long - term performance, here’s a guide to avoiding common pitfalls and selecting the ideal granite base, with a focus on ZHHIMG®’s trusted solutions.
1. Prioritize True Granite Over Marble Substitutes
The Pitfall: Some suppliers pass off marble or low - grade stone as "granite" to cut costs. Marble’s lower density (2,600–2,800 kg/m³) and higher porosity make it prone to vibrations and moisture damage, which can lead to drill bit wobble and inconsistent hole depths in PCBs.
The Solution: Insist on dense, true granite with a density of ~3,100 kg/m³, like ZHHIMG®’s black granite. Its interlocking mineral structure provides superior rigidity and vibration damping, ensuring stable drilling even at high speeds (200,000+ RPM). Always request material testing reports to verify composition and density.
The Solution: Insist on dense, true granite with a density of ~3,100 kg/m³, like ZHHIMG®’s black granite. Its interlocking mineral structure provides superior rigidity and vibration damping, ensuring stable drilling even at high speeds (200,000+ RPM). Always request material testing reports to verify composition and density.
2. Don’t Overlook Thermal Expansion Risks
The Pitfall: Poorly selected granite with a high thermal expansion coefficient (CTE) can expand or contract with temperature fluctuations, causing drill heads to drift off target. In PCB drilling, where hole placement tolerances are as tight as ±5 μm, even minor CTE variations (e.g., >8×10⁻⁶/℃) can lead to defective boards.
The Solution: Choose granite with a low CTE (4–6×10⁻⁶/℃), such as ZHHIMG®’s certified bases. Their thermal stability ensures minimal dimensional change in factory environments (20±2℃), maintaining drill alignment and reducing scrap rates. Look for suppliers who conduct thermal cycling tests to validate performance.
The Solution: Choose granite with a low CTE (4–6×10⁻⁶/℃), such as ZHHIMG®’s certified bases. Their thermal stability ensures minimal dimensional change in factory environments (20±2℃), maintaining drill alignment and reducing scrap rates. Look for suppliers who conduct thermal cycling tests to validate performance.
3. Demand Precision Machining for Critical Surfaces
The Pitfall: A rough or uneven granite surface can misalign the drill’s linear guides or spindle, leading to positional errors and burrs on drilled holes. Some manufacturers cut corners with subpar grinding, offering surface roughness (Ra) >1.6 μm or flatness >5 μm/m.
The Solution: Opt for bases with ultra - precision machining:
The Solution: Opt for bases with ultra - precision machining:
- Surface Roughness: Ra ≤ 0.2 μm (mirror - like finish)
- Flatness: ≤1 μm/m (measured via laser interferometry)
ZHHIMG® uses diamond grinding and automated inspection to achieve these standards, ensuring smooth, precise movement of drill heads and reducing tool wear by 30%+ compared to rough surfaces.
4. Beware of Underspec’d Load-Bearing Capability
The Pitfall: Lightweight or porous granite bases may sag under the weight of heavy drilling components (e.g., spindle motors, cooling systems), causing gradual misalignment over time. This is especially risky in multi - spindle machines with combined loads exceeding 500 kg.
The Solution: Select granite with a compressive strength ≥200 MPa and verify load - bearing specs for your specific equipment. ZHHIMG®’s bases are engineered to support up to 1,000 kg/m² without deformation, thanks to their dense microstructure and stress - relieved manufacturing process.
The Solution: Select granite with a compressive strength ≥200 MPa and verify load - bearing specs for your specific equipment. ZHHIMG®’s bases are engineered to support up to 1,000 kg/m² without deformation, thanks to their dense microstructure and stress - relieved manufacturing process.
5. Ignore Certification at Your Peril
The Pitfall: Uncertified granite bases may lack traceability or fail to meet industry standards for quality, safety, or environmental impact. This can lead to compliance issues in regulated markets (e.g., EU, US) and unexpected downtime due to material defects.
The Solution: Choose suppliers with ISO 9001 (quality), ISO 14001 (environmental), and CE certification, like ZHHIMG®. These credentials guarantee consistent material quality, eco - friendly processing (e.g., low - dust grinding), and adherence to international safety norms, minimizing risks in global supply chains.
The Solution: Choose suppliers with ISO 9001 (quality), ISO 14001 (environmental), and CE certification, like ZHHIMG®. These credentials guarantee consistent material quality, eco - friendly processing (e.g., low - dust grinding), and adherence to international safety norms, minimizing risks in global supply chains.
6. Avoid Vibration Transfer from Poor Damping Design
The Pitfall: Granite bases with hollow cores or inconsistent internal structure may fail to dampen high - frequency vibrations (200–500 Hz) generated by rapid drilling. This can cause "drill walk" (unintended movement) and micro - fractures in PCBs.
The Solution: Opt for solid - core granite with a damping ratio ≥0.05, which absorbs vibrations 10x faster than steel. ZHHIMG®’s one - piece milling and natural stone composition create a seamless, high - damping foundation, reducing vibration transmission to the drill by over 90%.
The Solution: Opt for solid - core granite with a damping ratio ≥0.05, which absorbs vibrations 10x faster than steel. ZHHIMG®’s one - piece milling and natural stone composition create a seamless, high - damping foundation, reducing vibration transmission to the drill by over 90%.
Why ZHHIMG® Granite Bases Stand Out
- Material Purity: Sourced from premium quarries, their black granite is free of voids or mineral inconsistencies.

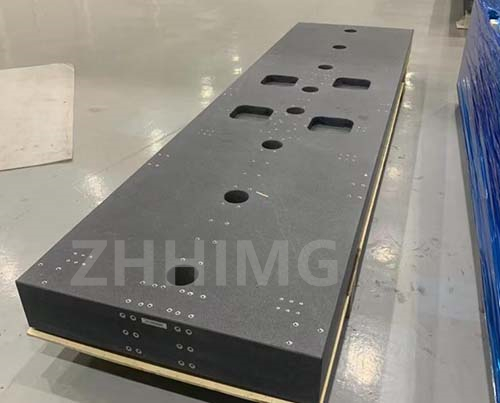

- Custom Engineering: Tailored to your PCB drill’s footprint, with pre - drilled holes and embedded steel bushings for precise component mounting.
- Long - Term Support: Backed by a 5 - year warranty and lifetime precision recalibration services, ensuring your investment remains productive for decades.
Conclusion: Invest in Stability, Not Headaches
Choosing the right granite base for your PCB drilling equipment is about balancing material science, machining precision, and certification compliance. By avoiding shortcuts and partnering with a trusted supplier like ZHHIMG®, you’ll secure a foundation that delivers consistent hole quality, reduces maintenance costs, and future - proofs your production line against evolving PCB technologies (e.g., HDI, IC substrates).
SEO Keywords to Boost Visibility:
PCB drilling equipment granite base, avoid marble substitutes in granite bases, low CTE granite for precision machining, ISO certified granite bases, vibration damping granite for PCBs, ZHHIMG® high - density granite
PCB drilling equipment granite base, avoid marble substitutes in granite bases, low CTE granite for precision machining, ISO certified granite bases, vibration damping granite for PCBs, ZHHIMG® high - density granite
Ready to elevate your PCB drilling precision? Contact ZHHIMG® today for a customized granite base solution designed to outperform expectations and eliminate common pitfalls.
