Granite surface plates are indispensable workhorses in precision measurement, serving critical roles in engineering inspection, instrument calibration, and dimensional verification across aerospace, automotive, and medical device manufacturing. Unlike ordinary granite furniture (e.g., tables, coffee tables), industrial-grade granite surface plates are crafted from high-quality Taishan Green granite (sourced from Taishan, Shandong Province) — often in Taishan Green or Green-White granular variants. Manufactured via either precision manual grinding or specialized CNC grinding machines, these plates deliver exceptional flatness, surface smoothness, and dimensional stability, adhering to strict industry standards (e.g., ISO 8512, ASME B89.3.1).
A key advantage of granite surface plates lies in their unique wear behavior: even if accidentally scratched during use, damage typically manifests as small, non-protruding dents rather than raised burrs — a critical feature that preserves measurement accuracy. However, preventing dents entirely is essential to maintaining long-term precision and avoiding costly re-calibration or replacement. This guide details the core causes of dents and actionable strategies to protect your granite surface plates, tailored for precision measurement manufacturers and quality control teams.
1. Core Advantages of Granite Surface Plates (Why They Outperform Other Materials)
Before addressing dent prevention, it’s critical to highlight why granite remains the top choice for precision applications — reinforcing its value for manufacturers investing in long-term measurement reliability:
- Superior density & uniformity: Granite’s high mineral density (2.6-2.7 g/cm³) and homogeneous structure ensure exceptional dimensional stability, outperforming metal or composite plates that may warp under stress.
- Wear & corrosion resistance: It resists abrasion from regular use and withstands exposure to mild acids, coolants, and industrial solvents — ideal for harsh workshop environments.
- Non-magnetic properties: Unlike steel plates, granite does not retain magnetism, eliminating interference with magnetic measuring tools (e.g., magnetic dial indicators, magnetic chucks).
- Minimal thermal expansion: With a thermal expansion coefficient of ~0.8×10⁻⁶/°C, granite is largely unaffected by temperature fluctuations, ensuring consistent measurements even in variable workshop conditions.
- Damage tolerance: As noted, minor scratches result in shallow dents (not raised edges), preventing false readings during flatness checks or workpiece inspection — a key differentiator from metal plates, where scratches can create protruding burrs.
2. Root Causes of Dents in Granite Surface Plates
To effectively prevent dents, first understand the primary triggers — most stem from improper handling, overload, or contact with hard/abrasive materials:
- Excessive localized weight: Placing heavy workpieces (exceeding the plate’s rated load) or applying concentrated pressure (e.g., clamping a heavy component at a single point) can compress granite’s crystalline structure, forming permanent dents.
- Impact from hard objects: Accidental collisions with metal tools (e.g., hammers, wrenches), workpiece fragments, or dropped calibration equipment transfer high impact force to the granite surface, creating deep dents or chips.
- Abrasive particle contamination: Metal shavings, emery dust, or sand trapped between the workpiece and plate surface act as abrasives during measurement. When pressure is applied (e.g., sliding a workpiece), these particles scratch the granite, evolving into small dents over time.
- Improper cleaning tools: Using rough scrub brushes, steel wool, or abrasive cleaners can abrade the polished surface, creating micro-dents that accumulate and degrade precision.
3. Step-by-Step Strategies to Prevent Dents
3.1 Strict Load Management (Avoid Overload & Concentrated Pressure)
- Adhere to rated load limits: Every granite surface plate has a specified maximum load (e.g., 500 kg/m² for standard plates, 1000 kg/m² for heavy-duty models). Confirm the plate’s load capacity before placing workpieces — never exceed it, even temporarily.
- Ensure uniform weight distribution: Use support blocks or spreader plates when placing irregularly shaped or heavy workpieces (e.g., large castings). This reduces localized pressure, preventing dents caused by point-loading.
- Avoid clamping with excessive force: When securing workpieces with clamps, use torque wrenches to control pressure. Over-tightening clamps can compress the granite surface at the clamp’s contact point, forming dents.
Key Note: For custom applications (e.g., oversized aerospace components), partner with manufacturers to design granite plates with reinforced load-bearing capacity — this eliminates the risk of overload-related dents.
3.2 Impact Protection (Prevent Collisions During Handling & Use)

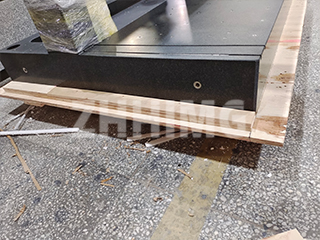

- Handle with care during transportation: Use padded lifting slings or vacuum lifters (not metal hooks) to move granite plates. Wrap the edges with foam anti-collision strips to absorb shocks if accidental bumps occur.
- Install workplace buffers: Attach rubber or polyurethane buffer pads to the edges of workbenches, machine tools, or nearby equipment — these act as a barrier if the plate or workpieces shift unexpectedly.
- Prohibit hard tool contact: Never place or drop hard metal tools (e.g., hammers, drills, caliper jaws) directly on the granite surface. Use dedicated tool trays or soft silicone mats to store tools near the plate.
3.3 Surface Maintenance (Prevent Abrasive Damage)
- Clean before and after use: Wipe the plate’s surface with a lint-free microfiber cloth dampened with a pH-neutral, non-abrasive cleaner (e.g., specialized granite surface cleaner). This removes metal shavings, coolant residues, or dust that could cause micro-dents during measurement.
- Avoid contact with abrasive materials: Never use the plate to scrape off dried coolant, weld spatter, or rust — these contain hard particles that scratch the surface. Instead, use a plastic scraper (not metal) to gently remove debris.
- Regular inspection for micro-dents: Use a precision straightedge or laser flatness tester to check for hidden micro-dents monthly. Early detection allows for professional polishing (by ISO-certified technicians) to repair minor damage before it impacts measurements.
4. Key Limitation to Address: Fragility
While granite surface plates excel at resisting dents (vs. protrusions), their biggest vulnerability is brittleness — heavy impacts (e.g., dropping a steel workpiece) can cause cracks or chips, not just dents. To mitigate this:
- Train operators on proper handling protocols (e.g., no running near workstations with granite plates).
- Use edge guards (made of reinforced rubber) on all plate corners to absorb impact.
- Store unused plates in dedicated, climate-controlled storage areas — avoid stacking plates or placing heavy objects on top of them.
Conclusion
Protecting granite surface plates from dents is not just about preserving their appearance — it’s about safeguarding the precision that drives your manufacturing quality. By following strict load management, impact protection, and surface maintenance protocols, you can extend your plate’s lifespan (often by 7+ years) and reduce calibration costs, ensuring compliance with ISO 8512 and ASME standards.
