In the rigorous world of high-precision manufacturing and metrology, the granite platform is the foundation upon which all accuracy is built. Yet, for many engineers designing custom fixtures and inspection stations, the requirements extend beyond a perfectly flat reference plane. They need permanent, high-accuracy coordinate lines or a precise grid etched directly onto the granite surface.
This is a frequently asked question for us at ZHONGHUI Group (ZHHIMG®). Our answer is a definitive Yes, surface markings are not only possible but often necessary for modern operational workflows, and advanced techniques allow us to achieve placement accuracy that perfectly complements the platform’s overall precision.
The Strategic Importance of Permanent Marking

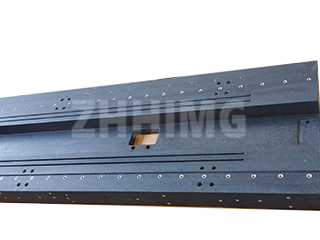

While standard granite surface plates are kept pristine—their sole purpose being the maintenance of a single, wear-free reference surface—custom granite machine bases and large metrology platforms benefit immensely from permanent features.
These markings serve as vital operational aids. They provide quick visual alignment for operators to rapidly place fixtures or position parts for initial inspection, drastically reducing setup time compared to aligning everything from the platform’s edges. For machines with dedicated functions, such as vision systems or high-speed dispensing robots, etched coordinate axes establish a permanent, durable zero-reference point that is resilient to repeated cleaning and daily wear.
Laser Etching: The Non-Contact Solution for Granite Integrity
The traditional method of physically scribing lines onto granite is counter-productive to precision, as it risks micro-chipping the material and compromising the surface flatness we work so hard to achieve through hand lapping.
To maintain the granite’s integrity while meeting modern accuracy demands, we exclusively utilize advanced, non-contact laser etching technology. Granite is an excellent material for this process due to its fine crystalline structure. A focused, high-energy laser beam alters the material’s top layer, permanently creating a high-contrast white or gray mark against the dark granite without introducing mechanical stress.
Understanding Marking Precision
The precision of these lines is crucial. The accuracy of the markings is fundamentally determined by the sophisticated positioning system of the laser etching machine. Industrial-grade laser systems mounted on our stable granite bases can achieve line placement accuracy typically in the range of tens of microns (e.g.,± 0.01 mm to ± 0.08 mm).
It is important for our clients to recognize the distinction between two different tolerances:
- Platform Flatness: The geometric tolerance achieved through lapping, which often reaches nanometer-level precision (e.g., Grade AA).
- Line Placement Accuracy: The positional tolerance of the etched line relative to a defined datum on the surface, typically measured in microns.
The etched lines are designed to be visual and coarse setup aids, not the final, absolute reference. The platform’s certified flatness remains the true, high-accuracy baseline for all critical measurements taken by metrology instruments resting on the surface.
When you partner with ZHHIMG®, we work closely with your engineering team to define the ideal layout—whether it’s a simple crosshair, an intricate grid, or specific datum lines—to ensure your custom platform enhances your operational efficiency without ever sacrificing the fundamental, certified accuracy of the surface.
