In the world of precision manufacturing, data is everything. But what if your data is wrong? For Quality Control Managers, the nightmare scenario isn’t a bad part leaving the factory—it’s rejecting a good part (or accepting a bad one) because of faulty measurement data.
As tolerances tighten to the micron level, the stability of your metrology lab setup is no longer a passive background detail; it is an active variable in your quality equation. In this article, we identify the most common inspection room errors and demonstrate why upgrading to high-grade granite solutions is the only way to guarantee precision measurement stability.
The Hidden Cost of Measurement Error
Measurement errors generally fall into two categories: random errors (noise) and systematic errors (bias). In a modern inspection room, these errors often stem from environmental and structural instabilities rather than the CMM (Coordinate Measuring Machine) itself.
1. Thermal Expansion: The Invisible Enemy
Steel and aluminum are the standard materials for machine structures, but they are thermally active.
- The Error: Even a temperature fluctuation of 1°C can cause significant expansion in metal scales and structures. This leads to “drift,” where a part measures differently at 9:00 AM compared to 4:00 PM.
- The Impact: False rejections of high-value components and inability to maintain process capability (Cpk) targets.
2. Vibration and “Floor Noise”
Inspection rooms are rarely perfectly isolated. Forklifts, HVAC systems, and nearby stamping presses send vibrations through the floor.
- The Error: These micro-vibrations are transferred to the measuring probe, causing signal noise. The machine may struggle to repeat a point, leading to “chatter” in the data.
- The Impact: Reduced repeatability and the inability to measure fine surface finishes or tight geometric tolerances.
3. Mechanical Hysteresis and Wear
Traditional metal frames rely on joints, welds, and bearings that wear over time.
- The Error: As the machine structure ages, it can develop “play” or hysteresis (a lag in response). The machine might not return to the exact zero point after a heavy move.
- The Impact: Long-term accuracy degradation, requiring frequent and costly recalibration.
The Granite Advantage: Engineering Stability
To eliminate these errors, top-tier metrology labs are moving away from all-metal structures and investing in precision granite components. Granite (specifically black granite like G684) offers physical properties that are chemically and physically superior for metrology.
Fixing Thermal Error: Low Coefficient of Expansion
Granite has a significantly lower coefficient of thermal expansion compared to steel or cast iron.
- The Solution: A granite base acts as a thermal anchor. It resists expansion and contraction, maintaining its geometry even if the room temperature fluctuates slightly. This ensures that your precision measurement stability remains consistent throughout the shift.
Fixing Vibration Error: Natural Damping
Granite is a non-metallic, crystalline material with exceptional damping properties.
- The Solution: It absorbs vibration roughly 10 times better than steel. By using a granite surface plate or base, you effectively filter out the “floor noise” before it reaches the sensitive probe, resulting in cleaner, more reliable data.
Fixing Wear Error: Hardness and Permanence
Granite is incredibly hard and chemically inert.
- The Solution: It does not rust, corrode, or gall. Once lapped to a precision flatness (e.g., Grade A or AA), a granite surface will maintain that flatness for decades. It provides a permanent, stress-free reference plane that welded steel frames simply cannot match.
Upgrading Your Metrology Lab Setup
If you are seeing inconsistent data or struggling with repeatability, the issue might not be your software—it might be your foundation.
Signs you need a Granite Upgrade:
- Drift: Measurements change based on the time of day.
- Noise: High standard deviation in repeatability studies (GR&R).
- Aging Equipment: Older CMMs with metal frames losing accuracy.

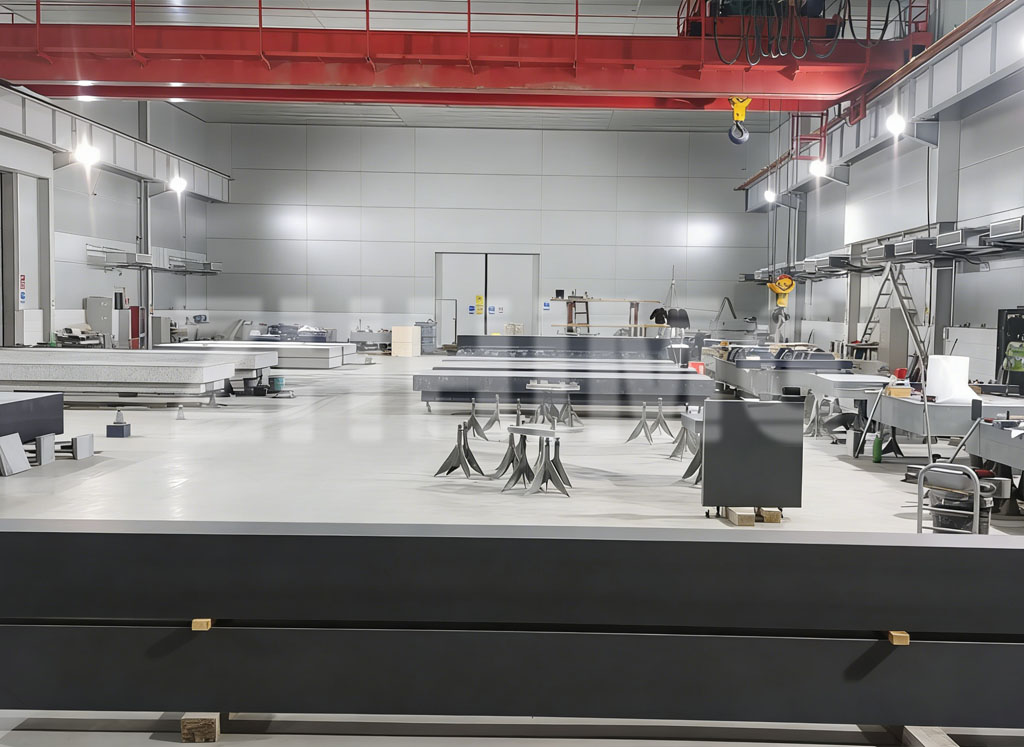

At ZHHIMG Group, we specialize in manufacturing high-precision granite bases, surface plates, and custom metrology fixtures. We help Quality Control Managers transform their inspection rooms from sources of error into pillars of precision.
Conclusion
