In the field of precision measurement, the choice of high-quality measuring tools directly affects the accuracy of industrial production and laboratory testing. As a core tool for perpendicularity detection, the granite square ruler has become an indispensable part of precision manufacturing with its excellent stability and high precision. This article will elaborate on its definition, uses, material characteristics and application scenarios, helping precision measurement manufacturers fully understand this essential tool.

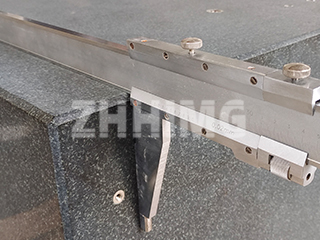

1. What Is a Granite Square Ruler?
A granite square ruler, also known as a granite right-angle ruler or precision right-angle guide in some industrial contexts, is a professional precision measuring instrument designed specifically for detecting the perpendicularity of workpieces and the relative vertical position between components. In addition to its core function of perpendicularity detection, it also serves as a reliable reference tool for marking and positioning during the machining process.
The main mineral composition of the granite square ruler includes pyroxene, plagioclase, a small amount of olivine, biotite and micro-magnetite, which gives it a characteristic dense black appearance and a structurally rigorous internal structure. What makes this material stand out is that it has undergone hundreds of millions of years of natural aging and crystallization. This long-term natural process ensures that the granite has extremely uniform texture, excellent dimensional stability, high mechanical strength and superior surface hardness. Even under high-load working conditions in industrial environments, it can still maintain its original high precision without obvious deformation, making it widely applicable in both industrial production sites and high-precision laboratory measurement scenarios.
2. What Are the Uses of Granite Square Rulers?
Granite square rulers are versatile precision tools that play a crucial role in multiple links of the precision manufacturing industry, with the following key applications:
- Detection and Metrology: As a standard reference for perpendicularity detection, it is used to verify the perpendicularity accuracy of key components of machine tools, mechanical equipment and precision workpieces. It can effectively identify deviations in the vertical direction, ensuring that the processed parts meet the design accuracy requirements.
- Marking and Positioning: In the machining and assembly process, it provides a precise right-angle reference for marking lines and positioning workpieces. This helps to ensure the consistency of the machining position of each part, reducing errors caused by inaccurate positioning.
- Equipment Installation and Industrial Engineering Construction: During the installation of precision machine tools, automated production lines and other equipment, it is used to adjust the verticality of the equipment base and components, ensuring the stable operation of the equipment and improving the overall production accuracy. In industrial engineering projects that require high perpendicularity, such as the installation of mechanical frames and precision pipelines, it also serves as an important detection and adjustment tool.
In the machinery industry, it is recognized as an essential measuring tool for perpendicularity detection, installation, machining positioning and marking of machine tools, mechanical equipment and their parts. Compared with traditional metal right-angle rulers, granite square rulers have significant advantages such as higher precision, better long-term stability, and easier maintenance. There is no need for regular anti-rust treatment, and the surface is not easy to wear, which greatly reduces the later maintenance cost.
3. What Is the Material of Granite Square Rulers?
The material of high-quality granite square rulers is mainly selected from high-grade natural granite, among which the well-known “Jinan Green” granite (a premium granite variety from Jinan, China, renowned for its excellent physical properties) is the preferred raw material. After strict material selection, the granite undergoes a series of sophisticated processing procedures, including mechanical cutting, grinding and manual fine polishing, to form the final granite square ruler product.
The material has the following outstanding characteristics:
- Excellent Mineral Composition: The main minerals are pyroxene and plagioclase, supplemented by a small amount of olivine, biotite and micro-magnetite. This composition forms a dense and uniform internal structure, which is the basis for its high hardness and stability.
- Natural Aging Advantages: After hundreds of millions of years of natural geological evolution, the internal stress of the granite has been fully released, and the texture has become extremely uniform. This eliminates the risk of internal deformation caused by residual stress, ensuring long-term dimensional stability of the product.
- Superior Physical Properties: It has high mechanical strength and surface hardness (usually reaching Mohs hardness level 6-7), which can resist the impact and wear in the use process. At the same time, it has good temperature stability, and the thermal expansion coefficient is much lower than that of metal materials, so the precision is not easily affected by the change of ambient temperature.
- Excellent Corrosion Resistance and Non-Magnetization: The material is resistant to rust, acid and alkali corrosion, and can be used in harsh industrial environments such as workshops with certain chemical atmospheres without being corroded. In addition, it is non-magnetic, which avoids the interference of magnetic force on precision measurement, making it more suitable for the detection of magnetic-sensitive workpieces and precision instruments.
4. What Are the Application Scenarios of Granite Square Rulers?
Granite square rulers are widely used in various scenarios that require high-precision perpendicularity measurement and reference, and their application scenarios are closely in line with the standards and actual needs of the precision measurement industry:
- Compliance with Precision Standards: It strictly complies with the flatness accuracy standard GB/T 6092-2009 and the perpendicularity accuracy standard GB/T 6092-2009 (the updated version of the original GB 6092-85), ensuring that its precision meets the international and domestic advanced measurement standards. This makes it a reliable tool for enterprises to carry out precision detection in line with industry norms.
- Structural Optimization for Practical Use: In order to improve the convenience of use, many granite square ruler products are designed with weight-reducing holes. These holes not only effectively reduce the overall weight of the ruler, making it easier for operators to carry and operate, but also do not affect the structural stability and measurement precision of the product. At the same time, the side tolerance of the standard granite square ruler is controlled within 0.02mm, which ensures the high precision of the side reference surface.
- Adaptability to Diverse Working Environments: It can maintain high precision under both high-load conditions (such as when used as a reference for heavy workpiece positioning) and general temperature environments (the temperature range is usually -20℃ to 40℃). This adaptability makes it suitable for a variety of industrial sites, including machine tool workshops, auto parts manufacturing plants, aerospace component processing workshops, as well as high-precision laboratories such as metrology laboratories and quality inspection centers.
- Key Application Fields: In the automotive manufacturing industry, it is used to detect the perpendicularity of engine cylinder blocks and transmission components; in the aerospace field, it is applied to the precision detection of aircraft structural parts and engine components; in the electronic equipment manufacturing industry, it helps to ensure the perpendicularity of precision circuit boards and component installation. In addition, it is also widely used in the maintenance and calibration of precision instruments, providing a standard reference for the calibration of other measuring tools.
