Granite vs Ceramic vs Mineral Casting: Best Materials for Precision Machine Structures

When selecting structural materials for ultra-precision machines, the choice directly impacts dimensional stability, thermal performance, vibration damping, and long-term accuracy. Three materials dominate modern precision engineering: natural granite, engineered ceramics, and mineral casting. Each offers unique advantages tailored to specific application requirements. This comprehensive analysis compares these materials across critical performance metrics to help engineers make informed decisions.

Material Origins and Composition

1. Natural Granite

• Formation: Sourced from deep underground rock formations that have undergone millions of years of natural geological processes
• Composition: Primarily quartz (20-40%), feldspar (40-60%), and mica (5-10%)
• Typical Grades: ZHHIMG® Black Granite (≈3100 kg/m³ density), Jinan Black Granite
• Natural Advantage: Inherent stress relief through geological aging, ensuring long-term dimensional stability

2. Engineered Ceramics

• Types: Aluminum Oxide (Al₂O₃), Silicon Carbide (SiC), Silicon Nitride (Si₃N₄)
• Production: High-temperature sintering of ultra-pure ceramic powders at 1200°C+
• Microstructure: Uniform, non-porous crystalline structure with tightly packed grains
• Key Properties: Extremely high hardness (8-9.5 Mohs), exceptional wear resistance

3. Mineral Casting (Artificial Granite)

• Composition: Granite aggregate + epoxy resin binder + additives
• Production: Low-pressure casting into molds under vibration compaction
• Customization: Variable aggregate size and resin content to adjust physical properties
• Typical Use: Machine bases with integrated cooling channels and mounting features

Performance Comparison

Thermal Stability

Granite Advantage: The natural stone exhibits superior thermal inertia, absorbing temperature changes slowly and maintaining geometric integrity during environmental fluctuations. This thermal stability is critical in metrology applications requiring consistent measurements over extended periods.

Mechanical Properties

Granite Strength: While not as hard as ceramics, granite provides an optimal balance of rigidity and damping capability. Its natural vibration absorption reduces machine chatter by up to 10 times compared to cast iron, directly improving surface finish and tool life.

Manufacturing Complexity

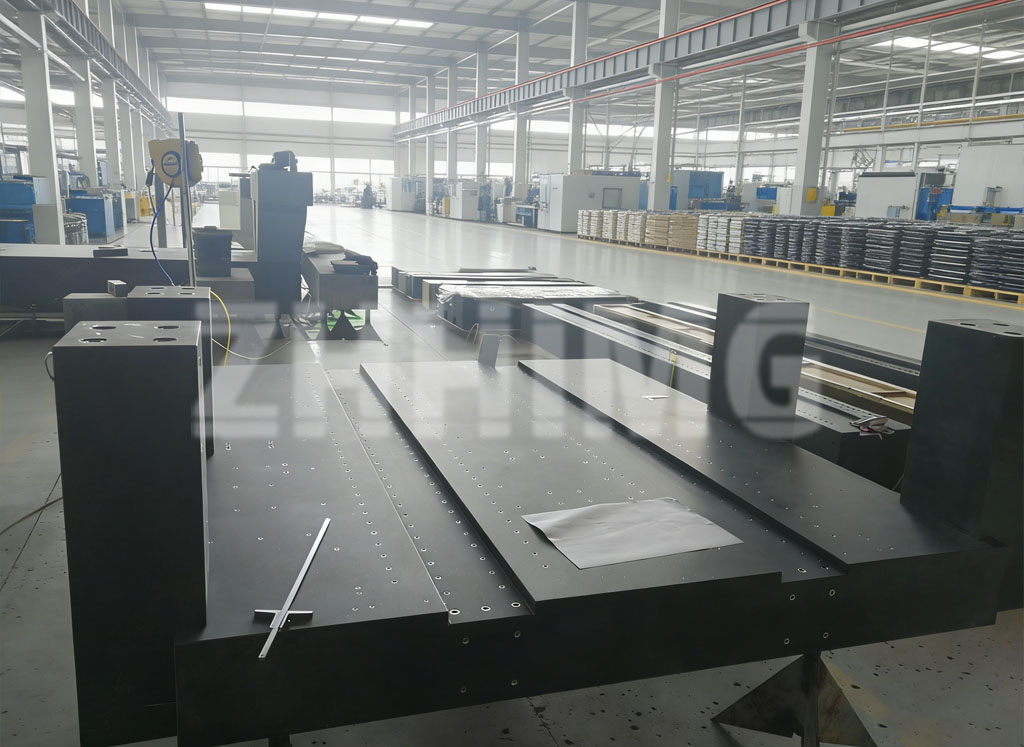

1. Granite Production
   • Process: Multi-stage machining with long natural aging periods (months to years)
   • Finishing: Manual lapping to achieve nanometer-level flatness (0.001mm precision)
   • Customization: Limited to dimensional shaping with integrated T-slots
   • Lead Time: 10-15 working days for standard components
2. Ceramic Manufacturing
   • Challenges: Requires specialized diamond grinding for precision surfaces
   • Tooling: High wear on cutting tools increases production costs
   • Size Limitation: Large components (>1000mm) face structural integrity risks
   • Cost: 2-5 times higher than granite for equivalent dimensions
3. Mineral Casting Production
   • Advantage: Near-net shape casting with integrated features
   • Complexity: Mold costs make low-volume production less economical
   • Time: 10-15 days curing period vs. immediate granite processing
   • Performance: Limited by epoxy resin mechanical properties at high temperatures (>60°C)

Application Recommendations

Precision Metrology (CMMs, Optical Systems)

• Why: Superior long-term dimensional stability with minimal creep deformation
• Examples: ZHHIMG® granite CMM bases maintain geometric accuracy for 10+ years
• Thermal Advantage: Uniform expansion characteristics ensure scale accuracy in changing environments

• Applications: Critical sub-micron positioning systems in semiconductor lithography
• Limitation: Brittle nature limits suitability for large structural components

High-Speed Machining Centers

• Why: Excellent vibration damping capabilities reduce spindle chatter
• Benefit: Integrated cooling channels control thermal deformation during extended operations
• Customization: Complex mold designs create multi-functional base structures

Cleanroom Environments

• Advantages: Naturally non-porous, corrosion-resistant, and dust-free
• Maintenance: Requires no oiling, avoiding contamination risks in semiconductor fabs
• Ceramic Alternative: Also suitable but significantly more expensive

Heavy-Duty Applications

• Compressive Strength: 3-5 times higher than mineral casting
• Real-World Use: 15-ton granite machine bases maintain accuracy under heavy cutting forces
• Ceramic Limitation: Brittle nature risks catastrophic failure under impact loading

Cost Analysis

Price Comparison (per unit volume)

Long-Term Cost Considerations

1. Granite Lifetime Costs
   • Initial Investment: Higher upfront cost
   • Maintenance: Very low (no surface treatments required)
   • Residual Value: High salvage value due to material longevity
   • Total Ownership: 2-3 times lower than ceramics over 10-year lifecycle
2. Ceramic Total Cost of Ownership
   • Risk Factor: 5-10% higher failure rate due to brittleness
   • Repair Cost: Replacement only (no viable repair options)
   • Economics: Only justified for applications where extreme hardness is critical
3. Mineral Casting Economics
   • Production Volume: Mold costs amortized over 100+ units
   • Large Scale: Cost-competitive with granite for mass production of standard designs

Technical Specifications

Typical Granite Platform Specs (ZHHIMG® Black Granite)

Density: 3100 kg/m³
Coefficient of Thermal Expansion: 6.5 × 10⁻⁶ /°C
Vibration Damping Ratio: 0.04
Flexural Strength: 24 MPa
Flatness Tolerance: 0.001mm/m (Grade 00)
Hardness: 6.8 Mohs
Porosity: <0.5%

Ceramic Material Properties (Alumina 99.5%)

Density: 3900 kg/m³
CTE: 7.2 × 10⁻⁶ /°C
Thermal Conductivity: 25 W/mK
Hardness: 9.0 Mohs
Compressive Strength: 2600 MPa
Flexural Strength: 350 MPa

Mineral Casting Performance Metrics

Density: 2300 kg/m³
CTE: 10.5 × 10⁻⁶ /°C
Vibration Damping Ratio: 0.06
Tensile Strength: 50 MPa
Maximum Operating Temperature: 80°C
Fire Resistance: Excellent

Real-World Applications

Granite Case Studies

1. Semiconductor Manufacturing
   • Application: Wafer inspection stage base
   • Results: Reduced thermal drift by 70% compared to steel alternatives
   • Precision: Maintained 0.5µm positional accuracy across wafer production cycles
2. Medical Imaging Equipment
   • Use: X-ray CT scanner gantry supports
   • Benefit: Non-magnetic properties eliminated image distortion in diagnostic equipment

Ceramic Applications

1. Optical Systems
   • Use: Mirror mounts for high-resolution telescopes
   • Advantage: Near-zero thermal expansion ensured critical alignment stability
2. High-Temperature Processes
   • Application: Heat treatment furnace fixtures
   • Benefit: Withstood 1200°C operating temperatures without deformation

Mineral Casting Success Stories

1. CNC Machine Tools
   • Implementation: Replaced cast iron bases for heavy-duty machining centers
   • Improvement: Reduced vibration-related tool wear by 35%
2. Laser Engraving Systems
   • Use: Stable platforms for high-precision material processing
   • Result: Improved engraving resolution by 20% through reduced substrate movement

Selection Guidelines

Decision Matrix

Recommended Applications by Material

Future Trends

Emerging Materials and Technologies

1. Hybrid Solutions
   • Granite-ceramic composites combining granite’s vibration damping with ceramic wear resistance
   • Mineral casting with phase-change material integration for advanced thermal management
2. AI-Assisted Material Selection
   • Machine learning algorithms optimizing material choice based on complex operational parameters
   • Real-time monitoring systems predicting material degradation before accuracy loss occurs
3. Sustainable Manufacturing
   • Reduced-carbon mineral casting production processes
   • Closed-loop recycling systems for granite waste materials

Conclusion
