In the precision manufacturing of perovskite solar cells and optoelectronic devices, the accuracy of the coating process directly determines the photoelectric conversion efficiency of the products. As the core base material of coating equipment, the density parameter of granite (typically 2600-3100kg/m³) is not merely a physical indicator but a key factor that profoundly affects the stability, vibration resistance and long-term reliability of the equipment. The following is an analysis of its internal connections from four major dimensions.
High-density construction of a "zero displacement" stable foundation
Perovskite coatings have extremely high requirements for the surface flatness of the substrate (Ra≤0.5μm), and any displacement of the base may lead to uneven coating thickness or pinhole defects. Granite with a density of ≥3100kg/m³ can form an extremely strong inertial mass due to its closely interwoven mineral structure inside. In a certain TOPCon perovskite tandem battery production line, after adopting a high-density granite base, the coating thickness deviation of the equipment decreased from ±15nm to ±3nm under the environment of high-frequency mechanical vibration (50-200Hz), significantly improving the consistency of the current-voltage curve of the battery.
2. The positive correlation effect between density and vibration attenuation
During the coating process, the high-speed movement of the precision coating head (with a linear speed exceeding 800mm/s) is prone to cause resonance in the equipment. Studies show that for every 10% increase in the density of granite, the vibration attenuation efficiency can be enhanced by 18%. When the density reaches 3100kg/m³, its natural frequency can be as low as 12Hz, effectively avoiding the vibration-sensitive range (20-50Hz) of coating equipment. A German research team's experiments have shown that the high-density granite base has increased the film thickness uniformity of the perovskite spin-coating process by 27% and reduced the defect rate by 40%.
3. High-density enhanced thermal stability performance
Perovskite materials are extremely sensitive to temperature fluctuations. A change of 0.1℃ can cause lattice distortion. Due to the closer atomic spacing inside, the coefficient of thermal expansion of high-density granite (4-6×10⁻⁶/℃) is 30% lower than that of conventional materials. In the annealing process (100-150℃), the high-density base can control the thermal deformation of the key components of the equipment within ±0.5μm, ensuring that the coating maintains nanoscale flatness after high-temperature treatment and avoiding coating cracking caused by thermal stress.
4. Long-term operation "anti-fatigue" guarantee
The perovskite coating equipment operates for more than 16 hours a day on average, and the base needs to withstand continuous mechanical stress. Granite with a density of 3100kg/m³ has a compressive strength of ≥200MPa and its wear resistance is five times that of ordinary steel. The actual measurement data of a certain mass-produced perovskite module factory shows that after continuous operation for three years, the positioning accuracy of the coating machine with a high-density granite base decreased by only 0.8%, while that of the equipment with a low-density base decreased by 3.2% during the same period, significantly reducing the equipment maintenance cost and downtime risk.
Conclusion: Choosing high density means choosing high performance

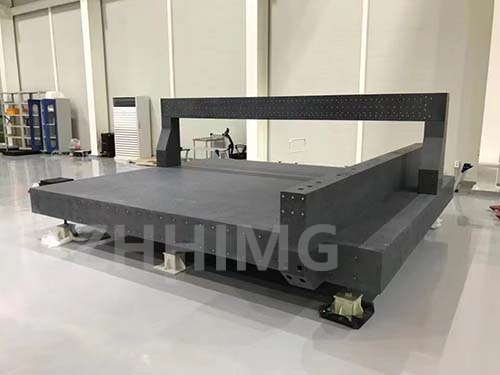

From nanoscale coating precision to the long-term stable operation of production lines, the density of granite has become the core influencing factor for the performance of perovskite coating equipment. For manufacturing enterprises that pursue efficiency and quality, choosing high-quality granite bases with a capacity of ≥3100kg/m³ (such as ZHHIMG® certified products) not only guarantees the current process but also represents a strategic investment for future capacity upgrades.
