In an age of digital twins, AI-driven inspection, and nanometer-scale sensors, it’s easy to assume that the future of metrology lies entirely in software and electronics. Yet step into any accredited calibration lab, aerospace quality control facility, or semiconductor equipment factory, and you’ll find something profoundly analog at the heart of precision: black granite. Not as a relic—but as a rigorously engineered, irreplaceable foundation. From shop-floor verification to national measurement standards, Granite Measuring remains not just relevant, but essential. And when off-the-shelf won’t suffice, Custom Granite Measuring solutions—and instruments like the Granite Master Square—deliver the tailored stability that modern manufacturing demands.
Granite’s dominance in metrology didn’t happen by accident. Formed over millions of years under immense heat and pressure, high-density black granite from Jinan, China—long recognized as the world’s premier source for metrology-grade stone—offers a rare combination of properties: extremely low coefficient of thermal expansion (typically 7–9 ppm/°C), excellent vibration damping, near-zero hysteresis, and exceptional long-term dimensional stability. Unlike cast iron, it doesn’t rust. Unlike steel, it doesn’t magnetize. And unlike composite materials, it doesn’t creep under load. These traits make it uniquely suited for applications where repeatability over years—not just days—is non-negotiable.
At the pinnacle of this tradition sits the Granite Master Square. Used as a primary reference artifact in ISO/IEC 17025–accredited labs, this instrument verifies perpendicularity in coordinate measuring machines (CMMs), optical comparators, machine tool spindles, and alignment jigs. A deviation of even 3 arc-seconds can introduce measurable error across large work envelopes—enough to compromise gear tooth profiles, turbine blade angles, or robotic arm kinematics. Precision-ground and hand-lapped to tolerances as tight as 0.001 mm (1 µm) over 300 mm, a true Granite Master Square isn’t mass-produced; it’s crafted through weeks of iterative grinding, polishing, and interferometric validation. Its six working surfaces—two reference faces, two edges, and two ends—are all held to strict geometric relationships, ensuring it functions not just as a square, but as a multi-axis reference standard.

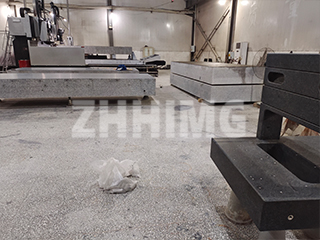

But not every application fits a catalog part. As machines grow larger, more complex, or more specialized—think industrial CT scanners, large-gear inspection systems, or custom robotic assembly cells—the need for Custom Granite Measuring components becomes unavoidable. Here, standard surface plates or squares simply won’t align with unique mounting geometries, sensor arrays, or motion envelopes. This is where engineering-grade granite transforms from commodity to bespoke solution. Manufacturers like ZHONGHUI INTELLIGENT MANUFACTURING (JINAN) GROUP CO., LTD (ZHHIMG) now offer fully customized granite bases, rails, cubes, and integrated measuring platforms machined to exact customer specifications—complete with tapped holes, T-slots, air-bearing pockets, or embedded fiducials—all while maintaining micron-level flatness and parallelism.
The process is far from simple. Custom granite begins with rigorous material selection: only blocks free of fissures, quartz veins, or internal stress are chosen. These are then aged for months to ensure internal stability before precision sawing. CNC machining follows, using diamond-tipped tools and coolant-controlled environments to minimize thermal distortion. Final lapping is often done by master artisans who “read” the surface with feeler gauges and optical flats, refining until the desired grade—whether JIS Grade 00, DIN 874 AA, or customer-specific—is achieved. The result is a monolithic structure that resists warping, absorbs vibration, and provides a thermally neutral platform for decades of use.
Why go through such effort when alternatives exist? Because in high-stakes industries, compromise isn’t an option. In aerospace, a wing spar inspection jig built on a custom granite base ensures consistent measurements across shifts and seasons. In powertrain manufacturing, a Granite Master Square validates gear housing perpendicularity to prevent noise, vibration, and premature wear. In calibration services, a custom granite measuring table with integrated V-blocks and height stands streamlines workflows while maintaining traceability.
Moreover, granite’s sustainability profile is increasingly compelling. Unlike polymer composites that degrade or metals that require protective coatings, granite lasts indefinitely with minimal maintenance—just regular cleaning and occasional recalibration. A well-cared-for granite surface plate can remain in service for 30+ years, making its lifetime cost far lower than frequent replacements of less stable materials.
Critically, Granite Measuring also bridges the gap between traditional craftsmanship and Industry 4.0. Modern granite bases are often designed with smart integration in mind: threaded inserts for sensor mounts, channels for cable routing, or QR-coded certification tags linked to digital calibration records. This fusion of ancient material and digital readiness ensures granite remains not just compatible with, but foundational to, the factories of tomorrow.
Of course, not all “granite” is equal. The market includes lower-grade stones marketed as “black granite” that lack the density or homogeneity required for true metrology. Buyers should always request material origin certificates (Jinan-sourced is preferred), flatness test reports, and compliance with international standards like ASME B89.3.7 or ISO 8512. Reputable suppliers provide full documentation—including CMM verification data and calibration certificates traceable to NIST, PTB, or NIM—ensuring confidence in every measurement.
So, is Custom Granite Measuring still the gold standard? The evidence speaks through its enduring presence in the world’s most demanding facilities. While new materials like ceramics and silicon carbide excel in specific niches, granite remains unmatched for large-format, multi-functional, and cost-effective precision platforms. It is the quiet backbone of quality—unseen by end users, but trusted by every engineer who knows that true accuracy starts with a stable foundation.
And as long as industries demand certainty in an uncertain world, granite will continue to bear the weight of precision.
ZHONGHUI INTELLIGENT MANUFACTURING (JINAN) GROUP CO., LTD (ZHHIMG) is a globally recognized leader in ultra-precision granite solutions, specializing in Granite Measuring, Custom Granite Measuring systems, and certified Granite Master Square artifacts for aerospace, automotive, energy, and metrology applications. With full in-house capabilities—from raw block selection to final calibration—and compliance with ISO 9001, ISO 14001, and CE standards, ZHHIMG delivers granite components trusted by top-tier manufacturers worldwide. Discover how we can engineer your next precision foundation at www.zhhimg.com.
