In the meticulous world of dimensional metrology, the reference surface is the absolute starting point for every quality check. For many applications, this essential foundation is provided by the granite measuring table with stand. Far from being a mere piece of furniture, this integrated system must function as a single, structurally sound unit, guaranteeing a consistently level and vibration-dampened environment necessary for verifying tolerances down to the sub-micron and nanometer levels.
The performance of a granite measuring table with stand hinges not only on the quality of the granite itself but also on the engineering integrity of the supporting structure and the isolation it provides from the shop floor environment. A weak stand can compromise the best granite plate, and an unstable granite plate can render any measurement meaningless.
The Engineered Advantage: Beyond the Surface Plate
While the high-density black precision granite—like ZHHIMG®’s proprietary material with a density of approximately 3100 kg/m³—provides the essential low thermal expansion and superior stiffness, the effectiveness of a granite measuring table with stand relies heavily on the design of the support system:
-

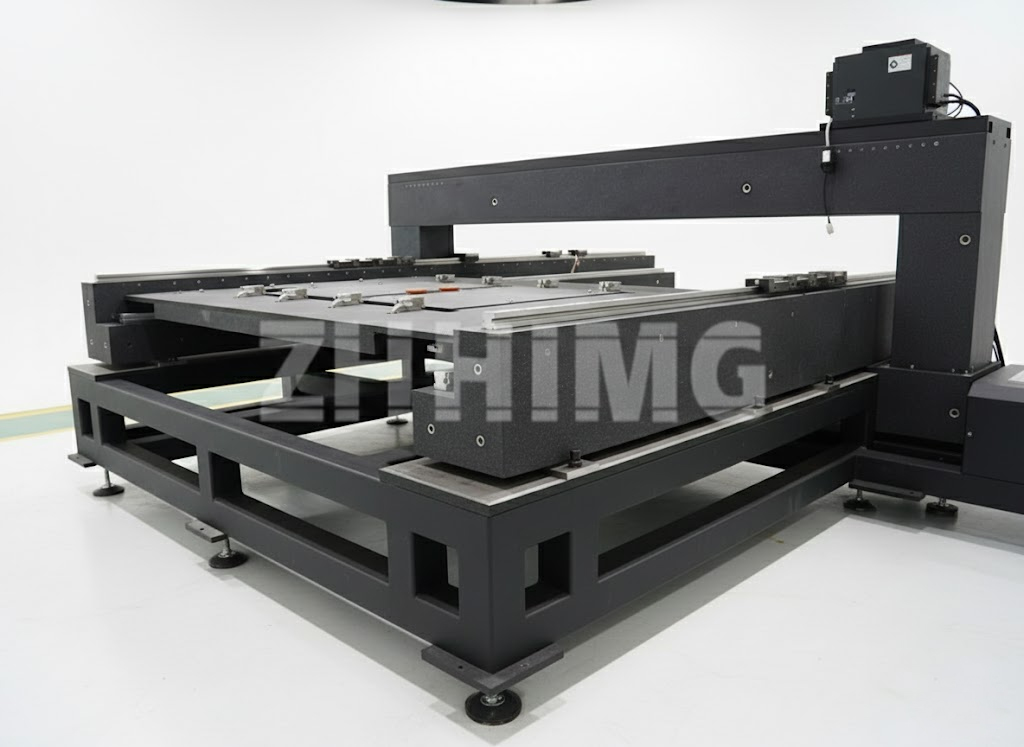

Structural Isolation: The purpose of the stand is twofold: to support the enormous weight of the granite plate without deflection, and to isolate it from external vibration. High-quality stands are typically constructed from heavy-gauge steel, often with welded, box-section designs to maximize stiffness.
-
Three-Point Support System: Professional metrology stands often utilize a three-point support system beneath the granite plate. This is geometrically superior to four points because three points define a plane perfectly, ensuring the load is distributed predictably and eliminating the risk of warping the plate due to uneven floor surfaces or stresses in the stand itself.
-
Leveling and Anchoring: The stand must incorporate precision leveling feet, allowing technicians to quickly and accurately level the granite surface using electronic levels. For heavy-duty applications, the stand may also feature anchoring points to secure it rigidly to the floor, further enhancing stability against large machine components or CMM gantries.
Granite Quality: The Core of the Measurement
The granite plate itself must adhere to the most rigorous international standards, such as DIN 876 or ASME B89.3.7, achieving grades as high as 0 or 00. The density of premium black granite ensures maximum vibration damping and dimensional stability, properties that are essential for accurate measurements.
The manufacturing process involves rough grinding, meticulous stress relief, and final lapping by master craftsmen in climate-controlled environments. Our technicians, known for their ability to achieve nanometer-level flatness, utilize advanced metrology equipment, including laser interferometers, to ensure that the flatness tolerance of the granite measuring table is verifiably accurate and traceable to national standards.
The Interplay: Granite and Stand as a System
In practice, the granite and the stand must be treated as one critical metrology system. For example, when a granite table is used for a height gauge inspection, the slightest vibration transferred from the floor or the minute thermal expansion of an inferior metal stand can instantly introduce measurement error.
By integrating the granite and the stand into a cohesive, vibration-damped unit, the system ensures that:
-
Repeatability is maximized, meaning the same measurement taken minutes apart will yield the same result.
-
Absolute Accuracy is maintained, as the flatness of the granite plate is protected from external forces.
This is especially crucial when the granite measuring table with stand is used to check the alignment of linear stages, verify the squareness of machine tools, or serve as the base for a high-accuracy, portable CMM system.
The dedication to quality extends to the environmental controls and calibration protocols used in the manufacturing process. Our facilities, equipped with thick, vibration-dampened floors and advanced atmospheric control, ensure that the precise tolerances are achieved and validated before the product leaves our facility. Furthermore, every system is delivered with full traceability documentation, providing the end-user with absolute confidence in their fundamental reference point.
Choosing a certified granite measuring table with stand is an investment that dictates the quality of every product that passes through your inspection department. Compromising on the stability and accuracy of this essential reference platform is simply not an option in today’s demanding manufacturing landscape.
