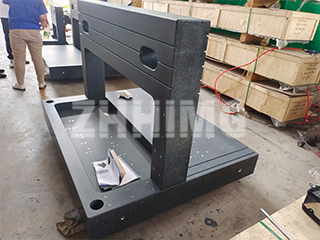

Key Considerations for Assembling Granite Gantry Bed Components

When assembling granite gantry bed components, precision and care are critical for ensuring the mechanical accuracy and long-term performance of the equipment. Below are the essential assembly tips and maintenance guidelines for granite gantry bed components to ensure optimal functionality and reliability.

1. Cleaning and Preparation of Components

Before assembly, thorough cleaning and degreasing of all parts are essential to ensure smooth assembly and reliable operation. The cleaning process should include:

• Removing residual casting sand, rust, and cutting debris from the parts.

• For important components, such as the gantry frame and internal cavities, apply anti-rust paint after cleaning.

• Use cleaning agents such as diesel, kerosene, or gasoline to remove oils, rust, or debris. Once cleaned, dry the components thoroughly using compressed air to prevent contamination during assembly.

2. Lubrication of Moving Parts

To ensure smooth operation, always apply lubricants to the mating surfaces before assembly. Lubrication is especially important for components such as:

• Bearings within the spindle box.

• Lead screw and nut components in the elevation mechanism.

Proper lubrication reduces friction, wear, and ensures the longevity of the moving parts.

3. Precise Fitting of Components

Accurate fitment of mating components is essential for the proper functioning of the gantry bed. The fitting dimensions of parts should be checked carefully, with repeated checks or random inspections during assembly. Key areas to check include:

• The shaft and bearing fit.

• The bearing hole in the spindle box and its center distance.

Ensuring that all parts fit together properly prevents any misalignment or errors during operation.

4. Wheel Assembly

When assembling gears or wheels, ensure that:

• The centerline of the gear axis is aligned in the same plane.

• The gears must be parallel and have a normal clearance between teeth.

• Axial displacement should not exceed 2mm to avoid uneven wear and operational issues.

Proper wheel assembly is critical to ensure efficient and smooth operation.

5. Connection Surface Inspection

Before connecting parts, it is essential to inspect the mating surfaces for flatness and lack of deformation. If any irregularities are found:

• Repair or adjust the surface to ensure it is smooth and even.

• Remove any burrs and ensure that the connecting surfaces are tightly fitted and free from any misalignment.

A proper fit will ensure the components work together efficiently and prevent any mechanical failure.

6. Sealing Components

Proper installation of seals is crucial to prevent leakage and protect sensitive internal parts. When installing seals:

• Ensure they are pressed evenly into the sealing groove.

• Avoid any twisting, deformation, or damage to the sealing surfaces.

Seals that are installed correctly will improve the longevity and performance of the equipment by preventing contaminants from entering critical areas.

7. Pulley and Belt Assembly

For pulley assembly, ensure the following:

• The axles of the pulleys should be parallel.

• The groove centers of the pulleys must be aligned, as any misalignment will cause uneven tension in the belt, which could lead to slipping or accelerated wear.

• When assembling V-belts, ensure they are matched in length to avoid vibration during operation.

Proper pulley and belt assembly ensures a smooth and efficient power transmission system.

Why Choose High-Quality Granite Gantry Bed Components?

• Precision Engineering: Granite gantry beds are designed for maximum accuracy in machining and measurement applications.

• Durability: Granite components offer long-lasting durability and high resistance to wear and corrosion.

• Custom Solutions: We offer tailored solutions to meet your specific machinery and operational needs.

• Reduced Maintenance Costs: Properly assembled and well-maintained granite gantry beds require less frequent repairs, resulting in cost savings over time.

By following these assembly guidelines and ensuring high-quality material selection and assembly techniques, you can maximize the performance and accuracy of your granite gantry bed components, enhancing both operational efficiency and lifespan.
