Mineral Casting vs Granite Base: High-Precision Machine Tool Structure Selection Guide (Cost Analysis Included)

In the world of high-precision CNC manufacturing, the foundation beneath your machine determines everything—accuracy, stability, vibration damping, and ultimately, the quality of parts produced. For decades, granite has been the gold standard for machine bases and precision platforms. However, mineral casting (also known as polymer concrete or epoxy granite) has emerged as a compelling alternative, challenging traditional material choices.

Understanding the Two Contenders

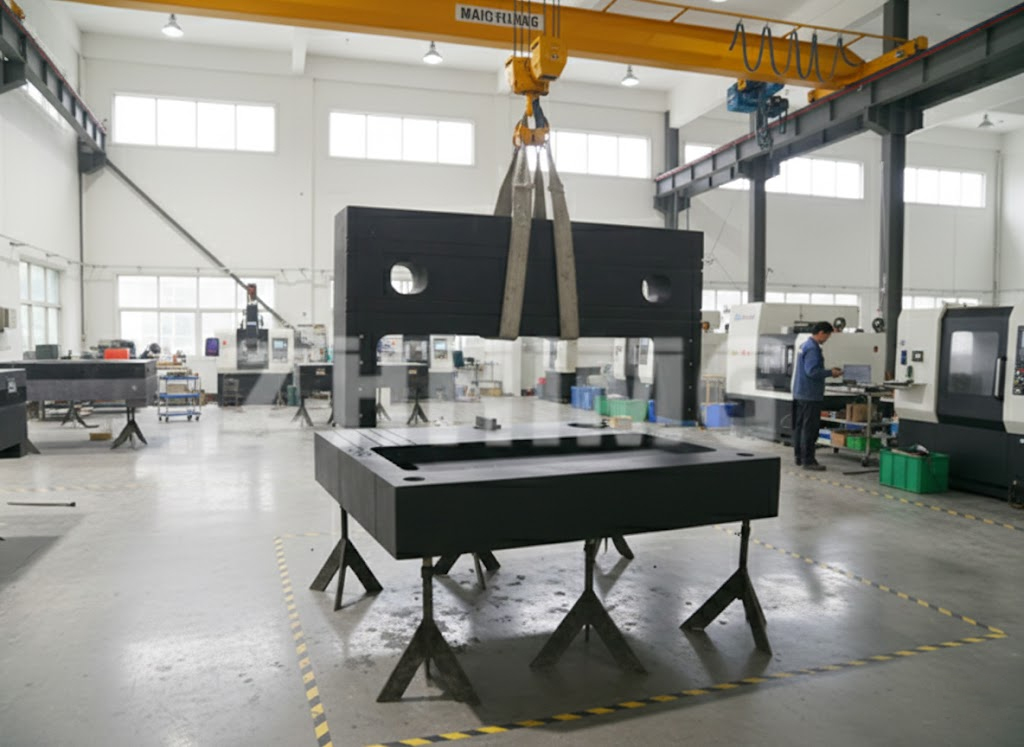

What Is Granite for Machine Bases?

• Density: ~3100 kg/m³
• Compressive strength: 200-300 MPa
• Thermal expansion coefficient: 5.5 × 10⁻⁶/°C
• Hardness: Mohs 6-7

What Is Mineral Casting?

• Density: 2200-2500 kg/m³ (lighter than granite)
• Vibration damping capacity: 10-15 times higher than cast iron
• Thermal insulation properties
• Near-zero internal stress after curing

Performance Comparison: Structural Characteristics

1. Dimensional Stability and Thermal Behavior

• Natural Aging Advantage: Granite’s geological formation over millions of years ensures zero internal material tension, providing long-term dimensional stability without deformation.
• Low Thermal Expansion: At 5.5 × 10⁻⁶/°C, granite expands only half as much as steel and one-fourth as much as aluminum under temperature changes. This makes it ideal for temperature-sensitive applications.
• Thermal Mass: High density provides excellent thermal inertia, resisting rapid temperature fluctuations in the machining environment.

• Engineered Stability: While mineral casting can be formulated for minimal thermal expansion, the resin component introduces potential long-term dimensional drift under varying temperature and humidity conditions.
• Thermal Insulation: Lower thermal conductivity can be advantageous for isolating machines from ambient temperature changes, but may also trap heat generated during machining operations.
• Aging Requirements: Proper curing and post-curing aging periods are essential to achieve dimensional stability, typically requiring 4-8 weeks after initial casting.

2. Vibration Damping and Dynamic Performance

• Natural Damping: Granite’s crystalline structure provides excellent vibration absorption, approximately 3-5 times better than cast iron.
• High Mass: The substantial weight of granite bases contributes to stability by resisting external vibrations and providing inertia against machine movement forces.
• Frequency Response: Granite effectively dampens vibrations across a broad frequency spectrum, making it suitable for both roughing and finishing operations.

• Superior Damping: Mineral casting exhibits vibration damping capacity 10-15 times higher than cast iron and 2-3 times better than granite, making it exceptional for high-speed machining applications.
• Frequency Tuning: The composite nature allows engineers to tailor the material’s dynamic properties by adjusting aggregate size, resin content, and filler ratios.
• Reduced Chatter: Enhanced damping significantly reduces tool chatter during machining, improving surface finish and tool life.

3. Mechanical Strength and Wear Resistance

• Exceptional Hardness: Mohs hardness of 6-7 provides excellent wear resistance, ensuring the working surface maintains precision over decades of use.
• Impact Sensitivity: While granite excels in compressive strength (200-300 MPa), it is relatively brittle and vulnerable to tensile stress and sudden impacts.
• Surface Durability: Fine-grained structure resists abrasion, with typical surface roughness Ra ≤ 0.4 μm after precision lapping.

• Customizable Strength: Mechanical properties can be engineered by varying the resin-to-aggregate ratio. Typical compressive strength ranges from 80-150 MPa.
• Toughness: The polymer matrix provides better impact resistance than granite, reducing the risk of cracking during transportation or operation.
• Surface Treatments: Working surfaces often require additional treatments (such as epoxy coatings or metal inserts) to achieve the required hardness and precision.

4. Chemical and Environmental Resistance

• Natural Inertness: Impervious to most acids, alkalis, and industrial solvents, making it ideal for harsh manufacturing environments.
• Non-Magnetic: Does not interfere with magnetic measuring tools or magnetic workholding systems.
• Moisture Resistance: When properly sealed, granite resists moisture penetration, though prolonged exposure to high humidity (>60%) may cause slight dimensional changes.

• Chemical Sensitivity: The polymer resin component can be susceptible to certain solvents and oils, potentially causing degradation or swelling over time.
• Moisture Absorption: Can absorb small amounts of moisture (0.1-0.3% by weight), potentially affecting dimensional stability in humid environments.
• Sealing Required: Protective coatings or sealants are often necessary to prevent chemical attack and moisture absorption.

Cost Analysis: Investment Considerations

Initial Material Costs

• Granite: Higher initial material costs due to the scarcity of premium-grade black granite with consistent properties. However, no mold investment is required for standard plate geometries.
• Mineral Casting: Lower raw material costs, but significant upfront investment in molds (typically $10,000-$50,000+ depending on complexity). This high tooling cost is amortized across production volume.

Manufacturing and Processing Costs

• Machining Time: Diamond grinding and hand lapping are labor-intensive processes, requiring 20-40 hours for precision finishing on medium-sized bases.
• Equipment Investment: Specialized CNC grinding machines with diamond tooling represent significant capital investment (typically $500,000-$2 million+).
• Labor Intensity: Hand finishing by skilled technicians adds considerable cost but ensures exceptional precision.

• Casting Process: Relatively fast casting times (4-8 hours for initial cure), but requires controlled temperature and humidity environments.
• Machining Requirements: Often requires less machining than granite as complex geometries can be cast directly into the mold. However, precision surfaces still need grinding or lapping.
• Labor Efficiency: Less dependent on highly skilled manual labor after mold development, leading to more consistent quality across production batches.

• Low Volume (<10 units): Granite typically more cost-effective due to minimal tooling requirements
• Medium Volume (10-100 units): Mineral casting becomes competitive as mold costs are amortized
• High Volume (>100 units): Mineral casting offers significant cost advantages per unit

Manufacturing Cycle Analysis: Lead Time Considerations

Granite Manufacturing Timeline

• Natural variability in granite may require additional time to select blocks with optimal properties
• Hand finishing introduces human factors that can affect delivery consistency
• Larger or more complex geometries significantly extend lead times

Mineral Casting Manufacturing Timeline

• Significant upfront investment in mold development impacts initial delivery
• Repeat orders benefit from much shorter lead times (no mold fabrication required)
• Casting process allows integration of features (mounting points, coolant channels) that would require additional machining in granite

Application-Specific Recommendations

When to Choose Granite Bases

1. Ultra-Precision CMMs and Measuring Machines: Where absolute dimensional stability and surface precision are non-negotiable
2. Temperature-Varying Environments: Facilities without stringent climate control where thermal expansion characteristics are critical
3. High-Wear Surface Applications: Where the working surface undergoes frequent contact with workpieces and fixtures
4. Chemically Harsh Environments: Exposure to cutting fluids, coolants, or cleaning agents that could degrade polymer-based materials
5. Low-to-Medium Production Volume: Prototyping, custom machine builds, or limited production runs where mold investment cannot be justified

• Proven long-term reliability across decades of industrial use
• Superior thermal stability and low expansion
• Exceptional surface hardness and wear resistance
• Lower upfront investment for custom designs
• Natural resistance to chemical and environmental degradation

When to Choose Mineral Casting Bases

1. High-Speed Machining Centers: Where vibration damping is critical for surface finish and tool life
2. High-Volume Production: Economies of scale make mineral casting cost-effective beyond 50-100 units
3. Complex Geometries: Integrated features such as coolant channels, mounting bosses, and structural reinforcements can be cast directly
4. Weight-Sensitive Applications: Lower density reduces overall machine weight, potentially simplifying installation and foundation requirements
5. Controlled Environments: Climate-controlled facilities where temperature and humidity variations are minimized

• Superior vibration damping for high-speed applications
• Complex geometries can be cast without extensive machining
• Lower per-unit cost at high production volumes
• Better impact resistance during transportation and handling
• Design flexibility for integrated features

Decision Matrix: Quick Selection Guide

• 5 = Excellent/Critical Advantage
• 4 = Good Advantage
• 3 = Adequate/Moderate
• 2 = Limited Disadvantage
• 1 = Significant Disadvantage

Making the Final Decision: A Procurement Checklist

Technical Requirements Checklist

•  What is the required positioning accuracy and surface finish?
•  What are the operating speed ranges and cutting forces?
•  What is the temperature stability of the installation environment?
•  Are there chemical exposure considerations (coolants, cleaning agents)?
•  What are the weight limitations for installation and foundation?

Economic Analysis Checklist

•  What is the anticipated production volume over the machine’s lifespan?
•  What is the budget for tooling and molds?
•  What are the target lead times for initial and repeat orders?
•  What is the expected service life and maintenance cost?
•  Are there regulatory or certification requirements specific to the application?

Supply Chain Considerations

•  What is the supplier’s experience with the chosen material?
•  What quality assurance and certification processes are in place?
•  What is the geographic proximity and logistics capability?
•  What technical support and after-sales services are available?
•  Are there long-term supply agreements or inventory considerations?

ZHHIMG’s Position: Precision Without Compromise

Our Granite Capabilities

• Premium ZHHIMG® Black Granite: Sourced from the finest quarries with <0.1% impurity content
• Precision Manufacturing: CNC grinding (±0.5 μm) and hand-lapping (Ra ≤ 0.2 μm)
• Custom Dimensions: Sizes from 300×300 mm to 3000×2000 mm and beyond
• ISO 17025 Accredited Calibration: Traceable precision verification

Our Mineral Casting Capabilities

• Engineered Formulations: Custom resin-to-aggregate ratios for optimal performance
• Complex Mold Fabrication: In-house mold design and production capabilities
• Integrated Feature Casting: Incorporate mounting points, channels, and reinforcements directly into the cast
• High-Volume Production: Scalable manufacturing for consistent quality across large batches

Our Value Proposition

• Application-First Approach: We analyze your technical requirements before recommending materials
• Turnkey Solutions: From design consultation through manufacturing, installation, and ongoing support
• Quality Assurance: Comprehensive testing, calibration, and certification for every product
• Global Support: Service across Europe, North America, and Asia with ISO 9001, ISO 14001, and ISO 45001 certification

Conclusion: The Right Material for the Right Application

• Long-term dimensional stability is paramount
• Operating environments have temperature variations
• Low-to-medium production volumes cannot justify mold investment
• Chemical resistance and surface wear are critical factors

• High-speed machining requires maximum vibration damping
• High production volumes amortize mold investment effectively
• Complex geometries benefit from casting capabilities
• Weight reduction is a priority for installation or mobility
