In high-precision industries such as semiconductor manufacturing, laser systems, large-format inspection equipment, and precision automation, granite bases are often the structural backbone of the entire machine. These components must deliver exceptional rigidity, vibration damping, and long-term dimensional stability.
However, when a project requires a custom large-scale granite base, many equipment manufacturers assume the same thing: customization means long lead times.
In reality, with the right engineering capability and production infrastructure, custom granite components can be manufactured far faster than expected.
Recently, ZHHIMG successfully completed a large-scale custom granite base project measuring nearly 30 meters in total length—delivered in just 15 days. This project demonstrates how advanced manufacturing and efficient coordination can break the traditional “custom equals slow” myth.
The Challenge: A Large Granite Base with an Urgent Deadline
A global equipment manufacturer contacted ZHHIMG with an urgent requirement:
-
A custom large granite base for a high-precision industrial system
-
Total assembled length approaching 30 meters
-
Multiple precision mating surfaces and mounting features
-
Tight flatness and dimensional tolerances
-
Delivery required within two weeks
For many suppliers, such a request would require several months of lead time due to the scale, precision machining, and logistical complexity involved.
But for industries where project timelines are critical, waiting months is simply not an option.
Engineering the Solution: Modular Large-Scale Granite Structures

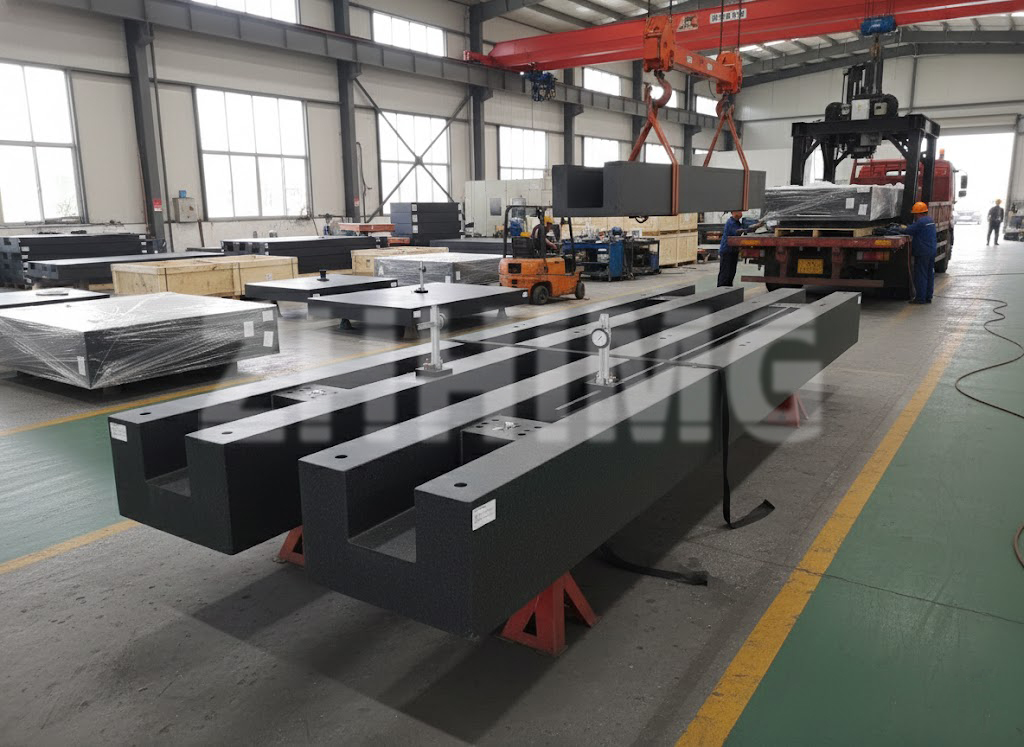

Instead of producing a single monolithic block, the ZHHIMG engineering team designed the structure as a modular granite assembly system.
Key design features included:
-
Segmented ultra-precision granite modules
-
Precision alignment interfaces between modules
-
Integrated threaded inserts and mounting holes
-
Structural design ensuring long-distance alignment stability
This modular approach allowed the team to maintain ultra-precision tolerances while dramatically reducing manufacturing time.
Once installed, the assembled structure performs as a single integrated precision base, supporting large industrial equipment and long-travel motion systems.
Manufacturing Capability: From Raw Granite to Precision Structure
Delivering a project of this scale in such a short timeframe required more than just good design—it required advanced production capability.
ZHHIMG’s manufacturing infrastructure includes:
-
Large-scale precision grinding equipment
-
Temperature-controlled processing environments
-
Skilled technicians specializing in ultra-precision granite machining
-
In-house metrology inspection systems
Using high-density natural black granite, the team performed precision grinding and surface finishing to achieve the required flatness and geometric tolerances.
Each module was then inspected to ensure it met strict dimensional and alignment specifications before shipment.
Logistics and Coordination: Speed Without Compromising Precision
Fast delivery of a large granite base is not only a manufacturing challenge—it is also a logistics challenge.
To meet the 15-day timeline, the project team coordinated:
-
Parallel manufacturing of multiple modules
-
Accelerated quality inspection workflows
-
Custom packaging for safe transportation
-
Rapid international logistics arrangements
This integrated project management approach allowed the entire system to move from production to delivery in just over two weeks.
Why Equipment Manufacturers Choose Custom Granite Components
Custom granite structures are widely used across high-precision industries because of their unique material advantages.
Superior Vibration Damping
Granite naturally absorbs mechanical vibration, making it ideal for high-precision motion systems and optical equipment.
Exceptional Thermal Stability
Compared with metal structures, granite provides better thermal stability, helping maintain dimensional accuracy in precision measurement environments.
High Rigidity and Long-Term Accuracy
Granite bases maintain geometric stability over long periods, even under heavy loads and continuous machine operation.
Flexible Customization
Modern granite machining allows manufacturers to integrate:
-
Threaded inserts
-
Precision guideway surfaces
-
Air bearing interfaces
-
Complex mounting features
This flexibility makes custom granite components suitable for a wide range of advanced equipment designs.
Applications for Large Granite Bases
Large-scale granite bases are commonly used in:
-
Semiconductor inspection equipment
-
Large-format laser processing systems
-
Optical alignment platforms
-
Coordinate measuring machines (CMM)
-
High-precision automation equipment
-
Long-travel linear motor systems
For these applications, structural stability directly impacts system performance, making granite the preferred base material.
Breaking the Myth: Custom Does Not Have to Be Slow
The successful delivery of a 30-meter granite base in just 15 days proves that custom precision components do not necessarily require long lead times.
With advanced engineering, modular design, and strong manufacturing capacity, it is possible to deliver large custom granite components quickly while maintaining ultra-precision quality standards.
For equipment manufacturers facing tight project timelines, choosing the right supplier can make the difference between project delays and successful on-time delivery.
Custom Granite Solutions from ZHHIMG
ZHHIMG specializes in designing and manufacturing custom granite components, ultra-precision granite bases, and large-scale granite structures for high-precision industries worldwide.
Our capabilities include:
-
Custom granite components of various sizes and structures
-
Large granite bases for industrial equipment
-
Precision grinding and lapping
-
Integrated threaded inserts and precision mounting features
-
Rapid production for urgent projects
Whether your project requires a small metrology base or a multi-meter granite machine structure, our engineering team can deliver solutions tailored to your application.
