The world of mechanical engineering relies on the smooth, precise rotation of a seemingly simple component: the bearing. From the massive rotors of a wind turbine to the minuscule spindles in a hard drive, bearings are the unsung heroes that enable motion. The accuracy of a bearing—its roundness, runout, and surface finish—is paramount to its performance and lifespan. But how are these microscopic deviations measured with such incredible precision? The answer lies not just in sophisticated electronic instruments, but in a stable, unyielding foundation: the precision granite platform. At ZHONGHUI Group (ZHHIMG®), we have seen how this fundamental relationship between a stable base and a sensitive instrument is revolutionizing the field of bearing metrology.
The Challenge: Measuring the Imperceptible
Bearing inspection is a demanding field of metrology. Engineers are tasked with measuring geometric characteristics like radial runout, axial runout, and concentricity to sub-micron or even nanometer tolerances. The equipment used for this—such as CMMs, roundness testers, and specialized laser systems—is incredibly sensitive. Any external vibration, thermal drift, or structural deformation of the measurement base can corrupt the data and lead to false readings.
This is where the unique properties of granite come into play. While metal might seem like a more logical choice for a machine base, it has significant drawbacks. Metal is a good conductor of heat, causing it to expand and contract with even minor temperature fluctuations. It also has a low damping coefficient, meaning it transmits vibrations rather than absorbing them. For a bearing test stand, this is a catastrophic flaw. A tiny vibration from a distant piece of machinery could be amplified, leading to inaccurate measurements.
Why ZHHIMG®’s Granite is the Ideal Base
At ZHHIMG®, we have perfected the use of ZHHIMG® Black Granite for high-precision applications. With a density of approximately 3100kg/m3, our granite is inherently more stable than other materials. Here’s how it partners with metrology equipment to achieve unparalleled accuracy in bearing testing:
1. Unmatched Vibrational Damping: Our granite platforms act as a natural isolator. They effectively absorb mechanical vibrations from the environment, preventing them from reaching the sensitive measurement probes and the bearing being tested. In our 10,000m2 climate-controlled workshop, which features ultra-thick concrete floors and anti-vibration trenches, we demonstrate this principle daily. This stability is the first, most crucial step in any accurate measurement.
2. Superior Thermal Stability: Temperature variations are a major source of error in metrology. Our granite has a very low coefficient of thermal expansion, meaning it remains dimensionally stable even if the ambient temperature changes slightly. This ensures that the platform’s surface—the zero-point for all measurements—doesn’t shift. This stability is vital for prolonged measurement sessions, where even a slight temperature increase could skew the results.
3. The Perfect Reference Plane: Bearing testing requires a flawless reference surface. Our master craftsmen, with over 30 years of hand-lapping experience, can finish our granite platforms to an incredible degree of flatness, often to the nanometer level. This provides a truly planar surface for instruments to reference, ensuring that the measurement is of the bearing itself, not the base it’s sitting on. This is where our Quality Policy comes to life: “The precision business can’t be too demanding.”
Integration with Instruments

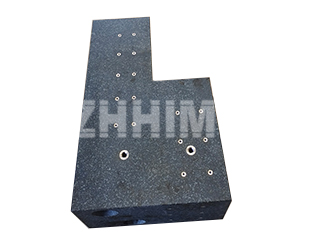

Our granite surface plates and custom bases are designed to seamlessly integrate with a wide range of bearing testing equipment. For example, a roundness tester—which measures how a bearing deviates from a perfect circle—is mounted on a granite platform to eliminate any vibrational noise. The bearing is placed on a granite V-block or a custom fixture, ensuring that it is held securely and precisely against a stable reference. The sensors and probes then measure the bearing’s rotation without interference. Similarly, for CMMs used in larger bearing inspection, the granite base provides the rigid, stable foundation needed for the machine’s moving axes to operate with sub-micron accuracy.
At ZHHIMG®, we believe in a collaborative approach. Our Commitment to Customers is “No cheating, No concealment, No misleading”. We work with leading metrology institutes and our global partners to design and optimize granite platforms that are perfectly suited for the specific demands of bearing inspection. We are proud to be the silent, unmoving foundation upon which the world’s most precise measurements are made, ensuring that every rotation, no matter how fast or slow, is as perfect as it can be.
