Ranking the Costs of Precision—Granite vs. Cast Iron vs. Ceramic Platforms

The Material Cost Challenge in Ultra-Precision Manufacturing

When sourcing a foundation for critical metrology equipment, the choice of material—Granite, Cast Iron, or Precision Ceramic—involves balancing upfront investment against long-term performance and stability. While engineers prioritize stability and thermal properties, procurement teams focus on the Bill of Materials (BOM) cost.

At ZHHIMG®, we understand that a complete material analysis must factor in not only the raw cost but also the complexity of manufacturing, required stability, and long-term maintenance. Based on industry averages and manufacturing complexity for similarly sized, high-precision, metrology-grade platforms, we can establish a clear cost ranking.

The Price Hierarchy of Precision Platforms

For platforms manufactured to high metrology standards (ee.g., DIN 876 Grade 00 or ASME AA), the typical price hierarchy, from Lowest to Highest Cost, is:

1. Cast Iron Platforms (Lowest Initial Cost)

Cast Iron offers the lowest initial material and manufacturing cost for a base structure. Its primary strength is its high rigidity and ease of incorporating complex features (ribs, internal voids) during the casting process.

• Cost Drivers: Relatively cheap raw material (iron ore, steel scrap) and decades-old manufacturing techniques.
• The Trade-off: Cast iron’s major weakness in ultra-precision is its susceptibility to rust/corrosion and its requirement for thermal stabilization (heat treatment) to relieve internal stresses, which adds cost. Furthermore, its higher Coefficient of Thermal Expansion (CTE) makes it less suitable than granite for high-accuracy environments with temperature fluctuations.

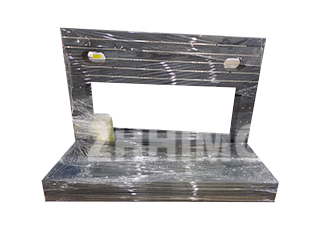

2. Precision Granite Platforms (The Value Leader)

Precision Granite, particularly high-density material like our 3100 kg/m3 ZHHIMG® Black Granite, typically sits in the middle of the price range, offering the best balance of performance and affordability.

• Cost Drivers: While the raw quarrying and material selection are controlled, the primary cost lies in the slow, rigorous, multi-stage manufacturing process—including rough shaping, lengthy natural aging for stress relief, and the demanding, highly skilled final manual lapping to achieve nanometer flatness.
• The Value Proposition: Granite is naturally non-magnetic, corrosion-resistant, and possesses a low CTE and superior vibration damping. The cost is justifiable because granite delivers certified, long-term stability without the need for expensive heat treating or anti-corrosion coatings. This makes granite the default choice for the majority of modern metrology and semiconductor applications.

3. Precision Ceramic Platforms (Highest Cost)

Precision Ceramic (often high-purity Aluminum Oxide or Silicon Carbide) typically commands the highest price point in the market. This reflects the complex raw material synthesis and high-energy manufacturing process.

• Cost Drivers: The material synthesis requires extreme purity and high-temperature sintering, and the finishing processes (diamond grinding) are difficult and expensive.
• The Niche: Ceramics are used when extreme stiffness-to-weight ratio and the lowest possible CTE are required, such as in high-acceleration linear motor stages or vacuum environments. While superior in some technical metrics, the extremely high cost limits its use to highly specialized, niche applications where budget is secondary to performance.

Conclusion: Prioritizing Value Over Low Cost

Choosing a precision platform is a decision of engineering value, not just initial price.

While Cast Iron offers the lowest initial entry point, it incurs hidden costs in thermal stability challenges and maintenance. Precision Ceramic offers the highest technical performance but demands a massive budgetary commitment.

Precision Granite remains the value champion. It provides inherent stability, superior thermal properties to cast iron, and maintenance-free longevity, all at a cost significantly below that of ceramic. ZHHIMG®’s commitment to certified quality, backed by our Quad-Certifications and traceable metrology, ensures that your investment in a granite platform is the most economically sound decision for guaranteed ultra-precision.
