In the realm of high-precision manufacturing, “flatness” is often the first variable addressed, but it is rarely the last. For complex assemblies—ranging from turbine shafts to semiconductor linear guides—the critical metrics are often straightness, parallelism, and concentricity. Achieving these requires a physical reference that does not succumb to the environmental stressors of the modern factory. At ZHHIMG, we provide the essential kit for these specialized measurements: the Granite Vee Block, the Precision Granite Block, and the Granite Straight Edge.
As industrial tolerances migrate from the thousandth of an inch to the sub-micron level, the materials used in inspection must evolve. Traditional steel tools, while robust, are inherently “live” materials—they react to magnetism, they oxidize, and their molecular structure shifts with temperature. High-density black granite, however, offers a “dead” stability that is the prerequisite for modern metrology.
Achieving Concentricity with the Granite Vee Block
When inspecting cylindrical components, the primary challenge is establishing a stable centerline. A Granite Vee Block is engineered specifically for this purpose. Unlike cast iron versions, which can develop micro-burrs that scratch sensitive polished shafts, a granite Vee block provides a smooth, non-abrasive surface that protects the workpiece while maintaining extreme accuracy.
At ZHHIMG, our Vee blocks are typically manufactured and sold in matched pairs. This is a critical distinction for the professional machinist. A matched pair ensures that the 90-degree “V” is ground and lapped simultaneously on both blocks, guaranteeing that a shaft resting across them is perfectly parallel to the surface plate. This setup is vital for checking “run-out” or for the precise drilling of cross-holes in cylindrical stock. Our black granite construction ensures that the block’s geometry remains unchanged even when used in proximity to magnetic chucks or high-frequency induction equipment.
Straightness and Parallelism: The Granite Straight Edge
While a surface plate provides a reference in two dimensions, the Granite Straight Edge (or inspection beam) is the master of the single dimension. Its primary application is the verification of the straightness of machine ways, the alignment of linear rails, and the leveling of large-scale industrial equipment.
A ZHHIMG Granite Straight Edge is designed with two long, narrow edges that are lapped flat and parallel to each other. Because of the high “stiffness-to-weight” ratio of our black granite, these straight edges exhibit minimal deflection. In aerospace applications, where the straightness of a wing jig or a fuselage section is measured over several meters, the thermal neutrality of granite is a massive advantage. While a steel straight edge would “bow” due to the heat from a technician’s hands or overhead lighting, the granite version remains a constant, reliable reference.
Versatility in the Lab: The Precision Granite Block
The term “Precision Granite Block” encompasses a wide range of specialized metrology components—from simple spacers to complex, multi-faced setup blocks. These are the unsung heroes of the inspection room, used to elevate workpieces to a specific height or to provide a secondary vertical reference for a dial indicator.

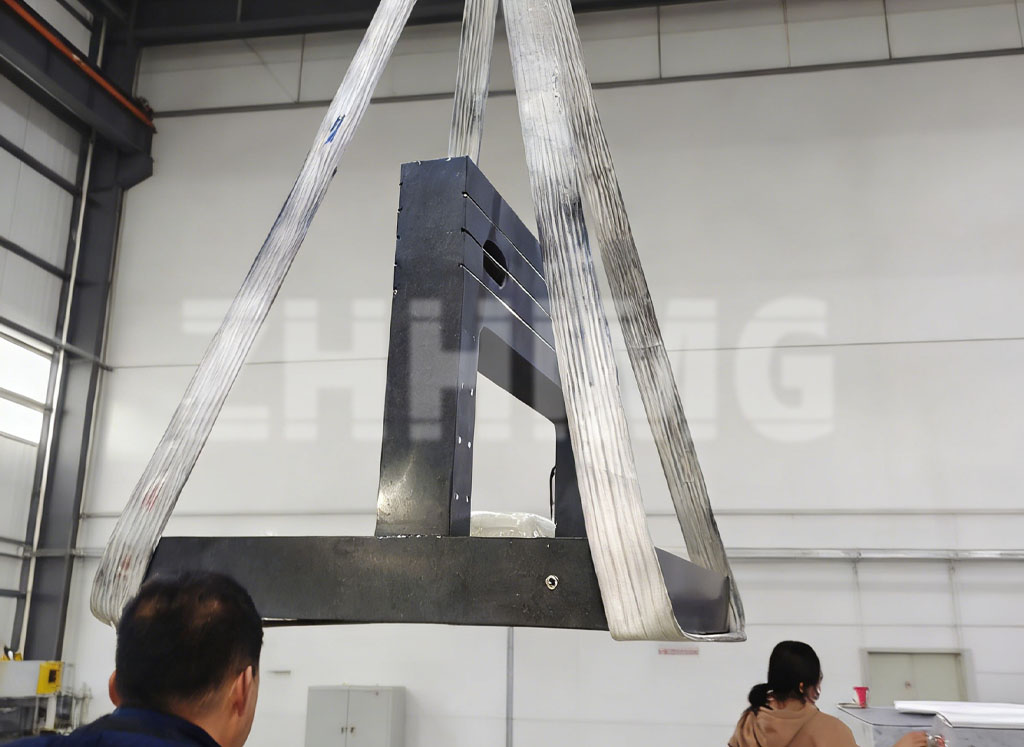

What sets a ZHHIMG Precision Granite Block apart is the quality of the finish. For many of our clients in the semiconductor industry, these blocks are integrated into the machines themselves as mounting bases for optical sensors or laser heads. In these cases, the block must be more than just flat; it must be dimensionally stable over a lifespan of decades. By using natural black granite, we eliminate the risk of internal stress relief that often plagues cast or welded metal blocks, ensuring that the sensor’s alignment remains true from the day of installation to the end of the machine’s service life.
The Science of Surface Finish and Lapping
The reason ZHHIMG tools are found in the world’s leading calibration labs is our adherence to the art of hand-lapping. While modern CNC grinding can achieve impressive results, the final “Grade 00″ (Laboratory Grade) tolerances can only be reached through manual intervention.
Lapping a Granite Straight Edge, for example, involves a repetitive process of measuring with an autocollimator and then hand-polishing the high spots. This creates a “matte” finish that is microscopically porous. This porosity is beneficial; it prevents the “wringing” or “sticking” effect caused by air pressure, allowing gauges and blocks to slide smoothly across the surface without jerky movements that can lead to false readings.
Durability and Maintenance in the Modern Shop
One of the most frequent questions we receive from the European market is regarding the longevity of granite in a “shop floor” environment. Granite is exceptionally hard—typically 6 to 7 on the Mohs scale—making it highly resistant to the scratches and dings common in heavy industry. Furthermore, because it does not rust, a Granite Vee Block or Straight Edge requires far less maintenance than a steel counterpart. A simple wipe-down with a dedicated granite cleaner is usually all that is required to maintain its accuracy for years.
However, we always recommend periodic calibration. Even the most stable Precision Granite Block can experience microscopic wear over years of constant use. ZHHIMG provides comprehensive calibration services and traceable reports, ensuring that your tools always meet the rigorous standards of your quality management system.
The ZHHIMG Commitment to Precision
Whether you are checking the straightness of a new CNC lathe with a Granite Straight Edge or verifying the concentricity of a high-speed spindle using a Granite Vee Block, the quality of your tool is the ceiling of your accuracy. You cannot measure what you cannot reference.
ZHHIMG continues to lead the industry by combining the ancient stability of natural stone with the most advanced measurement technologies available today. We invite you to explore our catalog of precision granite solutions and contact our engineering team to discuss your custom metrology requirements.
