In the world of ultra-precision manufacturing and high-stakes metrology, the granite surface plate or granite reference plate is often regarded as the ultimate symbol of stability. Engineered from naturally aged stone and painstakingly finished to nanometer-level precision, these massive bases anchor everything from Coordinate Measuring Machines (CMMs) to high-speed semiconductor equipment. However, a critical question arises for every operation reliant on these foundations: Given their inherent stability, are precision granite platforms truly immune to drift, and how often must they undergo periodic recalibration to ensure compliance and maintain absolute accuracy?
At ZHONGHUI Group (ZHHIMG®), a global leader committed to the highest standards of ultra-precision (evidenced by our unique combination of ISO 9001, ISO 45001, ISO 14001, and CE certifications), we affirm that the answer is unequivocally yes. While granite is vastly superior to metallic materials in terms of long-term dimensional stability, the necessity of calibration is driven by a confluence of industry standards, operational environment, and the relentless demands of modern precision.
Why Recalibration Is Essential, Even for ZHHIMG® Black Granite
The assumption that high-quality granite never needs checking overlooks the practical realities of a working environment. While our proprietary ZHHIMG® Black Granite—with its high density (≈ 3100 kg/m³) and exceptional resistance to internal creep—provides the most stable foundation possible, four primary factors necessitate routine surface plate calibration:
1. Environmental Influence and Thermal Gradients
Although granite has a low coefficient of thermal expansion, no platform is entirely isolated from its surroundings. Subtle temperature fluctuations, especially if the air conditioning fails or external light sources change, can introduce minor geometric changes. More crucially, if the granite platform is exposed to localized heat sources or large temperature swings upon movement, these thermal effects can temporarily alter the surface geometry. Although our dedicated Constant Temperature and Humidity Workshop ensures a perfect initial finish, the field environment is never perfectly controlled, making periodic checks vital.
2. Physical Wear and Load Distribution
Every measurement taken on a granite surface contributes to minuscule wear. The repetitive sliding of gauges, probes, height masters, and components—particularly in high-throughput environments like quality control labs or bases for PCB drilling machines—causes gradual, uneven abrasion. This wear is concentrated in the most frequently used areas, creating a “valley” or localized flatness error. Our Commitment to Customers is “No cheating, No concealment, No misleading,” and the truth is that even our master lappers’ nanometer-level finish must be periodically verified against the accumulated friction of daily use.
3. Shift in Foundation and Installation Stress

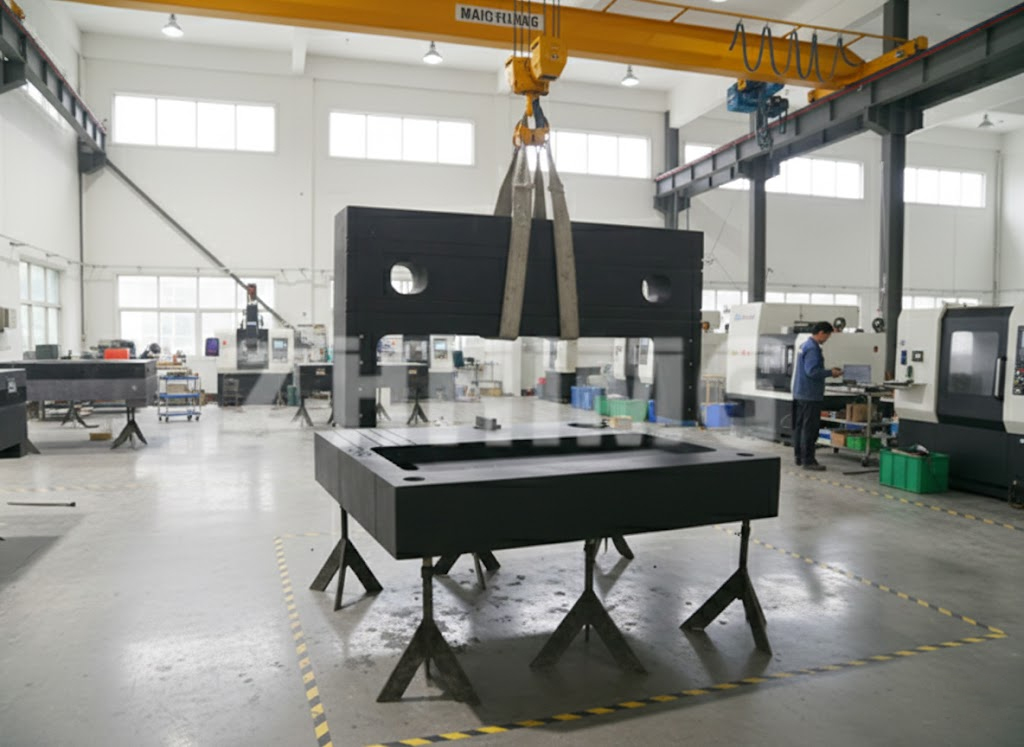

A large granite base, especially those used as granite components or granite air bearing assemblies, is often leveled on adjustable supports. Vibrations from adjacent machinery, subtle shifting of the factory floor (even our 1000 mm thick military-grade concrete foundation with anti-vibration trenches), or accidental impacts can slightly displace the platform from its original level. A change in level directly impacts the reference plane and introduces measurement error, demanding a comprehensive calibration that includes both leveling and flatness assessment using instruments like WYLER Electronic Levels and Renishaw Laser Interferometers.
4. Compliance with International Metrology Standards
The most compelling reason for calibration is regulatory compliance and adherence to the required quality system. Global standards, such as the ASME B89.3.7, DIN 876, and ISO 9001, mandate a traceable system of measurement verification. Without a current calibration certificate, measurements taken on the platform cannot be guaranteed, jeopardizing the quality and traceability of the components being manufactured or inspected. For our partners—including top global firms and Metrology Institutes we collaborate with—traceability back to national standards is a non-negotiable requirement.
Determining the Optimal Calibration Cycle: Annually vs. Semi-Annually
While the necessity of calibration is universal, the calibration cycle—the time between checks—is not. It is determined by the platform’s grade, size, and most importantly, its intensity of use.
1. General Guideline: The Annual Check-up (Every 12 Months)
For platforms used in standard quality control labs, light inspection duties, or as bases for general precision CNC equipment, an annual calibration (every 12 months) is typically sufficient. This period balances the need for assurance with minimizing the associated downtime and cost. It is the most common default cycle set by most quality manuals.
2. High-Demand Environments: The Semi-Annual Cycle (Every 6 Months)
A more frequent semi-annual calibration (every 6 months) is strongly recommended for platforms operating under the following conditions:
-
High-Volume Use: Platforms used continuously for in-line inspection or production, such as those integrated into automated AOI or XRAY equipment.
-
Ultra-Precision Grade: Platforms certified to the highest grades (Grade 00 or laboratory grade) where even micro-deviations are unacceptable, often required for precision gauge calibration or nanometer-scale metrology.
-
Heavy Load/Stress: Platforms that frequently handle very heavy components (like the 100-ton capacity components we handle) or bases subject to rapid motion (e.g., high-speed linear motor stages).
-
Unstable Environments: If a platform is housed in an area prone to environmental or vibrational interference that cannot be fully mitigated (even with features like our perimeter anti-vibration trenches), the cycle must be shortened.
3. Performance-Based Calibration
Ultimately, the best policy is Performance-Based Calibration, dictated by the platform’s history. If a platform has consistently failed its annual check, the cycle must be shortened. Conversely, if a semi-annual check consistently shows zero deviation, the cycle might safely be extended with approval from the quality department. Our decades of experience and adherence to standards like BS817-1983 and TOCT10905-1975 allow us to provide expert consultation on the most appropriate cycle for your specific application.
The ZHHIMG® Advantage in Calibration
Our dedication to the principle that “Precision business can’t be too demanding” means we employ the world’s most advanced measuring devices and methodologies. Our calibration is performed by highly trained technicians, many of whom are master craftsmen with the experience to truly understand surface geometry at the micron level. We ensure our equipment is traceable to national metrology institutes, guaranteeing that the renewed accuracy of your granite surface plate meets or exceeds all global standards, safeguarding your investment and your product quality.
By partnering with ZHHIMG®, you are not just purchasing the most stable precision granite in the world; you are gaining a strategic ally committed to ensuring that your platform maintains its guaranteed accuracy throughout its entire operational lifespan.
