Vibration-Resistant Granite Gantry System Improves Repeat Positioning Accuracy in Precision Inspection

Repeat positioning accuracy reflects the ability of precision equipment to return stably to the same benchmark position, which is critical for consistent batch inspection and machining. Vibration-induced errors are random and difficult to eliminate through simple calibration. Traditional cast iron and aluminum gantries feature low damping and slow vibration attenuation. Residual vibration generated by high-speed reciprocating motion continuously disturbs sensors, laser modules and probe positioning. Coupled with workshop mechanical vibration and ground micro-shock, cumulative vibration causes tiny positioning deviations, leading to unstable data, inconsistent machining textures and fluctuating product yield. Upgrading to high-damping and vibration-resistant gantry bases is the fundamental solution.

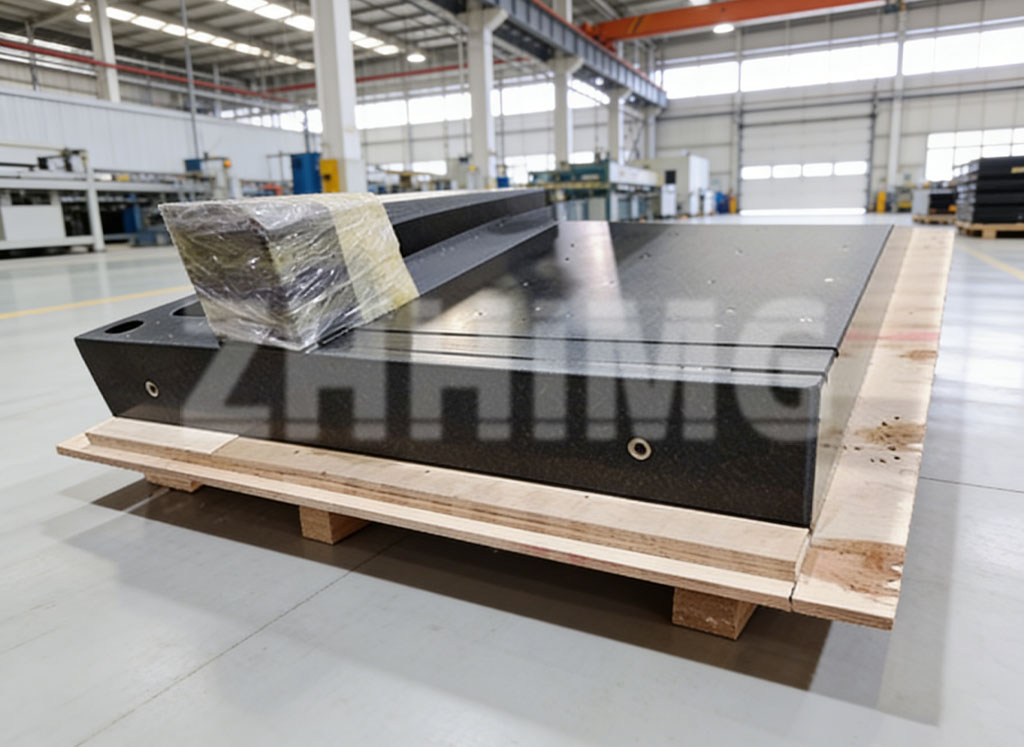

ZHHIMG vibration-resistant gantry systems adopt exclusive high-density black granite (3100kg/m³) instead of traditional metal structures. Its dense and uniform crystal structure delivers natural high damping performance, rapidly absorbing and dissipating dynamic vibration energy.

Unlike metal frames that easily resonate and retain vibration, granite attenuates micro-vibration instantly during high-speed start-stop and linear motion. With extremely high rigidity and zero elastic deformation, it avoids rebound distortion and positioning drift caused by mechanical stress. The premium material fundamentally suppresses vibration errors and ensures highly consistent positioning and trajectory repetition.

Ordinary spliced gantries suffer from gaps and insufficient rigidity, causing local vibration and beam deflection during operation. ZHHIMG adopts an optimized closed-loop gantry structure. By adjusting beam span and column proportion according to stroke, load and speed, the overall structural natural frequency is optimized to avoid mechanical resonance.

All granite components undergo long-term static stress relief to eliminate manufacturing residual stress. Ultra-precision manual lapping ensures seamless assembly without structural shaking or micro-trembling. The balanced frame structure strongly resists external shock and operational vibration, stabilizing multi-axis linkage and high-speed reciprocating motion.

To maximize vibration resistance and accuracy stability, all ZHHIMG granite gantries are processed and assembled in professional constant-temperature, constant-humidity and dust-free workshops. Reinforced ultra-hard floors, vibration isolation trenches and silent cranes effectively isolate external vibration and airflow interference.

Equipped with advanced large-scale grinding machines and calibrated by German Mahr and British Renishaw precision instruments, all mounting and moving surfaces achieve nanometer-level precision. The ultra-smooth matching structure further reduces friction vibration, forming a triple protection system of material damping, structural stabilization and environmental isolation to guarantee stable repeat positioning accuracy.

This system delivers prominent advantages in high-consistency batch inspection and processing. For AOI optical inspection, wafer screening and PCB precision testing, it ensures highly repeated scanning trajectories to avoid missing detection and data fluctuation. For femtosecond laser processing and perovskite coating equipment, the vibration-free benchmark guarantees uniform batch machining quality. For gantry CMMs and large-stroke measuring instruments, it effectively reduces repeated measurement deviations and improves metrology authority and traceability.

In long-term mass production, the system reduces calibration frequency, lowers workpiece scrap rate and stabilizes product yield, serving as an essential high-precision foundation for advanced intelligent manufacturing equipment.

Vibration interference is the primary cause of gradual precision degradation in ultra-precision equipment. The anti-vibration performance of the base frame determines long-term positioning stability and batch consistency. Surpassing the limitations of traditional metal structures, ZHHIMG vibration-resistant granite gantry systems integrate natural high-damping materials, rigid integrated structures and constant-temperature ultra-precision craftsmanship to fundamentally solve repeat positioning deviation and precision instability. With strict quality control and mature non-standard customization capabilities, ZHHIMG provides high anti-vibration, high-precision and high-stability gantry solutions for global precision equipment manufacturers and scientific research institutions, empowering stable and efficient ultra-precision industrial production and inspection.
