Precision equipment depends on more than sensors, motors, scales, and software. The structure that carries those components has a direct effect on alignment, repeatability, vibration response, thermal behavior, and long-term measurement confidence.

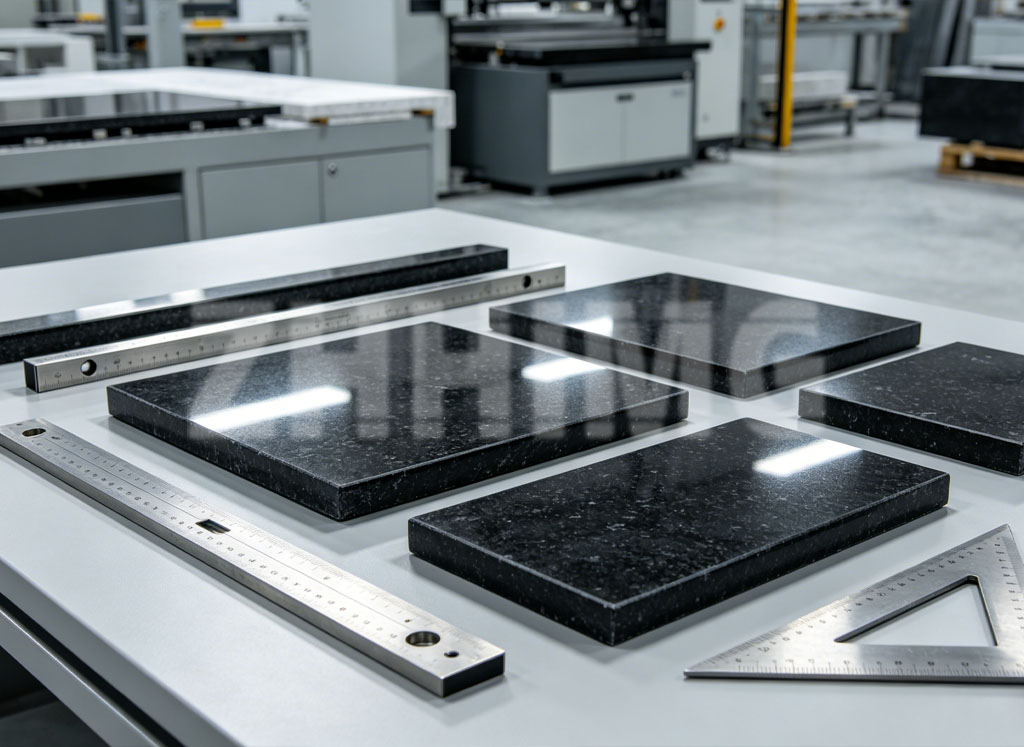

CNC-machined granite components are increasingly used in industrial precision equipment because they combine the natural stability of granite with the design flexibility of modern CNC processing. A granite block can become a custom machine base, guideway support, optical platform, bridge beam, air-bearing component, metrology fixture, semiconductor stage platform, or integrated structural assembly.
The value is not simply that granite is heavy or flat. CNC machining makes it possible to add the interfaces needed for real machines: rail seats, threaded inserts, locating holes, pockets, grooves, cable channels, air-bearing faces, motor mounts, and precision reference datums.
For equipment builders, the practical advantage is clear. Instead of adapting the machine to a standard plate or fabricating multiple metal brackets, the structural granite component can be designed around the intended motion system and inspection task.
1. Stable Geometry for Precision Systems
The first advantage of CNC-machined granite components is long-term structural stability.
Natural granite is commonly used for machine bases and precision reference structures because it has low thermal conductivity, relatively low thermal expansion, corrosion resistance, non-magnetic behavior, and useful vibration damping. Unlike welded metal structures, granite does not contain manufacturing residual stress from welding or foundry cooling that may later relieve and alter geometry.
For industrial precision equipment, this helps maintain the relationship between rails, scales, sensors, fixtures, optical heads, and workpieces. The component may still expand slightly as temperature changes, but granite generally responds more slowly to heat than common structural metals.
This is valuable in applications such as:
- Coordinate measuring machines and vision measuring systems
- Semiconductor wafer inspection and AOI equipment
- Laser-processing and laser-measurement platforms
- Air-bearing stages and linear-motion systems
- Optical inspection and interferometry equipment
- Industrial CT and X-ray systems
- Precision CNC, PCB drilling, and grinding equipment
Granite machine beds and components are widely used in metrology, machine tools, semiconductor equipment, aerospace, automotive, and electronics because they provide stable structural support for high-accuracy systems.
The key point is that stability must be designed into the finished component. Thickness, cross-section, support points, moving load, interface locations, and the final operating environment all affect machine-level performance.
2. Custom Interfaces Reduce Assembly Error
A standard granite surface plate provides a flat reference plane. A CNC-machined granite component can provide a complete mechanical interface system.
CNC machining allows granite to be processed with features such as threaded inserts, reamed locating holes, guideway mounting surfaces, pockets, grooves, T-slots, cable ducts, air passages, motor interfaces, and custom assembly faces. These features can be dimensioned from common datums, reducing tolerance stack-up between separate brackets, adapter plates, and fabricated structures.
For a precision granite machine base, the manufacturer may machine:
| CNC-machined feature | Function in the equipment |
|---|---|
| Linear rail seats | Establish straightness, parallelism and support for guideways |
| Threaded inserts | Mount rails, motors, brackets, sensors, covers and fixtures |
| Dowel holes or reamed bores | Provide repeatable assembly location |
| Motor pockets | Support linear motors or drive components |
| Encoder-scale interfaces | Maintain a controlled feedback reference |
| Cable channels | Route wiring and services away from critical surfaces |
| Air-bearing tracks | Support low-friction precision motion |
| Vertical datum faces | Mount optical columns, bridges or sensor modules |
Threaded metal inserts, bushings, T-slots, reamed holes, and interface flanges can be integrated into CNC-machined granite components using controlled machining and high-strength bonding methods. For applications requiring accurate guideway installation, the rail-mounting surfaces can be machined and inspected for specified flatness, straightness, and parallelism.
This integration reduces the number of assembly interfaces that must be aligned during machine construction. Fewer interfaces do not remove the need for careful assembly, but they can simplify it.
3. Improved Vibration Damping for Motion and Measurement
Vibration is a common source of lost precision.
A high-speed stage can excite a machine base during acceleration, deceleration, and direction reversal. Nearby equipment may transmit vibration through the floor. Pumps, fans, cable carriers, and vacuum systems can create additional disturbance. If the machine structure continues to vibrate after motion stops, a probe, camera, laser head, or optical sensor may need more time before it can collect reliable data.
Granite provides useful natural vibration damping. Its dense mineral structure helps dissipate vibration energy and can reduce the duration of structural oscillation. This makes granite particularly suitable for stationary bases and reference structures in CMMs, optical equipment, semiconductor inspection systems, laser platforms, and precision measuring machines.
Granite machine beds are widely used in sub-micron and nanometer-level equipment because their damping characteristics can reduce vibration-related process errors, while their stable structure supports precision guideway performance.
Damping should not be confused with stiffness. A stiff structure limits deflection under load; a damped structure reduces vibration after a disturbance. High-performance machines need both. The final result depends on granite geometry, support arrangement, rail design, moving mass, motor force, floor condition, and system tuning.
4. Better Thermal Behavior for Long Operating Cycles
Thermal drift can affect a precision machine even when the room temperature appears controlled.
Motors, electronics, lighting, spindles, laser sources, cooling circuits, compressed air, and airflow may create local heating. If one side of a machine base warms more quickly than the other, rail alignment and sensor position can change.
Granite has low thermal conductivity, so localized heat moves through the structure relatively slowly. This helps reduce rapid geometry changes and provides more time for the machine to approach thermal equilibrium. Its relatively low coefficient of thermal expansion can also help limit dimensional change compared with many structural metals.
For a large CNC granite base, this can support more stable guideway alignment over long travel. For semiconductor equipment, it can help preserve the relationship between the wafer stage, encoder scale, optics, and inspection sensor. For a CMM, it can help maintain a stable workpiece reference and guideway geometry during extended measuring cycles.
The granite component is not immune to heat. A motor installed directly beside one rail, uneven coolant flow, or direct HVAC discharge can still create measurement drift. Effective thermal design requires heat-source management, temperature monitoring, symmetric layouts where practical, and adequate stabilization time.
5. Flexible Design for Complex Equipment
CNC-machined granite components can be produced as more than simple slabs or surface plates.
A custom granite assembly may include a large base, vertical column, bridge beam, rail support, square box, metrology fixture, air-bearing component, or multi-part machine frame. Components can be bonded, mechanically assembled, or combined with metal, ceramic, glass, mineral-cast, UHPC, and carbon-fiber elements where each material provides the best function.
This flexibility helps equipment builders create hybrid structures. Granite may establish the stable stationary reference, while a lighter metal or carbon-fiber component handles a moving axis. Ceramic components may provide electrical insulation or wear resistance. Metal inserts may support high-load threaded connections. Mineral casting may be used where complex internal channels are needed.
At ZHHIMG®, CNC-machined granite components are developed according to customer drawings and system requirements. The manufacturing review normally considers material selection, overall dimensions, critical datums, rail interfaces, threaded inserts, moving load, support arrangement, inspection requirements, handling method, and export packaging.
Large-part CNC machining requires special attention to workholding, process control, geometry verification, and handling because the accuracy of the finished equipment depends on the accuracy of the structural surfaces.
CNC Granite Is Not a Generic Material Choice
CNC-machined granite components offer five practical advantages for industrial precision equipment:
- Stable long-term geometry for stationary reference structures
- Custom interfaces that reduce assembly stack-up
- Natural vibration damping for improved motion and measurement stability
- Controlled thermal behavior during long operating cycles
- Flexible designs for complex and hybrid machine structures
These benefits are most valuable when the granite part is engineered around the actual machine function. A well-designed granite base can support rails, linear motors, encoder systems, air bearings, optics, fixtures, and sensors from a common precision datum. A poorly specified granite block, however, will not automatically improve machine performance.
For equipment builders, the best starting point is a complete RFQ: 2D drawing, 3D model, application description, critical tolerances, rail and insert details, moving loads, inspection requirements, destination country, and target delivery date. With that information, a custom CNC-machined granite component can become a reliable structural foundation for precision equipment.
