Characteristics of T-Slot Granite Base: Core Advantages for Ultra-Precision Equipment

In cutting-edge industrial fields such as ultra-precision manufacturing, high-end metrology and inspection, and semiconductor optoelectronics, the equipment base serves as the core bearing benchmark for the entire machine. Its material properties, structural design and comprehensive performance directly determine the operating accuracy, stability and service life of precision equipment. As an upgraded product of traditional precision bases, the T-slot granite base breaks through many application limitations of metal bases and ordinary flat granite bases by virtue of its unique material characteristics and scientific groove structure. With in-depth technical accumulation in ultra-precision processing, ZHHIMG specializes in the R&D and production of high-end granite precision components. Its T-slot granite bases feature outstanding comprehensive performance and distinct product characteristics, becoming the preferred core supporting component for global high-end precision equipment. The main product features are summarized as follows:

ZHHIMG T-slot granite bases are made of high-density pure black granite with a dense and uniform internal structure, whose physical properties are far superior to ordinary marble and conventional stone materials. Featuring an ultra-low thermal expansion coefficient, the material resists temperature and humidity fluctuations in complex working environments and avoids thermal expansion, contraction, plate warpage and dimensional offset during long-term service. It also possesses natural non-magnetization, insulation, corrosion resistance and high compression wear resistance. It fundamentally solves the common defects of cast iron and alloy bases such as rusting, magnetization and deformation. Unaffected by electromagnetic interference, acid and alkali corrosion and high-frequency friction, the base maintains constant benchmark dimensions and provides zero-drift precision support for various ultra-precision equipment.

Adopting an integral one-piece forming process, the T-slot structure is seamlessly integrated with the base body without splicing gaps or stress concentration, avoiding material damage and precision loss caused by secondary grooving modification. The standardized through-type T-slot track is precisely arranged and finely polished with a burr-free surface and ultra-high straightness. Different from traditional bases with fixed hole positions, the open T-slot design allows free sliding, flexible positioning and rapid locking of various tooling fixtures, testing modules and transmission parts. It adapts perfectly to equipment iteration, process upgrading and component replacement, effectively solving the poor compatibility and low flexibility of traditional base structures.

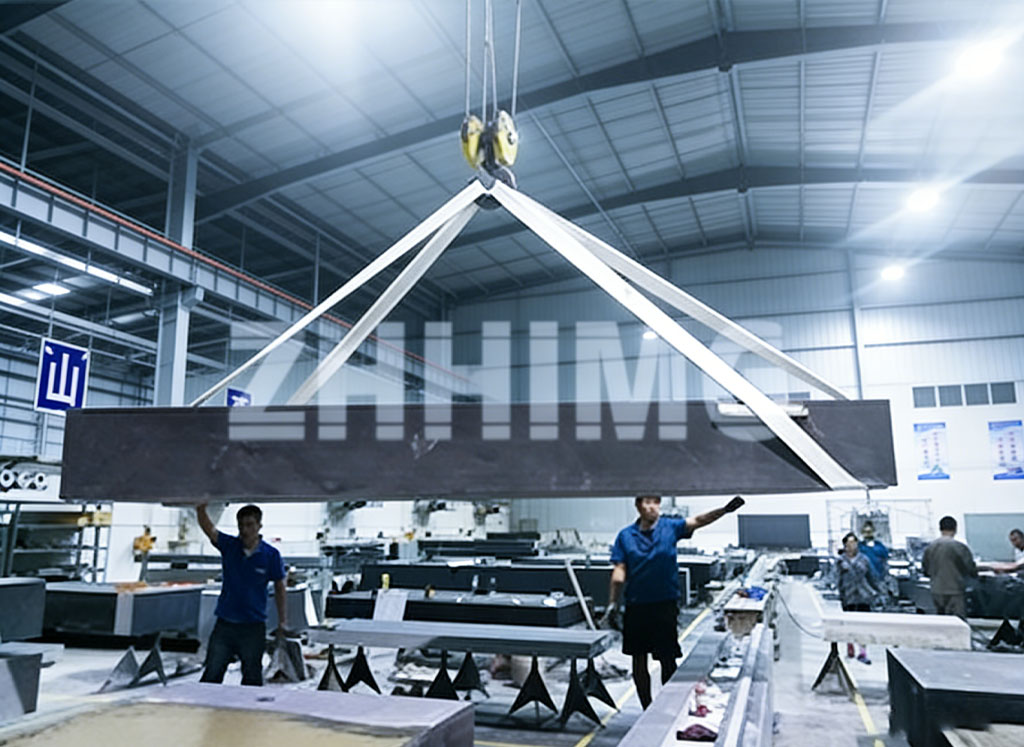

Supported by a 10,000-class constant-temperature and constant-humidity dust-free workshop, professional anti-vibration production environment, world-class large-scale precision grinding machines, and nano-level manual polishing by senior craftsmen with more than 30 years of experience, the flatness, parallelism and perpendicularity of ZHHIMG T-slot granite bases reach nanometer-level ultra-high precision. All products are manufactured in accordance with global mainstream metrology standards including German DIN, American ASME, Japanese JIS and Chinese GB standards. Full-range calibration is conducted with top-tier testing equipment such as German Mahr, Swiss WYLER and British Renishaw, with all measurement data fully traceable. Mass-produced products deliver stable precision and high consistency, fully meeting the stringent requirements of semiconductors, precision lasers, CMMs, new energy testing and other high-precision scenarios.

Micro-vibration is a key factor affecting the detection accuracy and yield rate of ultra-precision equipment. Granite material inherently provides faster vibration attenuation and better shock absorption than metal materials. Combined with ZHHIMG’s exclusive shockproof technology and professional workshop shock absorption structure, the T-slot granite base quickly eliminates micro-vibrations generated by equipment operation and external environments and suppresses resonance transmission. It ensures absolute stability of the reference benchmark during continuous operation. Even under long-term high-frequency working conditions and repeated assembly and disassembly, the product maintains stable precision and structural integrity, reducing calibration frequency and operational costs while ensuring continuous and reliable precision operation.

Compared with traditional metal and ordinary stone bases that are easily worn and suffer rapid precision attenuation requiring frequent calibration and replacement, ZHHIMG T-slot granite bases feature solid structure, aging resistance and wear resistance, supporting high-precision stable service for more than a decade with a far longer service life than ordinary products. The flexible modular T-slot structure adapts to production line upgrades and equipment iteration without replacing the entire base, greatly reducing enterprise hardware investment and renewal costs. With comprehensive superior performance, the products are widely applied by Fortune Global 500 enterprises, top global research institutions and national metrology institutes, exported to Europe, America, Southeast Asia and other regions, establishing a benchmark status in the global ultra-precision industry.

As a benchmark enterprise with full-category ultra-precision component manufacturing capabilities, ZHHIMG strictly adheres to high-quality manufacturing standards. In the future, the company will continuously optimize the production process and structural design of T-slot granite bases, further strengthen the product advantages of high precision, high stability, strong compatibility and high durability, and provide high-quality core basic components for the high-quality development of the global ultra-precision industry.
