In modern high-precision industries, the demand for structural rigidity, dynamic stability, and thermal resistance has reached unprecedented levels. As industrial machinery operates at higher speeds, greater accelerations, and tighter motion tolerances, traditional cast iron and welded steel frames frequently reveal their limitations—such as thermal distortion, internal stress relaxation, and poor vibration damping.
Natural high-density black granite has emerged as the premier structural material across high-tech manufacturing sectors. From nanometer-scale semiconductor fabrication to large-format solar panel coating, granite bases serve as the silent backbone of modern precision engineering.
This application guide explores key industry sectors reliant on precision granite structures and highlights ZHHIMG’s unique capability in manufacturing massive, high-load stone components.
1. High-Precision Applications Across Cutting-Edge Industries
Granite components, air-bearing stages, and structural bases are critical elements in numerous advanced technological fields:
Semiconductor & Lithography Equipment
Semiconductor manufacturing demands extreme motion control and sub-nanometer positioning. Granite bases provide an ultra-stable foundation for wafer steppers, lithography stages, and wire bonders, absorbing micro-vibrations generated by high-speed linear motor axes.
Automated Optical Inspection (AOI) & X-Ray CT Systems
In optical inspection, high-resolution cameras and sensors require absolute mechanical stability to eliminate motion blur. Granite surface plates and gantry structures maintain planar accuracy across multi-axis XY stages, ensuring reliable defect detection in PCB drilling and microelectronics.
Perovskite Coating & New Energy Battery Testing
Next-generation solar cell manufacturing (such as perovskite coating technology) and lithium battery testing platforms demand large-surface uniformity. Ultra-flat granite beds ensure that liquid coatings are deposited with uniform thickness across large panel areas.
Precision Laser Equipment (Femtosecond & Picosecond Lasers)
Ultra-fast pulse laser cutting and micro-machining require zero structural drift caused by temperature or beam energy. High-density granite prevents thermal expansion, allowing high-power laser heads to execute sub-micron cuts consistently.

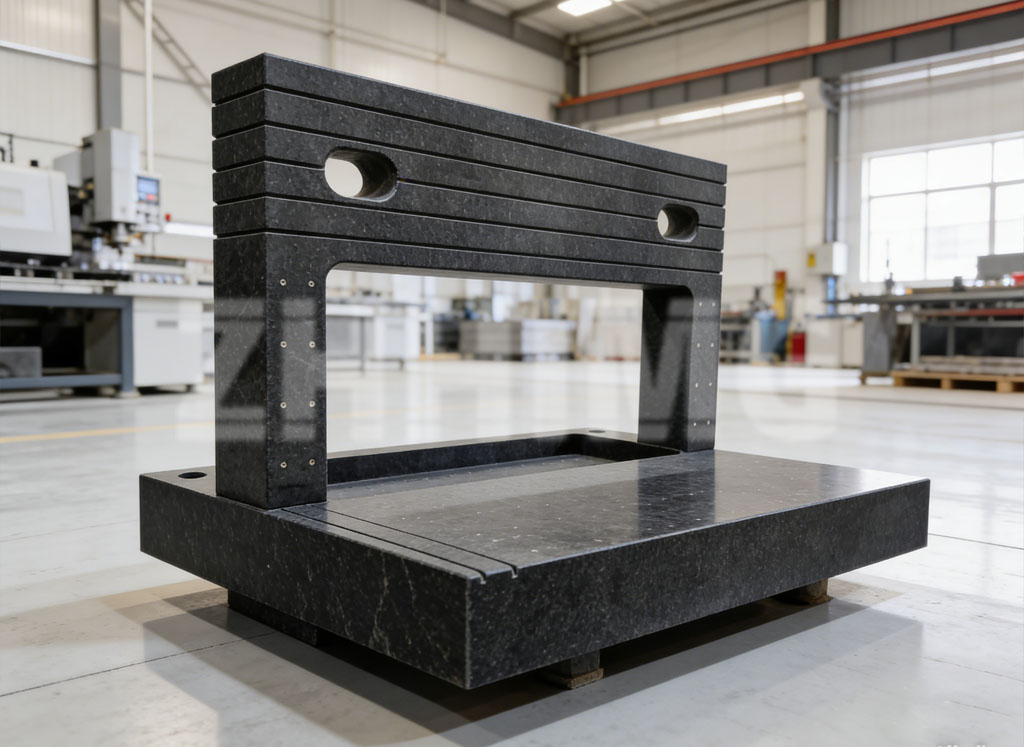

Coordinate Measuring Machines (CMM) & Optical Imaging Systems
Coordinate Measuring Machines rely on granite for their master beds, vertical Z-columns, and bridge structures. The inherent stability of granite guarantees that precision measurements remain repeatable over decades of continuous laboratory use.
2. Overcoming Size, Mass, and Capacity Limits
As industrial equipment scales up—particularly in large-format display manufacturing, long-bed gantry systems, and heavy aerospace machining—equipment builders require extra-large granite structures that very few suppliers worldwide can produce.
ZHONGHUI Group (ZHHIMG) stands out as a global leader in high-tonnage and long-span stone processing capabilities:
-
100-Ton Single-Piece Machining: Our facilities feature heavy-duty overhead cranes and CNC equipment capable of handling single granite components weighing up to 100 metric tons.
-
20-Meter Single-Piece Length: We possess the machinery to process single granite blocks up to 20,000 mm in length, 4000 mm in width, and 1000 mm in thickness.
-
6000 mm Precision Grinding Capacity: Utilizing four ultra-large grinding machines (with single equipment investments exceeding 500,000 USD), we execute precision grinding on metal and non-metal platforms up to 6000 mm long.
-
World-Class Production Volume: Operating across four dedicated production lines for granite beds, ZHHIMG yields a monthly capacity of up to 20,000 sets of 5000 mm granite beds, making us one of the world’s fastest and highest-volume precision granite manufacturers.
3. Trusted by Global Fortune 500 Leaders
At ZHHIMG, all custom components are manufactured exclusively from genuine ZHHIMG Black Granite (density approximately 3100 kg/m3), offering far superior physical stability compared to standard European or American stone materials.
This unwavering commitment to material quality and manufacturing scale has made ZHHIMG a trusted partner for global industry leaders, including GE, Apple, Samsung, Oracle, Bosch, Rexroth, Schunk, HIWIN, THK, and MISUMI. Furthermore, our collaborative research with world-renowned institutions—such as the National University of Singapore (NUS), Nanyang Technological University (NTU), and Stockholm University—enables us to continuously pioneer advanced measurement and manufacturing techniques.
Partner with ZHHIMG for Custom Base Engineering
Whether you are designing a high-acceleration linear motor stage, a large-format AOI platform, or a custom semiconductor gantry, ZHHIMG provides complete engineering support from CAD design analysis to final sub-micron inspection.
-
Email Us: info@zhhimg.com
-
Explore Products: Visit our website to learn more about Granite Assembly, Air Bearings, and Custom Components.
-
Request an Engineering Evaluation: Submit your CAD drawings today for a free design-for-manufacturability evaluation and competitive quotation.
