In the planning stage of precision manufacturing production lines, many enterprises directly purchase standard-size granite inspection tables. Later, they find that the table length, width, support points and hole layout are incompatible with on-site inspection workstations. Either the tabletop is too large and occupies production line passages, or its size is insufficient to accommodate large workpieces to be measured. Additional adapter fixtures not only raise costs but also introduce new measurement errors. With customized production capabilities for ultra-precision components, ZHHIMG® can customize the overall dimensions and structures of granite inspection tables according to customers’ workstation layouts, workpiece shapes and inspection workflows. The reference platform can perfectly fit on-site inspection scenarios without compromising accuracy to match equipment.
Custom dimensioning is not simply cutting stone, but a systematic solution ranging from workstation investigation to finished product delivery. In the early phase of a project, ZHHIMG® technical team collects multiple key on-site data: available space of the inspection workstation, maximum outer dimension of workpieces under test, travel range of probes, mounting positions of supporting automated equipment, as well as workshop load capacity and hoisting access. The basic length, width and thickness of the inspection table are determined based on these parameters, while its self-weight is reasonably controlled to balance platform rigidity and on-site hoisting feasibility. For long workpiece inspection, integrated ultra-long granite tabletops can be customized; for compact laboratory workstations, lightweight small reference tables can be manufactured to maximize the utilization of limited space.
Beyond overall length, width and thickness, customization also extends to functional structures of the tabletop to integrate the inspection table with workstation equipment. ZHHIMG® can prefabricate mounting holes, positioning grooves, T-slots and avoidance notches on the tabletop per drawings to meet assembly requirements of optical imagers, laser inspection modules, linear motor platforms and air-bearing components. Support layouts for different workstations can be individually designed, with support foot positions arranged according to tabletop stress simulation to avoid partial suspension of the tabletop. This all-in-one customization eliminates secondary drilling on the tabletop by customers on site, and avoids risks such as stone stress damage, dust pollution and flatness deterioration caused by on-site machining.

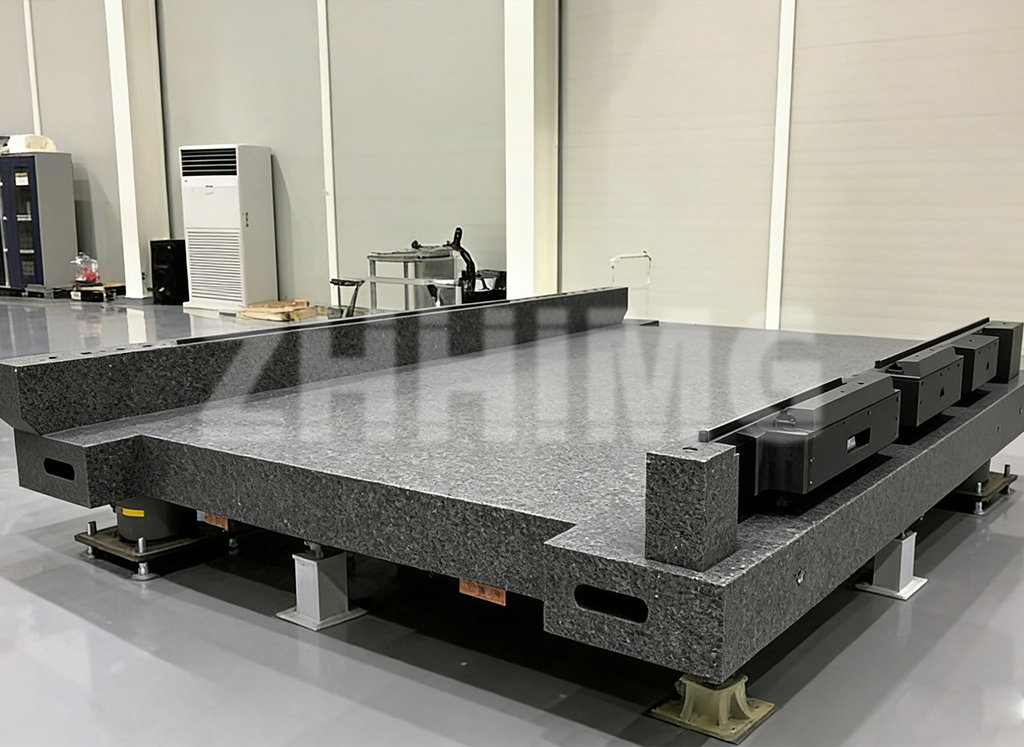

Manufacturing large customized granite inspection tables sets high thresholds for raw materials and processing equipment, which not all suppliers can meet. Oversized integrated tabletops require large blanks of dense black granite, finished by large CNC machines and extra-large grinding machines. ZHHIMG® owns large-scale production lines capable of processing large monolithic stone components, and can undertake customized extra-long, extra-wide and extra-thick tabletops. Custom products also undergo complete stress aging processes to release residual internal stress of stone. Even for large-size tabletops, geometric accuracy can remain stable for a long time without deformation drift as dimensions increase.
Customized production strictly adheres to accuracy standards, and quality control will not be downgraded for non-standard sizes. Whether it is a small inspection table dedicated for workstations or large customized bases for semiconductors, CMM and metrology research projects, ZHHIMG® applies consistent nano-level grinding processes. Before delivery, finished products undergo full geometric tolerance inspection using complete sets of precision metrology instruments including laser interferometers and electronic levels, accompanied by complete traceable test reports. All inspection instruments are regularly calibrated by authorized metrology institutes, ensuring that test data of non-standard products is legally valid and meets acceptance specifications of universities, metrology institutes and Fortune Global 500 companies.
Flexible dimension customization brings greater freedom for production line renovation and laboratory upgrading. When enterprises iterate production lines or introduce new processes, the space of inspection workstations and workpiece specifications change accordingly. By adopting ZHHIMG® customized granite inspection tables, reference platforms can be tailor-made for new workstations without extensive reconstruction of workshop floors. From new energy component inspection and optical element measurement to semiconductor component verification, non-standard customized granite inspection tables can precisely match workstations, simplify the construction of the whole inspection system and provide an exclusive stable reference for precision dimensional inspection.
In short, the core value of on-demand customization of granite inspection tables lies in the platform adapting to the workstation instead of the workstation adapting to the platform. With complete stone processing capacity and ultra-precision grinding technology, ZHHIMG® customizes tabletop dimensions and functional structures according to customers’ on-site working conditions, balancing space layout, workpiece inspection requirements and long-term accuracy stability, and providing integrated non-standard reference solutions for various precision inspection workstations.
