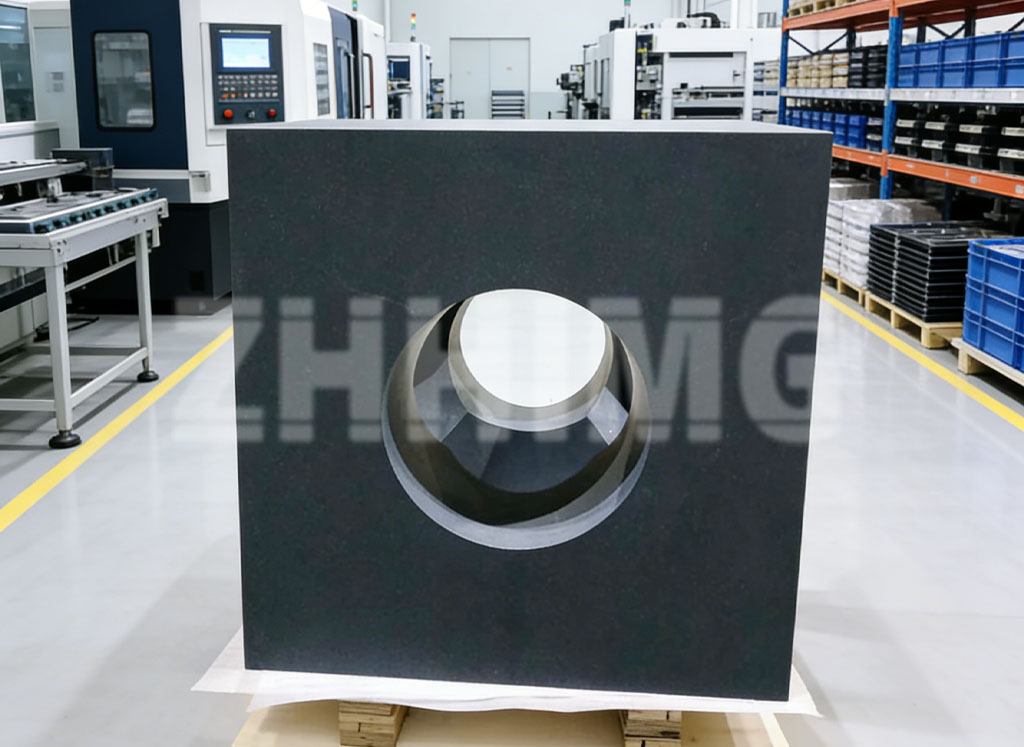

Granite Surface Plate Grades Explained: Understanding DIN 876 Standards (00, 0, 1, and 2)
When a buyer searches for “DIN 876 granite surface plate” or “granite plate grade 00 accuracy”, they are usually at the point of purchase: a drawing specifies a grade, a quotation lists a grade, and the two need to be reconciled. Understanding what DIN 876 granite surface plate grades mean — and what they do not mean — is the difference between buying the right reference surface and paying for accuracy that no one will ever use.
This guide explains the four DIN 876 grades, how their flatness tolerances scale with plate size, which applications each grade actually serves, and what a manufacturer’s inspection process must do to back a grade claim. It also covers a point that tables cannot convey: how grades are achieved in practice, and why the skill behind the lapping matters as much as the standard itself.
What DIN 876 defines — and what it does not
DIN 876 is the German standard for surface plates and is one of the most widely referenced grading systems for granite plates worldwide, alongside ASME B89.3.7 in the United States and comparable national standards such as GB/T 20428 in China. The standard defines accuracy grades for the working surface of a plate and specifies how flatness is to be verified.
Two clarifications prevent most confusion. First, a grade is a flatness class for the working surface only — it says nothing about material density, surface finish specification, or stand design, which are separate specifications. Second, tolerance values depend on the plate’s diagonal size: a grade 1 plate of 300 mm can be flatter in micrometres than a grade 0 plate of 2000 mm, and both conform to the standard. Any tolerance figure quoted without a size is meaningless.
It is also worth being precise about scale. Even grade 00 tolerances on large plates are measured in micrometres — a few micrometres over two metres. That is extraordinary precision for a mechanical surface, and it is why plates are lapped and verified in controlled-temperature rooms. But it is micrometre-class accuracy, not nanometre-class; where a datasheet or a sales page suggests nanometre flatness for a surface plate, healthy scepticism is the correct engineering response.
The four grades and what they are for
DIN 876 grades step down from 00 through 0, 1 and 2, with the allowable flatness tolerance roughly doubling at each step. The four grades serve recognisably different jobs:
Grade 00 is the reference tier. It is used for master plates that calibrate other plates, for calibration laboratories, and as the datum surface for the most demanding metrology. Achieving and verifying grade 00 requires controlled temperature, calibrated electronic levels or autocollimators, and the patience to re-lap until the surface settles. Most workshops will never need one — and buying one “to be safe” adds cost without adding capability.
Grade 0 is the inspection-room grade. It supports part verification with height gauges, dial indicators and comparators where part tolerances are tight but not laboratory-tight. For most quality departments, grade 0 is the highest grade that pays for itself.
Grade 1 is the shop-floor workhorse: setup, first-article inspection and everyday measurement next to production. It tolerates a less controlled environment than the upper grades and still delivers far more flatness than general manufacturing needs.
Grade 2 serves layout, marking, assembly and rough checking. Here the plate is a stable, flat, corrosion-free work surface rather than a measurement reference, and it is the right grade when the parts being checked carry tolerances of tenths of a millimetre.
Indicative DIN 876 flatness tolerances by size
The table below gives typical total flatness tolerances for common plate sizes across the four grades, following DIN 876′s grading logic. Treat these as orientation values: the exact tolerance for a given plate depends on the standard edition applied and the plate’s diagonal, and the binding figure is the one on the delivered inspection certificate.
| Plate size (mm) | Grade 00 | Grade 0 | Grade 1 | Grade 2 | Typical use |
|---|---|---|---|---|---|
| 300 × 200 | ~1.5 µm | ~3 µm | ~6 µm | ~12 µm | Bench inspection, gauge work |
| 400 × 250 | ~2 µm | ~4 µm | ~8 µm | ~16 µm | Small part inspection |
| 500 × 500 | ~2.5 µm | ~5 µm | ~10 µm | ~20 µm | General inspection room |
| 630 × 400 | ~2.5 µm | ~5 µm | ~10 µm | ~20 µm | Inspection room, toolroom |
| 800 × 500 | ~3 µm | ~6 µm | ~12 µm | ~24 µm | Larger part verification |
| 1000 × 630 | ~3.5 µm | ~7 µm | ~14 µm | ~28 µm | Machine shop inspection |
| 1000 × 1000 | ~4 µm | ~8 µm | ~16 µm | ~32 µm | Full-size part datum |
| 1600 × 1000 | ~5 µm | ~10 µm | ~20 µm | ~40 µm | Machine assembly, large parts |
| 2000 × 1000 | ~6 µm | ~12 µm | ~24 µm | ~48 µm | CMM base, machine bed |
| 3000 × 2000 | ~9 µm | ~18 µm | ~36 µm | ~72 µm | Large machine structures |
Notice how the grade-to-grade ratio stays close to two regardless of size, and how tolerance grows with size within a grade. This is why the selection logic is always “grade against the tolerance you verify, size against the parts you measure” — never one without the other.
How grades are actually achieved
A grade number on a drawing is easy to write and hard to deliver. Flatness at the micrometre level is produced by lapping — abrasive working of the surface against a reference — and the process is a craft as much as a procedure. Our lapping teams have more than thirty years of hands-on experience; senior workers develop a feel for the surface that instruments alone do not provide, reading how the plate responds across repeated fine passes and knowing when a surface is settling versus when it is fighting back. Experienced inspectors on our floor are sometimes described as “walking electronic levels” — they will sense a departure that a quick measurement cycle misses, before the instruments confirm it.
Craft, however, is verified, never assumed. Every plate’s flatness is measured with calibrated instruments in a temperature-controlled environment, recorded, and delivered with an inspection report that states the method, the equipment and the measured values. The grade is certified, not claimed. This is also why our plates are routinely verified against multiple international frameworks — DIN 876, ASME B89.3.7 and Chinese national standards — since customers in different industries reference different documents, and a plate certified to one system must be traceable in the customer’s terms, not the manufacturer’s.
If a plate ever drifts out of grade, the same lapping capability restores it: the material is uniform through its thickness, so a plate can be re-lapped and re-certified rather than replaced. That is a structural advantage of granite over coated or plated surfaces — the accuracy is in the material, not on it.
Choosing a grade in practice
A workable rule used across the industry: the plate’s flatness tolerance should be roughly one fifth or less of the tightest tolerance you regularly verify on it. On that rule, a shop checking parts to ±0.05 mm is comfortably served by grade 2; a quality department verifying ±0.01 mm features needs grade 0 or 1; a calibration lab building its own references is in grade 00 territory.
Size interacts with the rule. Large plates gain tolerance in absolute terms with size, so a very large plate in a modest grade may still have more absolute error than a small plate in a high grade. If you measure both large parts and tight features, the economic answer is often two plates — a large one for coverage and a small, high-grade one for critical checks — rather than one oversized plate in an expensive grade.
Environment completes the decision. Grades are measured and only remain valid in reasonably stable temperature; a grade 00 plate sitting beside a loading dock will not hold grade 00 in practice. Buying grade against environment, not just against drawing, is part of professional specification. Our granite FAQ covers grading, calibration intervals and maintenance questions in more depth.
What to expect in the inspection report
When a plate arrives, its certificate should state: the standard and grade claimed, the plate size and diagonal, the measurement method and instruments used, the ambient temperature, the measured flatness value, and the conclusion of conformity. If any of these are missing, ask. Our inspection process documentation shows what a complete verification includes, and we encourage buyers to compare certificates between suppliers — the differences are revealing.
Frequently asked questions
What is the difference between DIN 876 grade 00 and grade 0?
The allowable flatness tolerance roughly doubles from grade 00 to grade 0. At 1000 × 630 mm, that is about 3.5 µm versus 7 µm total flatness. Grade 00 is for reference and calibration duty; grade 0 is the top grade most inspection rooms actually need. Check the exact values in the standard edition your certificate references.
Is DIN 876 the same as ASME B89.3.7?
No. Both grade surface plates and use similar tier logic, but they are separate documents with their own definitions, size ranges and verification procedures. A plate is certified to one standard; do not mix tolerance values across standards. Tell your supplier which standard your quality system references so the certificate matches it.
Can a granite plate be “nanometre accurate”?
DIN 876 tolerances are micrometre values — a few micrometres even for grade 00 on large plates. Nanometre-level claims for surface plate flatness should be treated with scepticism unless backed by a measurement report with stated uncertainty. For most precision work, a certified grade 00 or 0 plate is far beyond what the measurement chain can exploit.
How long does a plate stay in grade?
With normal care, years. Granite does not wear measurably under proper use; drift comes from wear events, impacts or support changes. Annual recalibration is common practice for daily-use plates. When a plate does fall out of grade, re-lapping restores it because the material is uniform through its thickness.
Which grade should I order?
Apply the one-fifth rule: plate flatness tolerance should be about one fifth or less of the tightest tolerance you regularly verify. Then check the size against the parts and equipment that must sit on the plate, and the environment against the grade. If you send us your part tolerances, plate size requirements and room conditions, we will confirm the grade and provide the certified tolerances with the quotation.
