Granite vs. Cast Iron Surface Plates: Long-Term Accuracy and Maintenance Comparison

In precision manufacturing and inspection, the surface plate is more than just a flat reference—it is the physical foundation upon which measurement accuracy depends. For QC engineers, laboratory managers, and B2B equipment buyers, the choice between granite and cast iron surface plates directly impacts measurement uncertainty, calibration frequency, maintenance costs, and ultimately product quality.

The decision is not as straightforward as it might appear. Cast iron plates have a lower upfront cost and remain viable for certain applications. Granite plates, while carrying a higher initial price tag, offer superior long-term stability, minimal maintenance, and resistance to the environmental factors that degrade metal surfaces. Understanding the technical differences between these materials is essential to making an informed procurement decision that balances short-term budget constraints against long-term operational costs.

This technical comparison examines the material properties, long-term accuracy retention, maintenance requirements, and lifecycle value of granite and cast iron surface plates to help you select the right foundation for your metrology operations.

Material Properties: The Foundation of Performance

The fundamental differences between granite and cast iron begin at the material level. These inherent properties determine how each material responds to temperature changes, wear, corrosion, and mechanical stress over time.

Granite: Nature’s Precision Material

Granite is a natural igneous rock formed through slow crystallization under extreme geological pressure. High-density metrology-grade granite—such as ZHHIMG® black granite with a density of approximately 3100 kg/m³—offers a combination of physical properties that are exceptionally well-suited for precision measurement applications.

Key material properties include:

• Thermal Expansion Coefficient: Approximately 4.5–5.6 × 10⁻⁶/°C—roughly one-third that of cast iron. This means granite responds to ambient temperature changes far more slowly and with significantly less dimensional distortion.
• Hardness: 2–3 times harder than cast iron (equivalent to HRC >51), with Mohs hardness of 6–7. This exceptional hardness resists scratching, denting, and wear from daily use.
• Vibration Damping: Granite’s crystalline structure provides approximately 10× better vibration damping than cast iron, absorbing mechanical energy and reducing the impact of surrounding machinery vibration on sensitive measurements.
• Non-Magnetic and Non-Conductive: Granite eliminates magnetic interference that can distort electronic probe readings and does not attract metallic dust or debris.
• Corrosion Resistance: Chemically inert and naturally rust-proof, granite requires no oiling or protective coatings.

Cast Iron: The Traditional Alternative

Cast iron plates are manufactured by metal casting followed by machining and hand scraping. While they have been used for decades in mechanical workshops, cast iron presents several inherent limitations:

• Thermal Expansion Coefficient: Approximately 10–12 × 10⁻⁶/°C—roughly double that of granite. Even minor room temperature fluctuations can cause measurable dimensional changes.
• Hardness: Significantly softer than granite, with Shore hardness of approximately Hs 32–40 compared to Hs 70–80 for granite.
• Corrosion Susceptibility: Cast iron reacts with moisture and airborne contaminants to form iron oxide (rust), which causes surface pitting, micro-scale height variations, and progressive flatness deterioration.
• Magnetic Properties: As a ferrous alloy, cast iron is magnetically conductive and can interfere with sensitive electronic measuring instruments.
• Internal Stress: Residual internal stresses from casting and machining processes can gradually redistribute over time, degrading flatness accuracy.

Key Insight: Granite’s material properties—particularly its low thermal expansion, high hardness, and superior vibration damping—make it inherently more stable and durable than cast iron for precision measurement applications.

Long-Term Accuracy and Flatness Stability

How Granite Maintains Accuracy Over Decades

A well-maintained granite surface plate can retain its certified flatness for 15–25 years with periodic recalibration. This exceptional long-term stability stems from several factors:

• No Internal Stress: Granite has been naturally aged over millions of years, resulting in internal stresses that are virtually non-existent. Unlike cast iron, granite does not “relax” or warp over time.
• Uniform Wear Characteristics: When wear occurs on a granite surface, material removal is uniform. No burrs or raised edges form, and surface accuracy degrades slowly and predictably.
• No Burr Formation: If a granite plate is accidentally struck, it chips locally rather than deforming. The surrounding surface remains flat, preserving the integrity of the datum plane. In contrast, a cast iron plate struck by a heavy tool may crater and push material upward, creating a high spot that ruins measurement accuracy.
• Low Thermal Sensitivity: Granite’s low coefficient of thermal expansion means that temperature fluctuations common in production facilities cause substantially less dimensional drift. Over a 600mm span, a 5°C temperature swing introduces approximately 0.001mm of dimensional change on granite versus 0.012mm or more on cast iron.

The Challenge with Cast Iron Accuracy Retention

Cast iron plates require significantly more attention to maintain accuracy:

• Stress Relaxation: Residual casting stresses can gradually redistribute, causing the plate to warp or “breathe” over time.
• Wear and Scoring: Cast iron is softer and prone to frictional wear, surface scratching, scoring, and localized deformation under heavy loads.
• Burr Formation: Scratches and impacts create burrs—raised edges that create uneven contact points and compromise measurement repeatability.
• Corrosion Degradation: Rust formation alters the reference datum plane, directly increasing flatness measurement error and reducing repeatability.

Bottom Line: Granite maintains flatness accuracy longer and requires less frequent reconditioning than cast iron. For laboratories pursuing lean quality management systems, granite reduces downtime and maintenance labor.

Maintenance Requirements: A Critical Cost Driver

Granite: Minimal Maintenance

Granite surface plates require only periodic cleaning and calibration. The maintenance regimen is straightforward:

• Routine Cleaning: Wipe the surface with a lint-free cloth and a suitable granite cleaner. A solution of 50% water and 50% isopropyl alcohol is highly effective for cutting through light oils.
• No Oiling Required: Granite does not rust, eliminating the need for protective oil coatings that can attract dust and contaminants.
• Cover When Not in Use: A protective cover prevents dust and abrasive particles from accumulating on the surface.
• Calibration Schedule: Heavy daily-use plates are commonly recalibrated every 6–12 months; low-traffic reference plates in controlled labs can often extend beyond one year.

Cast Iron: High Maintenance, Ongoing Cost

Cast iron plates demand regular and careful maintenance to prevent degradation:

• Regular Oiling: Cast iron plates require frequent oiling to prevent rust and corrosion. The surface must be coated with rust-inhibiting oil when not in use.
• Rust Prevention: In humid environments, cast iron plates require constant vigilance. Rusting is a sign of neglect that can render a plate unusable.
• Burr Removal: Burrs on the working surface must be carefully stoned away to maintain accuracy.
• Re-Scraping: When a cast iron plate falls outside acceptable tolerances, it must be “re-scraped”—a labor-intensive process where a hand scraper removes high spots to restore original flatness. This requires specialized skill and significant downtime.
• Calibration Frequency: Cast iron plates typically require calibration every 6–12 months—more frequently than granite plates of equivalent grade.

Maintenance Cost Comparison: While cast iron plates have a lower initial purchase cost, granite surface plates often deliver better total lifecycle value because they require no rust-related maintenance, less frequent resurfacing, reduced maintenance labor, and longer calibration intervals.

When to Choose Each Material

Granite Surface Plates Are Preferred For:

• Metrology laboratories requiring ISO/IEC 17025 accredited calibration
• Semiconductor and electronics inspection where magnetic interference must be eliminated
• Aerospace and automotive precision inspection demanding sub-micron accuracy
• Research and development labs requiring long-term dimensional stability
• Optical inspection systems (AOI, CMM, laser interferometry)
• Environments with temperature fluctuations where thermal stability is critical

Cast Iron Surface Plates May Still Be Suitable For:

• Heavy-duty workshop environments where extreme precision is not required
• Applications requiring magnetic clamping or magnetic workholding
• Cost-sensitive operations with limited budgets and less demanding tolerances
• Situations where scraping adjustments are needed for specific setup requirements
• Layout work and general production checking where tolerances are not pushing equipment limits

Granite’s Superiority in Precision Metrology

Granite surface plates outperform cast iron in nearly every factor affecting precision metrology—especially in corrosion resistance, magnetic neutrality, wear uniformity, and thermal stability. The material’s natural properties make it the undisputed standard for modern metrology applications.

Conclusion: The Long-Term Value of Granite

Choosing between granite and cast iron surface plates requires balancing upfront cost against long-term performance and maintenance expenses. While cast iron plates may offer a lower initial purchase price—typically 20–30% less than granite equivalents—granite plates deliver superior total lifecycle value.

The decision framework is straightforward:

• If your application demands micron-level precision, long-term dimensional stability, and minimal maintenance—choose granite.
• If your application involves heavy-duty workshop operations, magnetic workholding, or cost-sensitive environments where extreme precision is not required—cast iron may still be viable.
• If your temperature fluctuates, your environment is humid, or your instruments are electronic—granite is the only rational choice.

Granite’s longer service life, reduced maintenance requirements, and superior accuracy retention make it a strategic long-term investment for precision engineering companies and quality-driven manufacturers.

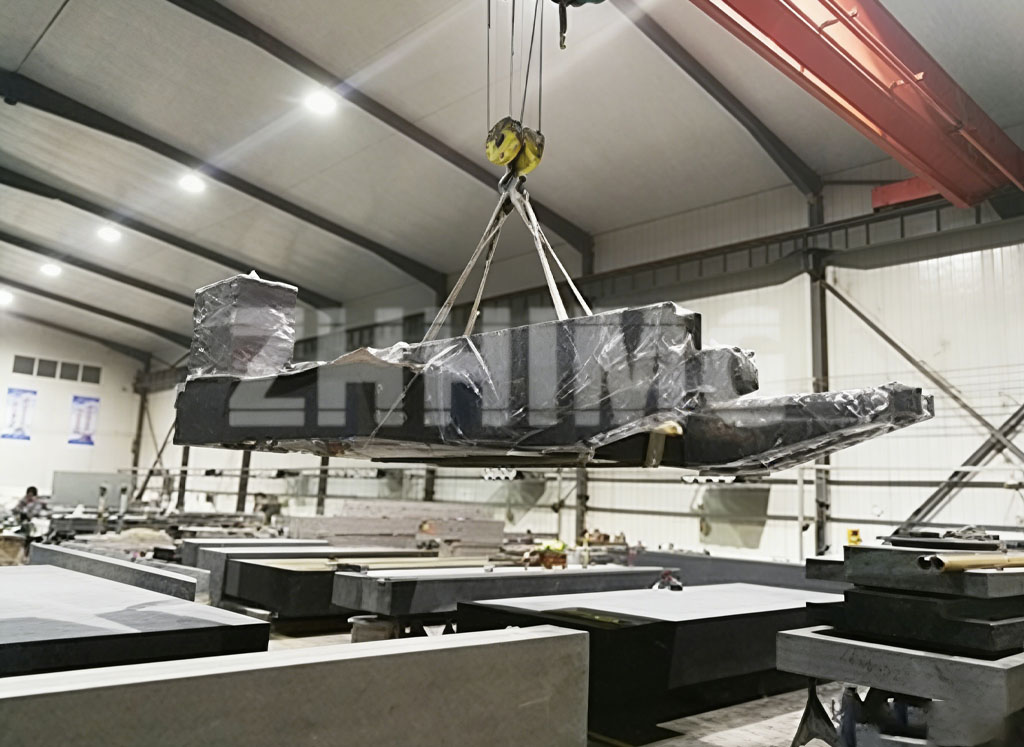

For detailed product specifications, custom sizing options, and expert guidance on selecting the right surface plate for your application, visit www.zhhimg.com. ZHHIMG® manufactures precision granite surface plates to DIN 876, ASME B89.3.7, and JIS standards, with sizes ranging from 300×200 mm to 7000×4000 mm and grades from 00 to 1.
