In semiconductor micro-nano manufacturing, tiny vibration is one of the most invisible and destructive factors affecting yield. Even nanoscale micro-tremors can cause optical path offset, wafer misalignment, and pattern distortion during lithography, optical inspection, and laser micromachining processes, ultimately triggering batch chip defects. Modern semiconductor production lines face complex vibration sources, including external ground vibration, self-excited vibration from high-speed moving motor modules, low-frequency vibration generated by ventilation and air compression systems, and subtle shaking caused by workshop operation. While most manufacturers rely on air vibration isolators for external vibration isolation, the equipment’s own base material determines whether internal vibration can be eliminated fundamentally. As the core structural carrier of ultra-precision equipment, high-performance granite platforms form the most critical primary vibration suppression barrier for semiconductor manufacturing and effectively stabilize production yield.
A common misunderstanding in precision manufacturing is that external vibration isolators can solve all vibration problems. In fact, shock-absorbing components only block low-frequency vibration transmitted from the ground and cannot eliminate micro-vibration generated inside the equipment during high-speed operation. Metal bases, though high in rigidity, feature low material damping. Once vibration occurs, it will continuously reflect, resonate, and amplify inside the metal structure, forming persistent micro-displacement on the processing and detection plane. Such internal vibration cannot be completely isolated by external shock absorption systems, leading to drifting detection data, repeated positioning errors, and inconsistent etching and cutting accuracy, which are the hidden causes of unstable yield in mass semiconductor production.
Different from metal materials that easily conduct and amplify vibration, high-quality precision granite has inherent high damping characteristics, which fundamentally change the vibration energy dissipation logic of semiconductor equipment. The dense and uniform internal crystal structure of ZHHIMG® exclusive black granite contains no pores, internal cracks or residual stress. When vibration energy acts on the granite base, it will be quickly consumed and converted into tiny heat energy through friction between mineral crystal interfaces, rather than forming continuous vibration transmission. This unique physical property enables the granite platform to rapidly attenuate micro-tremors, suppress structural resonance, and restore the equipment working plane to a stable state in an instant, realizing efficient vibration absorption at the source.
The excellent vibration suppression performance is also guaranteed by professional manufacturing process and systematic workshop environment optimization. All granite blanks undergo long-term natural stress relief to avoid low-frequency jitter caused by structural stress release during long-term service. Adopting ultra-large high-precision grinding equipment for integral forming and finishing ensures overall uniform rigidity and consistent damping performance of the entire platform, avoiding local vibration dead zones. Matched with professional constant-temperature and constant-humidity dust-free workshops, independent foundation structures and vibration isolation trenches effectively cut off lateral vibration transmission from the ground. Silent traveling cranes further eliminate auxiliary vibration interference, building a full-dimensional vibration control system that combines material advantages, structural optimization and environmental protection.
The vibration suppression capability of granite platforms brings tangible yield improvement in core semiconductor processes. For AOI optical inspection, X-ray defect detection and industrial CT equipment, ultra-stable benchmark planes eliminate image blurring and data deviation caused by vibration, greatly reducing misjudgment and missed detection rates. For femtosecond and picosecond laser micro-processing equipment, effective vibration control ensures fixed laser focus and uniform etching line width, avoiding defective chips caused by drifting processing tracks. In high-precision scenarios such as linear motor motion platforms, perovskite coating equipment and new energy battery detection devices, the stable vibration-free working state of granite bases ensures consistent repeated positioning accuracy of the equipment, effectively reducing random processing errors and product scrap rate.
In terms of long-term yield stability, high-grade precision granite has irreplaceable advantages over ordinary marble and composite materials. Ordinary marble has loose texture, uneven internal structure and unstable damping performance, which is easily affected by temperature and humidity changes, resulting in declining vibration suppression effect after long-term operation. In contrast, ZHHIMG® precision granite features extremely stable physical and chemical properties. Its internal crystal structure and damping index will not attenuate with the extension of service time, maintaining long-term and stable vibration suppression capacity. It effectively reduces frequent equipment calibration and downtime maintenance, avoids production interruption and yield fluctuation, and provides continuous and reliable stability guarantee for mass semiconductor manufacturing.

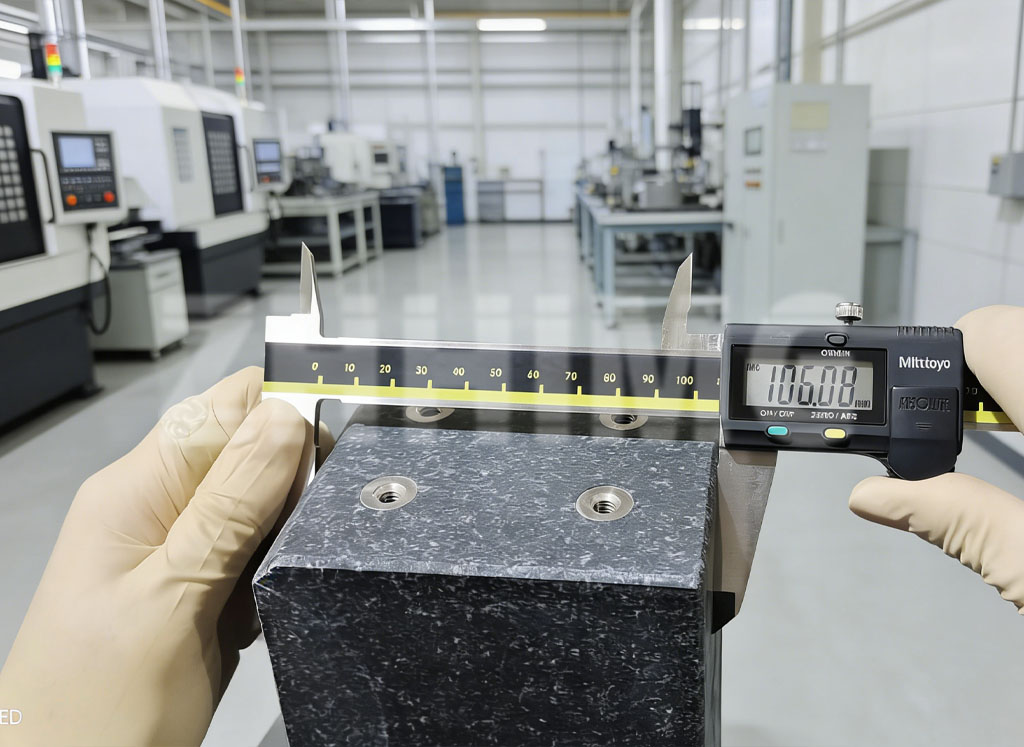

Ultra-precision testing and standardized process control further quantify and guarantee the vibration suppression effect. Equipped with world-class measuring instruments such as German Mahr gauges, Swiss WYLER electronic levels and British Renishaw laser interferometers, every granite platform undergoes strict vibration detection and flatness calibration. All measuring tools have traceable national metrology certification and comply with global mainstream manufacturing standards. Supported by senior polishing technicians with decades of ultra-precision processing experience, the platform realizes perfect matching of rigidity and damping performance, completely eliminating hidden risks of local resonance and precision attenuation.
Conclusion
Semiconductor yield improvement is a systematic project of full-link vibration control. External isolators are responsible for blocking external vibration interference, while granite platforms undertake the core task of absorbing and eliminating internal equipment vibration. Relying on inherent high damping, uniform structural rigidity, stable physical properties and ultra-precision manufacturing technology, precision granite platforms suppress micro-vibration resonance, stabilize the equipment benchmark plane, and eliminate random processing errors. They provide solid underlying stability support for high-precision inspection, micro-nano processing and mass stable production of semiconductor equipment, and have become an indispensable core foundation for high-yield and high-quality ultra-precision manufacturing.
