How to Choose a Granite Surface Plate: Size, Accuracy Grade, Support and Calibration

Buying a granite surface plate looks simple on the surface: pick a size, pick a grade, compare prices. In practice, two plates with almost identical spec sheets can perform very differently on your floor. The difference usually comes down to five decisions that should be made before you request a quotation: the application, the size, the accuracy grade, the support method, and the calibration service behind it. This guide walks through how to choose a granite surface plate step by step, so you can compare suppliers on equal terms.

1. Start With the Application, Not the Catalogue

The first question is not “which grade?” but “what will this plate actually do every day?” The three most common applications place very different demands on a plate:

• Workpiece inspection and incoming quality control. A general-purpose granite surface plate in a standard inspection grade is usually sufficient, provided the support and calibration are correct.
• Metrology and calibration laboratories. Lab plates are specified to tighter grades and used in temperature-controlled rooms. Here the grade, the environment and the calibration interval must be planned together.
• Assembly and equipment bases. When a plate serves as the reference base for assembling precision machines, flatness can sometimes be relaxed, but load capacity, threaded inserts, ledges and machined features become the priority.

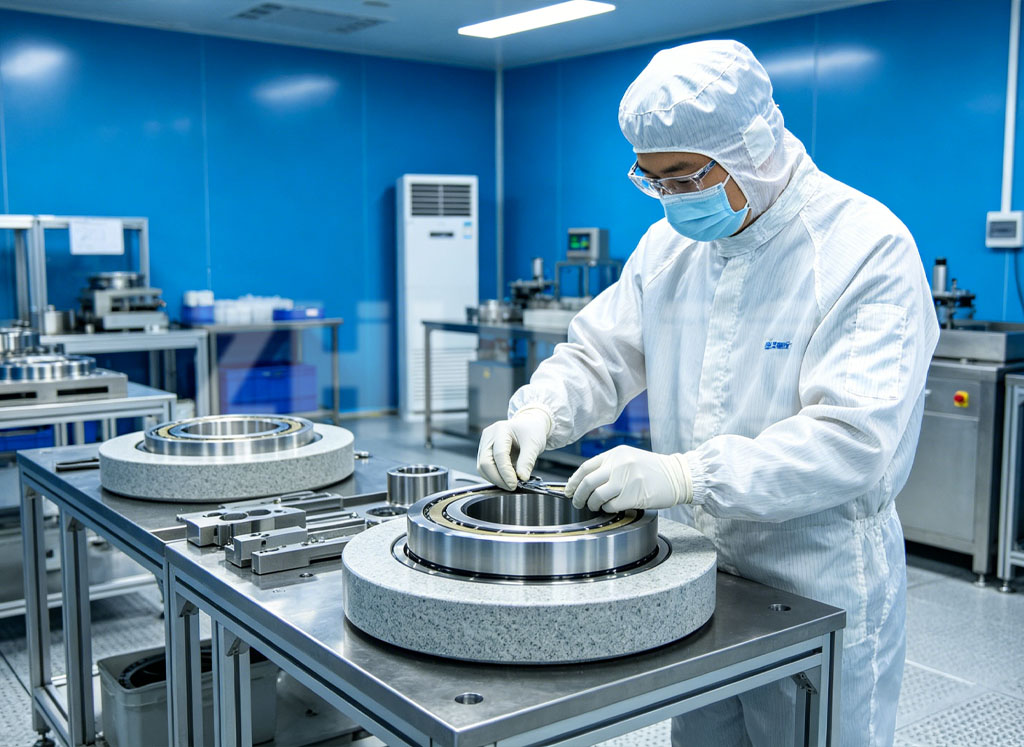

Granite is also a natural fit for cleanrooms and electronics environments: it does not rust, it does not generate the particulate that painted cast iron eventually does, and its low thermal conductivity makes it less sensitive to touch and air temperature changes.

2. Size: Workpiece First, Then the Room

Size selection starts with the workpiece, not the plate. Confirm the largest part you will place on the plate, then add space for the measuring instruments, for moving the probe or gauge around the part, and for the operator’s hands and fixtures. A plate that is barely larger than the workpiece is frustrating to use and wears faster in the central zone.

Then check the other direction: your room. Measure the available floor area or table space, doorways, aisles, elevator and lifting equipment along the delivery route, and the floor loading capacity. Remember that plate thickness increases with size to keep the plate rigid, so weight grows quickly. A well-chosen size is one your team can still install without drama.

3. Accuracy Grade: Compare Standards, Not Just Grade Names

Granite surface plate accuracy grades are defined in different standards, such as Chinese GB and JJG series, ISO, ASME, DIN and JIS documents. A common and costly mistake is treating grade names like “00″, “000″ or “AA” from different standards as if they were automatically equivalent. They are not: each standard has its own tolerance tables, and the permitted flatness deviation depends on both the grade and the nominal size (diagonal) of the plate.

When comparing quotations, ask the supplier to state:

• Which standard and which edition the grade refers to.
• The specific flatness tolerance value for your plate size under that standard.
• Whether both overall flatness and local (region) flatness are guaranteed.

Tolerance figures should always be confirmed by qualified technical staff against the current version of the relevant standard. As a manufacturer, we verify every tolerance against the specific standard and edition stated on the order before production, and we can provide the corresponding tolerance table for your review with the quotation.

One practical note: a higher grade is not always a better purchase. The grade should match your measurement uncertainty requirement and your environment. An oversized grade in an unstable workshop delivers no extra value, while an undersized grade in a calibration lab invalidates the work done on it.

4. Support: the Stand Is Part of the Plate

A granite plate reaches its stated flatness in a defined support condition. That is why the stand should be treated as part of the measuring instrument, not an accessory. A properly designed granite surface plate with stand arrives as a matched system: a welded steel stand sized to the plate, leveling mounts that carry the plate at the correct support points, and vibration isolation where the floor demands it.

Support design matters because granite is extremely stiff in compression but heavy, and an incorrectly supported plate can twist by fractions of a millimetre, far more than the flatness tolerance you paid for. For smaller plates, a rigid stand with three leveling points is a common solution; larger plates use additional support points with load correctly shared. Working height is worth deciding deliberately as well: a stand sized for comfortable, ergonomical operation reduces operator fatigue during long inspection sessions, and lockable casters or a cabinet base can add mobility or storage.

Our standard practice is to mate each plate with its stand in the workshop, level the assembly at the defined support points, re-inspect the working surface in that condition, and only then pack plate and stand for shipment. That way the flatness you receive is the flatness we measured.

5. Calibration: Know What the Report Is Telling You

A calibration report should let you verify what you paid for, not just exist as a stamp. Before ordering, confirm what the report includes. A complete report for a granite surface plate typically identifies:

• The plate (serial or workpiece number, size, material) and the customer.
• The standard and grade referenced for the order.
• The measured flatness result of the working surface.
• The measurement method and equipment used, for example electronic levels or an autocollimator with a stepped line or diagonal procedure, and the traceability of those instruments.
• The ambient conditions during measurement, especially temperature.
• The calibration date and the recommended recalibration interval.

When you read the report, check that the declared standard, edition and plate size match your order, then compare the measured flatness against the tolerance table of that same standard for that size. Keep the report with the plate’s maintenance file, and plan recalibration according to usage: plates in daily production inspection typically need shorter intervals than lab plates in controlled rooms.

6. Information to Prepare Before You Ask for a Quotation

• Plate size (length x width x thickness) or the workpiece size you need to cover.
• Required accuracy standard, edition and grade, or your measurement uncertainty target so we can recommend one.
• Application: inspection, laboratory metrology, or assembly base.
• Workpiece weight and any fixtures that will sit on the plate.
• Support requirements: stand or no stand, working height, casters, cabinet, vibration isolation.
• Machining requirements: threaded inserts, ledges, slots, special holes.
• Environment: workshop, laboratory or cleanroom; temperature range.
• Whether first calibration and a calibration report are required.
• Quantity and destination for delivery terms.

Making these five decisions in order, application, size, grade, support and calibration, turns a confusing comparison into a straightforward one, and it gives every supplier you contact the chance to quote accurately. Send us your required plate size, accuracy standard, application and support requirements for a quotation.
