A precision granite surface plate is often the quietest tool in a metrology room, yet it supports some of the most important decisions made there. Height gauges, indicators, comparators, fixtures, master parts, and inspection setups all depend on its flatness.
Granite does not rust, does not require painting, and is resistant to many workshop contaminants. Those advantages sometimes lead users to assume that it needs little attention. In practice, a granite plate can lose functional accuracy through localized wear, handling damage, uneven loading, contamination, poor support, and uncontrolled temperature conditions.
The good news is that most preventable flatness problems develop gradually. A disciplined routine of cleaning, correct use, environmental control, and periodic granite surface plate calibration can extend service life significantly. For quality managers, laboratory technicians, and engineering purchasers, the key is to treat the plate as a calibrated datum—not as a convenient bench.
Flatness Is More Than a Single Number
A granite surface plate is typically evaluated through two related characteristics:
- Overall flatness: The variation of the complete working surface relative to its reference plane.
- Repeatability: The local consistency of the surface when a measuring instrument is moved over a short path or repeated at different positions.
A plate may remain close to its overall flatness specification while developing a worn area near the center, especially where the same fixture, height gauge, or part is used every day. That local wear can affect comparison measurements long before it becomes obvious to the operator.
In routine calibration practice, technicians assess both the plate’s global geometry and localized variation. Electronic levels, autocollimators, precision repeat-reading gauges, and laser-based methods may be used depending on the plate size, accuracy grade, and applicable procedure. Calibration and resurfacing providers commonly verify repeat readings, identify high and low areas, and then use controlled lapping to restore grade-specific flatness when required.
The practical lesson is simple: do not wait for a failed annual calibration to find out that a working zone has worn. Monitor the plate between formal calibrations.
Keep the Working Surface Clean
Fine abrasive particles are one of the most common threats to a granite measuring plate. Grinding dust, metal chips, burrs, grit from footwear, and residues beneath a workpiece can create local high points or scratch measuring tools. Even when granite itself is relatively hard, debris trapped under a part can affect the measurement setup.
Clean the plate before and after use, especially after grinding, machining, or handling parts that may carry cutting fluid or dust. First remove all gauges, fixtures, parts, and loose material. Use a clean, lint-free cloth and a cleaner intended for precision granite or approved by the plate supplier. Wipe the entire surface rather than only the visible work zone.
Avoid abrasive pads, sanding materials, wire brushes, and aggressive scraping. These can change the surface texture, spread contamination, or damage accessories used on the plate. Water-based products and fast-evaporating solvents should be evaluated carefully because they may temporarily cool the surface or leave moisture-related issues if not dried thoroughly. Whichever cleaning method is approved for the facility, allow the granite plate to return to a stable temperature before critical measurement work begins. Industry maintenance guidance commonly recommends cleaning frequently, covering the plate when idle, and allowing a cleaned plate to normalize before use.
A useful workshop habit is to keep a dedicated cleaning kit beside the plate: lint-free wipes, approved cleaner, a soft brush for non-contact dust removal, and a protective cover. It is a small investment compared with the cost of re-lapping or unplanned recalibration.
Prevent Localized Wear
The center of a surface plate naturally becomes the busiest area. Operators place master parts there. Height gauges travel along the same paths. Fixtures are installed and removed in one preferred location. Over time, concentrated use can create a local low area.
Spread work across the usable surface. If the inspection procedure allows it, relocate fixtures and gauges periodically. Place large or heavy workpieces on suitable pads or supports that distribute load. Do not drag parts, fixtures, or gauge bases across the plate; lift and place them carefully.
Rotating the plate may be practical for some smaller installations, although this should only be done with an approved lifting method and after confirming that the stand, leveling arrangement, utilities, and safety plan permit it. Maintenance sources recommend varying the work area and, where feasible, periodically rotating a plate to reduce concentrated wear.
The surface plate should not become a storage table. Avoid leaving tools, boxes, fixtures, unfinished parts, food, or drink on it. A plate used as a general workbench receives impacts, spills, and irregular loading that have nothing to do with metrology.
Support, Leveling, and Handling Matter
A granite plate is strong under compression but can be damaged by point impacts and improper lifting. The plate should rest on the manufacturer-recommended stand or support arrangement. For many plates, support locations are selected to minimize deflection under the plate’s own weight. Changing those locations without engineering review can affect the working surface.
Check that the stand is stable, the leveling points are secure, and the plate is not rocking. Recheck after relocation, after significant floor work, or after a heavy impact nearby. Leveling does not correct flatness, but a stable level installation makes daily measurement work more reliable and prevents unwanted stress.
When moving a plate, use its designated lifting holes, approved lifting hardware, and trained personnel. Never place forklift tines directly against granite. Use appropriate protective material and lifting methods that prevent edge damage. Guidance from calibration specialists specifically warns against direct metal-fork contact with granite and recommends using the supplied support system.
Do not over-tighten hold-down bolts, clamps, or mounted fixtures. Excessive fastening force can introduce localized stress, particularly near inserts, holes, or thin sections. Follow the supplier’s specified torque values.
Control the Measurement Environment
Granite is stable, but not dimensionally unchanged under all conditions. Temperature gradients are more problematic than a uniform temperature shift. Direct sunlight, cold air from an open door, air-conditioning discharge, nearby heaters, and warm machine components can create uneven thermal conditions across the plate.
Place the granite surface plate away from windows, exterior doors, vibration sources, and rapid airflow. Use an appropriate controlled environment for the measurement tolerance required. Allow the plate, gauges, master artifacts, and workpieces to stabilize together before final comparison measurements.
Humidity should also be controlled as part of general metrology practice. Granite itself does not rust, but steel gauges, fixtures, and workpieces can corrode, transfer contamination, or leave residues on the surface.
For high-accuracy inspection, record ambient temperature and, when necessary, surface temperature at several points on the plate. This provides more useful process information than assuming the room thermostat represents the actual measurement condition.
Inspect Before Damage Spreads
Perform a quick visual and tactile check at the start of each shift. Look for chips, scratches, stains, loose inserts, burrs transferred from parts, and unusual roughness. Run a clean hand lightly across the surface only after it has been cleaned; a change in texture can reveal contamination that is not visually obvious.
Small nicks sometimes create raised burrs on a workpiece or fixture rather than on the granite itself. Remove metal burrs from parts before placing them on the plate. If the granite surface has a minor raised edge or damage, do not attempt aggressive repair with shop tools. Consult a qualified granite calibration or resurfacing provider. Maintenance guidance notes that minor burrs may be addressed with an appropriate silicon-carbide stone, but this should be done only by trained personnel using a controlled method.
Set a Calibration Interval Based on Risk
Annual calibration is a common baseline, but it is not correct for every plate. A lightly used laboratory plate may require a longer verified interval. A heavily used production-inspection plate, especially one carrying frequent fixtures or large parts, may need calibration every six months or more often.
Set the interval using actual use, accuracy grade, historical calibration results, measurement risk, and internal quality-system requirements. Between external calibrations, use a repeat-reading gauge or internal verification method to identify emerging local wear. Industry guidance recommends annual calibration at minimum for many surface plates, with more frequent checks for heavily used equipment.

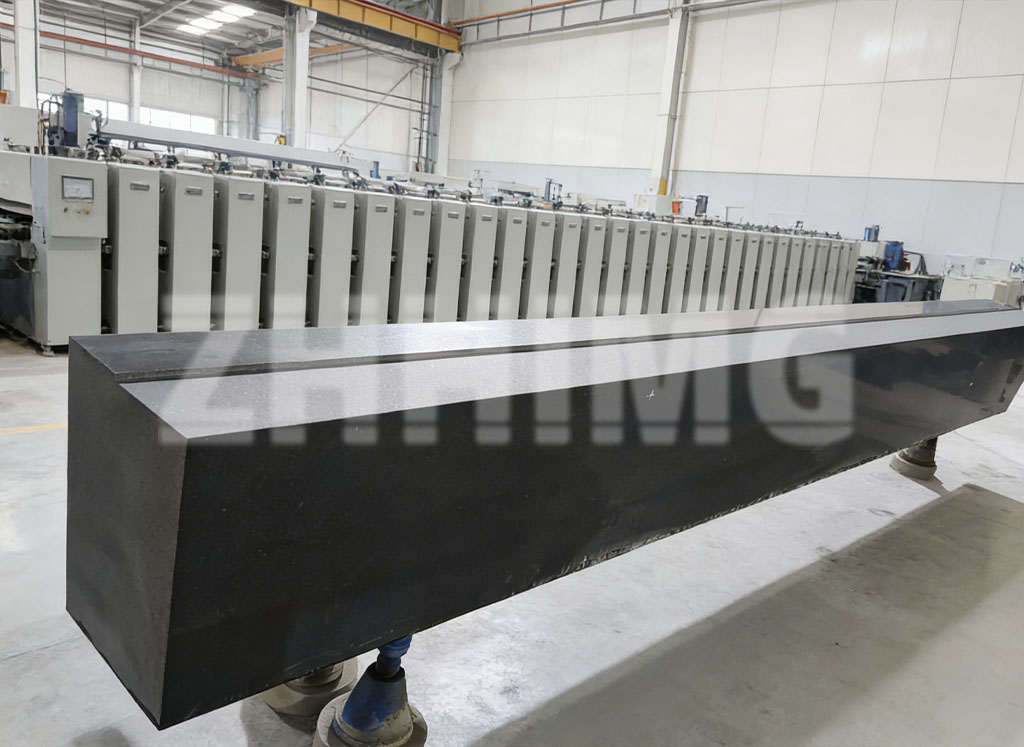

At ZHHIMG®, precision granite plates and measuring components are produced with controlled grinding, lapping, and calibrated inspection equipment. Our practical recommendation to users is consistent: protect the datum from day one. Clean it, load it correctly, monitor its repeatability, and verify it before critical measurements depend on it.
A well-maintained precision granite surface plate can remain a dependable reference for many years. Its long-term accuracy is not accidental; it is the result of daily handling discipline supported by a sensible calibration plan.
