Mineral Casting vs. Traditional Cast Iron: A Comparative Analysis for Machine Tool Structures

In ultra-precision machining, semiconductor manufacturing, and advanced metrology, structural stability dictates part quality. As sub-micron tolerances become standard across industries, engineers face a fundamental material selection choice for machine beds: traditional cast iron (gray iron or ductile iron) versus composite mineral casting (polymer concrete).

Both materials carry distinct engineering trade-offs. Evaluating their mechanical behavior, dynamic performance, and total cost of ownership clarifies which material suits specific precision applications.

Dynamic Performance and Vibration Damping

Vibration limits cutting speed, surface finish, and tool life. High-frequency chatter and dynamic resonance during high-speed milling or optical positioning degrade overall throughput.

• Damping Logarithmic Decrement: Mineral casting exhibits a logarithmic decay rate roughly six to ten times higher than gray cast iron (HT250/HT300).

• Resonance Settling Time: A machine bed with superior material damping absorbs kinetic energy faster when axes accelerate or stop rapidly. Mineral casting settles quickly, minimizing optical interference and step-and-repeat positioning delays.

• Structural Rigidity: Cast iron maintains a higher modulus of elasticity (100 to 140 GPa) compared to mineral casting (30 to 40 GPa). To achieve equivalent static stiffness under heavy structural loads, mineral casting designs require thicker wall sections or internal ribbing.

Thermal Behavior in Precision Environments

Thermal drift causes linear positioning errors that calibration software struggles to compensate for dynamically. Room temperature fluctuations, motor heat, and friction along linear guides impact structural geometry differently depending on the base material.

• Thermal Capacity & Conductivity: Cast iron conducts heat rapidly (around 45 W/m·K), causing localized expansion when components heat up unevenly. Mineral casting acts as a thermal insulator (around 1.5 to 2.0 W/m·K) with high thermal capacity. It resists rapid environmental temperature spikes, keeping structural geometry stable over long operating cycles.

• Coefficient of Thermal Expansion (CTE): Gray cast iron exhibits a CTE of approximately 10 to 12 x 10^-6 / K. Mineral casting formulations can be adjusted using specific quartz and granite aggregate distributions to achieve CTE values matching internal steel inserts or linear guide rails (around 12 x 10^-6 / K), preventing internal thermal stresses.

Material Property Comparison

Manufacturing Processes and Integration Flexibility

Manufacturing workflows differ substantially between molten metal foundries and cold-polymer casting processes.

Cast Iron Workflow:

Iron foundries melt raw scrap and pig iron above 1,400 degrees Celsius. After casting, the raw structure undergoes extensive stress-relief annealing or outdoor aging to remove internal thermal stresses. Subsequent steps require heavy milling, planning, and manual precision scraping on reference surfaces.

Mineral Casting Cold Process:

Mineral casting mixes high-purity natural granite/quartz aggregates with epoxy resins, poured directly into precision molds at ambient temperatures. This cold-casting technique eliminates thermal stress accumulation, meaning parts require no post-cast thermal annealing.

[Raw Materials: Granite Aggregate + Epoxy]
                 │
                 ▼
     [Cold Casting into Mold]
                 │
                 ▼
[Embedded Precision Inserts & Fluid Channels]
                 │
                 ▼
[Ambient Curing & Direct Demolding (No Stress Relief)]

This manufacturing process allows engineers to cast threaded steel inserts, anchor plates, cooling channels, and cable conduits directly into the structure before curing. Integrating functional elements cuts secondary machining requirements and downstream assembly costs.

Engineering Application Guidelines

Neither material solves every structural challenge. Choosing between them depends on specific operational demands:

• Select Cast Iron when: The application involves heavy metal cutting, high static point loads, severe structural bending forces, or small batch sizes where mold tooling costs are prohibitive.

• Select Mineral Casting when: Operating high-speed positioning stages, AOI optical inspection tools, PCB drilling units, or semiconductor equipment where thermal inertia and rapid vibration attenuation take priority over raw tensile strength.

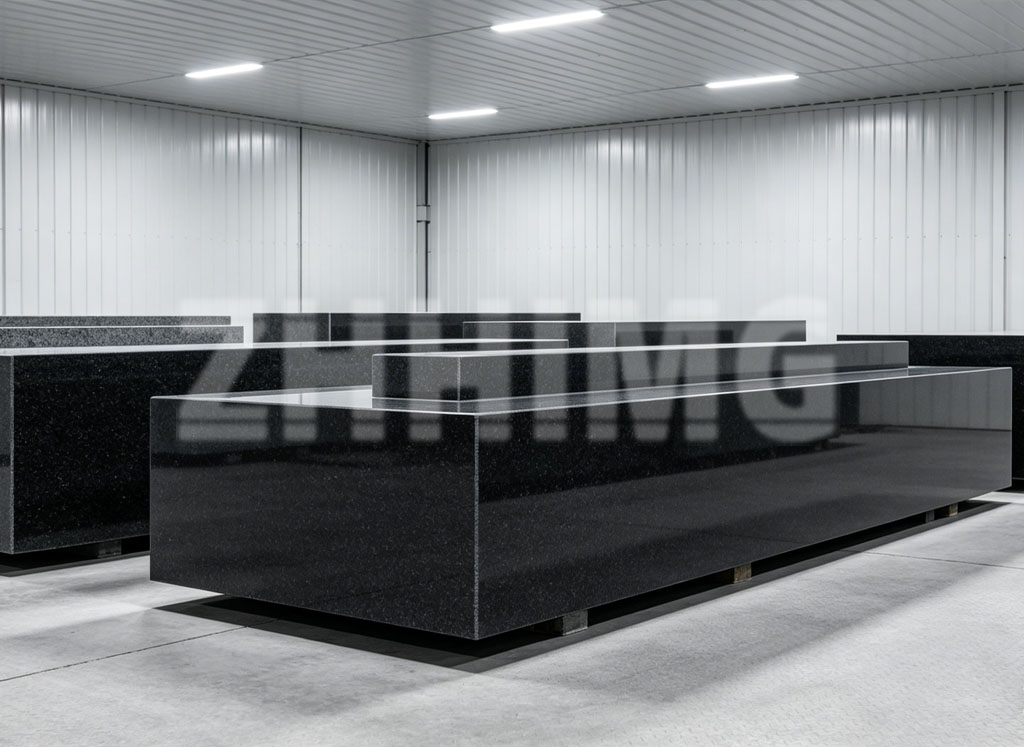

At ZHONGHUI Group (ZHHIMG®), our experience with high-density granite components, precision ceramics, and advanced mineral casting bases shows that machine performance relies on matching material physics to structural roles. For extreme sub-micron and nanometer-scale measuring equipment, hybrid designs combining granite reference platforms with custom mineral casting or air bearing structures provide long-term stability and dynamic dampening.
