For quality inspectors and lab managers, the reference tools used every day — surface plates, straightedges, square rulers, V-blocks — are easy to take for granted until an audit, an ISO 17025 assessment, or an unexplained measurement discrepancy forces a closer look. Unlike active measuring instruments, granite measuring tools rarely fail dramatically; they drift slowly, often below the threshold of casual observation, until accumulated wear or an unverified calibration history quietly undermines the accuracy of every measurement taken against them.
This creates a recurring sourcing challenge: how do you evaluate whether a granite surface plate or measuring tool is genuinely suited to metrology-grade work, versus a lower-grade product marketed with similar terminology? This article outlines the technical properties that separate precision-grade granite measuring tools from generic stone products, and what documentation buyers should request before purchasing.

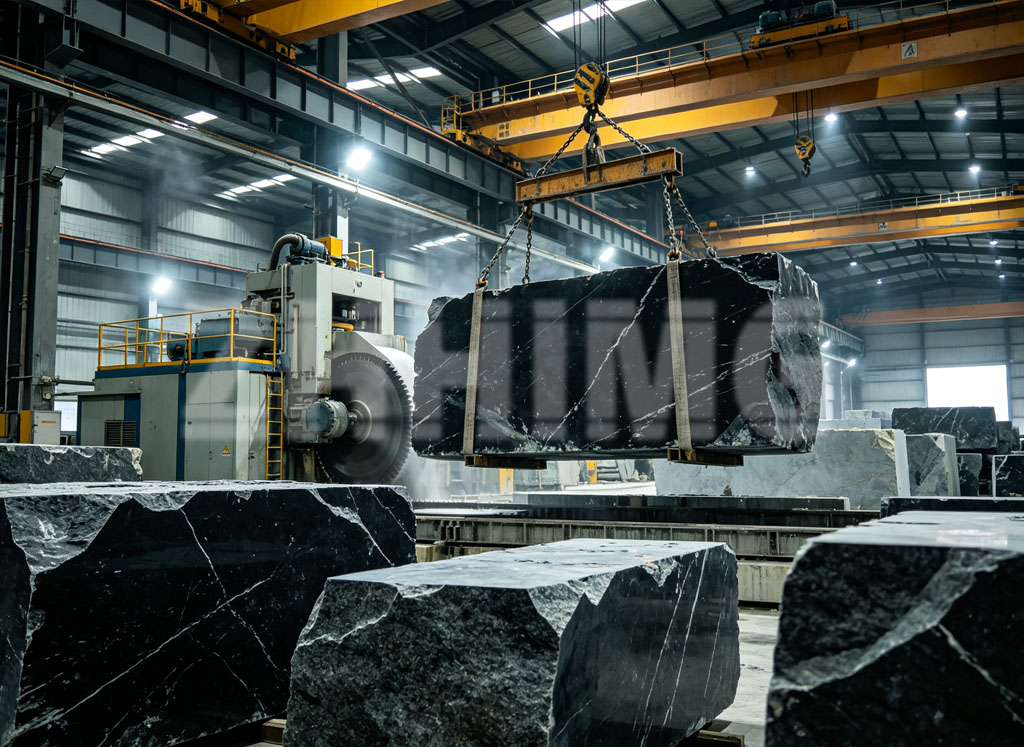

Why Granite Remains the Reference Material for Measuring Tools
Granite has been the standard base material for surface plates and precision measuring tools for decades, and the reasons are rooted in material physics rather than tradition alone.
Dimensional Stability Over Time
Unlike cast iron, granite has no grain structure that can shift or relieve stress unpredictably over time, and it does not corrode, rust, or develop burrs from repeated contact. This means a properly manufactured granite surface plate holds its calibrated flatness far longer than a metal equivalent under normal shop conditions — a critical property for a tool that is meant to serve as a dimensional reference for years.
Hardness and Wear Resistance
Granite used for precision measuring tools typically falls in the range of 6–7 on the Mohs hardness scale. This hardness level provides strong resistance to surface wear from the repeated contact of gauges, indicators, and workpieces, helping the working surface retain its calibrated flatness across a longer service interval than softer materials.
Low, Stable Thermal Expansion
Granite’s coefficient of thermal expansion is low and stable relative to metals, typically in the range of 5–8 × 10⁻⁶/°C depending on mineral composition and density. In inspection labs where ambient temperature isn’t always tightly controlled, this property minimizes the dimensional drift that would otherwise introduce measurement uncertainty — particularly important for surface plates used as the baseline reference for other instruments.
Key Granite Measuring Tools and Their Applications
Precision granite measuring products generally fall into two categories: granite bases (used as structural platforms within equipment) and granite measuring tools (used directly by inspectors as reference standards).
Granite Surface Plates
The granite surface plate is the most widely used precision reference tool in quality labs. Key considerations include:
- Flatness grade, typically specified per DIN 876 (Grade 00, 0, 1, or 2) or an equivalent national standard
- Surface finish and roughness, which affects both accuracy and wear resistance
- Size and thickness relative to intended load and working area
- A calibration certificate showing traceability to a national metrology institute
Properly manufactured granite surface plates can achieve flatness in the sub-micron range and, for select high-grade applications, approach nanometer-level flatness — which is why they remain the default reference standard in calibration and inspection labs worldwide.
Granite Straightedges and Square Rulers
Granite straightedges (straight rulers) and square rulers (tri-square rulers) are used for equipment assembly, machine tool alignment, and precision calibration checks. Buyers should evaluate:
- Straightness or squareness tolerance, often specified to within 1 µm for high-precision applications
- Edge and face finish quality
- Material density, since it correlates with the tool’s long-term stability under repeated handling
Granite V-Blocks and Parallels
Granite V-blocks and parallels are used to hold cylindrical or flat workpieces during inspection, marking, or assembly. Because these tools contact the workpiece directly and repeatedly, wear resistance and dimensional consistency across the full set are especially important — mismatched parallels, even by a few microns, can introduce systematic error into an otherwise careful measurement setup.
Standards, Calibration, and What to Verify Before Purchase
A granite measuring tool is only as trustworthy as the process used to manufacture and verify it.
Reference Standards
Reputable manufacturers grind and inspect granite measuring tools against internationally recognized standards, including:
- DIN 876 / DIN 875 / DIN 650 (Germany) — widely used flatness grading for surface plates
- ASME and GGG-P-463C family standards (United States)
- JIS (Japan)
- GB national standards (China)
- BS 817-1983 (United Kingdom)
Manufacturers that train technicians across multiple regional standards — rather than a single national benchmark — are generally better positioned to support buyers with multi-national supply chains and varying documentation requirements.
Calibration Equipment and Traceability
Flatness and straightness claims should be backed by measurements taken on equipment that is itself calibrated and traceable. Representative instrumentation used for granite tool inspection includes:
- Mahr indicators (0.5 µm resolution)
- Mitutoyo dial indicators, digital calipers, and roughness testers
- WYLER electronic levels (Switzerland)
- Renishaw laser interferometers (UK)
Before purchasing, ask the supplier for a calibration certificate that traces back to a recognized national or regional metrology institute. This single document request is one of the fastest ways to distinguish a genuinely metrology-grade supplier from one relying on uncalibrated or self-verified equipment.
Material Verification
Because granite quality varies significantly by source and grade, and because marble is sometimes substituted for granite by lower-cost suppliers, it’s reasonable to request:
- Material density data (high-density black granite typically runs around 3,100 kg/m³)
- Material origin and certification
- A sample inspection report showing flatness or straightness measured against a stated standard
Conclusion
Granite surface plates and measuring tools sit quietly at the foundation of dimensional quality control, and their reliability depends on factors that aren’t always visible on a basic spec sheet — material density, grinding precision, standards compliance, and calibration traceability. For QC engineers and lab managers specifying surface plates, straightedges, square rulers, or V-blocks, requesting flatness grade documentation, calibration certificates, and material verification data is a practical way to confirm a tool is genuinely suited to precision measurement work, not just labeled as such.
ZHHIMG® manufactures granite surface plates and measuring tools using high-density black granite, ground and inspected against DIN 876 and equivalent international standards, with calibration equipment traceable to national metrology institutes. To review flatness grades and specifications, or to request a custom measuring tool, visit www.zhhimg.com.
