Procurement teams sourcing granite bases, surface plates, or precision beds for the first time often approach it like sourcing any other machined part — compare quotes, compare lead times, pick a supplier. Granite components don’t quite work that way, because the visible specs on a quote sheet (size, grade number, price) can look almost identical between a supplier whose product will hold tolerance for a decade and one whose product will drift within a year. Here’s what actually differentiates them.
1. Confirm the material, not just the grade
“Granite” gets used loosely in some quotes to describe stone that’s actually a lower-density composite or, in worse cases, dyed marble. Ask directly for the density specification (genuine precision black granite typically runs around 3,000–3,100 kg/m³) and, where possible, a material certificate. This single question filters out a meaningful share of underqualified suppliers before any further negotiation.
2. Ask which standard the calibration references
A “Grade 0″ or “Grade AA” claim is meaningless without naming the standard behind it — DIN 876, JIS B 7513, ASME B89.3.7, and GB/T standards all define these grades slightly differently. Request a calibration certificate that names the standard explicitly, states the measurement uncertainty, and — critically — is traceable to an accredited metrology institute rather than self-issued by the factory.
3. Understand the manufacturing environment
Flatness achieved in the shop doesn’t survive shipping and installation if the manufacturing environment itself wasn’t controlled. Ask about:
- Temperature and humidity control in the finishing and assembly areas — even a few degrees of daily swing can affect the final measured flatness.
- Vibration isolation — some manufacturers build isolation trenches or use vibration-damped floors around precision workshops specifically so nearby crane or forklift traffic doesn’t affect grinding accuracy during production.
- Dust control for assemblies involving bonded components, sensors, or air bearings, where contamination during bonding can introduce long-term instability.
4. Check equipment capacity against your actual part size

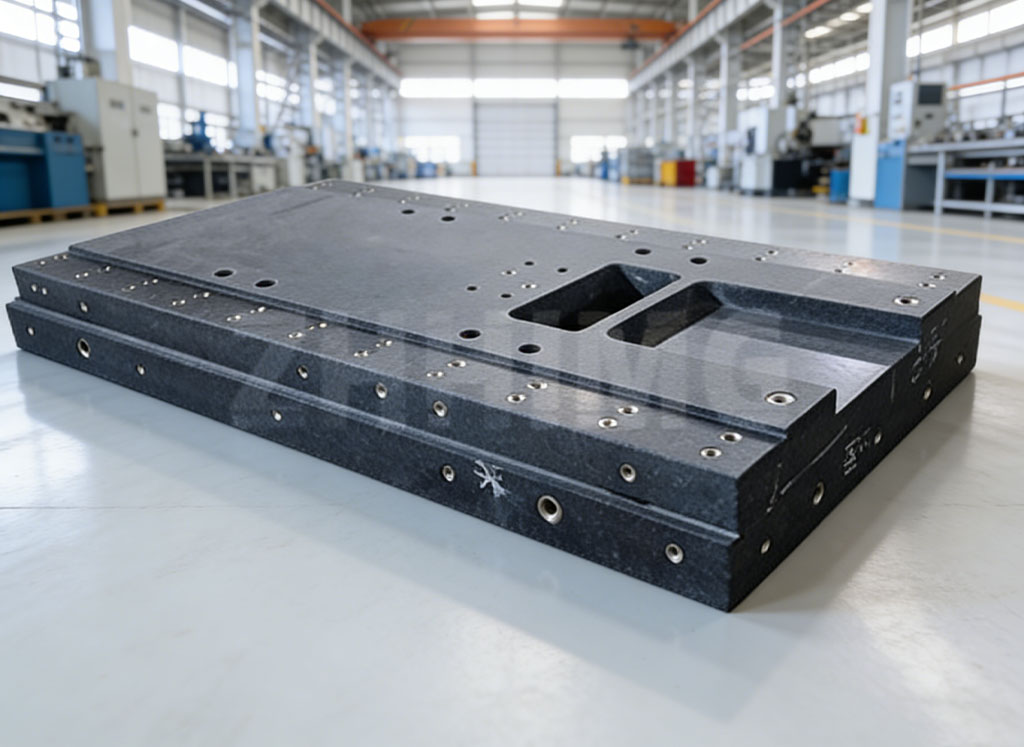

Not every supplier that produces small surface plates can also produce large custom beds. If your application needs a single-piece component several meters long, confirm the supplier’s crane capacity, grinding machine working envelope, and maximum single-piece weight before assuming they can scale up — some suppliers subcontract oversized work without disclosing it, which introduces a quality-control gap outside their own process.
5. Ask what happens after the sale
Precision components sometimes need re-calibration, minor rework, or replacement parts years after installation. A supplier with in-house metrology capability, documented calibration history for your specific part, and a track record of long-term technical support is a meaningfully different partner than one who simply ships a crate and moves on. For equipment builders integrating granite bases into machines sold globally, this also matters for warranty and liability purposes — being able to trace a component’s calibration history back to a specific date and standard is often required by the equipment builder’s own customers.
6. Watch for the price gap that doesn’t add up
If one quote is dramatically below the market range for a given size and grade, there’s almost always a reason — lower-density material, uncalibrated or self-certified inspection, an uncontrolled manufacturing environment, or subcontracted production. None of these are always disqualifying on their own, but they should be identified and understood before the purchase decision, not discovered after the equipment is already in service and producing inconsistent measurements.
Precision granite is a component category where the failure mode is quiet — a base that’s slightly out of spec doesn’t break, it just slowly corrupts every measurement made on top of it. A short supplier qualification checklist up front is considerably cheaper than diagnosing measurement drift after installation.
