In the semiconductor and precision electronics industries, manufacturing tolerances have long moved past the millimeter scale, diving deep into the sub-micron and nanometer realms. When dealing with high-speed XY air-bearing stages, wafer inspection systems, and advanced AOI (Automated Optical Inspection) equipment, even the most microscopic floor vibration or thermal fluctuation can ruin a production run.
To achieve absolute process stability, global semiconductor leaders no longer rely on traditional cast iron or steel structures. Instead, they build their technologies on a foundation of custom-engineered ZHHIMG Precision Granite.
1. Thermal and Structural Stability Under the Microscope
Why is ZHHIMG Black Granite the preferred structural medium for semiconductor equipment bases? The answer lies in the unique physical properties of our premium raw material.
-
High Density and Rigidity: With a density of approximately 3100 kg/m3, ZHHIMG Black Granite is significantly denser and more rigid than standard commercial stones. This high density provides exceptional structural stiffness, preventing any micro-deflection under heavy loads.
-
Excellent Vibration Dampening: Granite exhibits vibration dampening properties that are ten times better than steel and three times better than cast iron. This ensures that high-speed linear motors and XY tables can accelerate and decelerate rapidly without transmitting residual vibrations back into the optical or sensor systems.
-
Low Thermal Expansion: The material is highly resistant to temperature fluctuations. Unlike metals, which expand and contract rapidly, ZHHIMG Black Granite maintains its structural dimensions, protecting critical machine alignments.
2. A Dedicated Assembly Environment: 10,000 sqm of Controlled Perfection
The finest precision components mean nothing if they are assembled in an uncontrolled environment. At ZHHIMG, we understand that the assembly process must mirror the extreme standards of our customers’ semiconductor fabs.
To ensure this, we have invested heavily in creating a world-class production environment at our headquarters:
The Anti-Vibration Infrastructure
Our Constant Temperature and Humidity workshop spans over 10,000 square meters. The entire floor is poured with military-grade ultra-hard concrete at a minimum thickness of 1000mm (1 meter). Surrounding this massive foundation are specialized anti-vibration trenches measuring 500mm in width and 2000mm (2 meters) in depth. This physical isolation completely cuts off external ground vibrations.
Silent Handling and Cleanroom Assembly
Inside this facility, all overhead cranes operate on specialized silent driving systems to prevent acoustic vibration. Furthermore, we feature a dedicated, dust-free cleanroom that closely simulates semiconductor cleanrooms, specifically utilized for the integration and assembly of granite air bearings, guide rails, and high-precision mechanical structures.
3. Integrated Solutions: From Raw Stone to Complex Mechatronic Assemblies
Many suppliers only cut and grind raw stone. ZHHIMG is a true integrated solution provider. We don’t just manufacture the granite base; we deliver fully assembled, high-precision subsystems. Our product range includes:
-

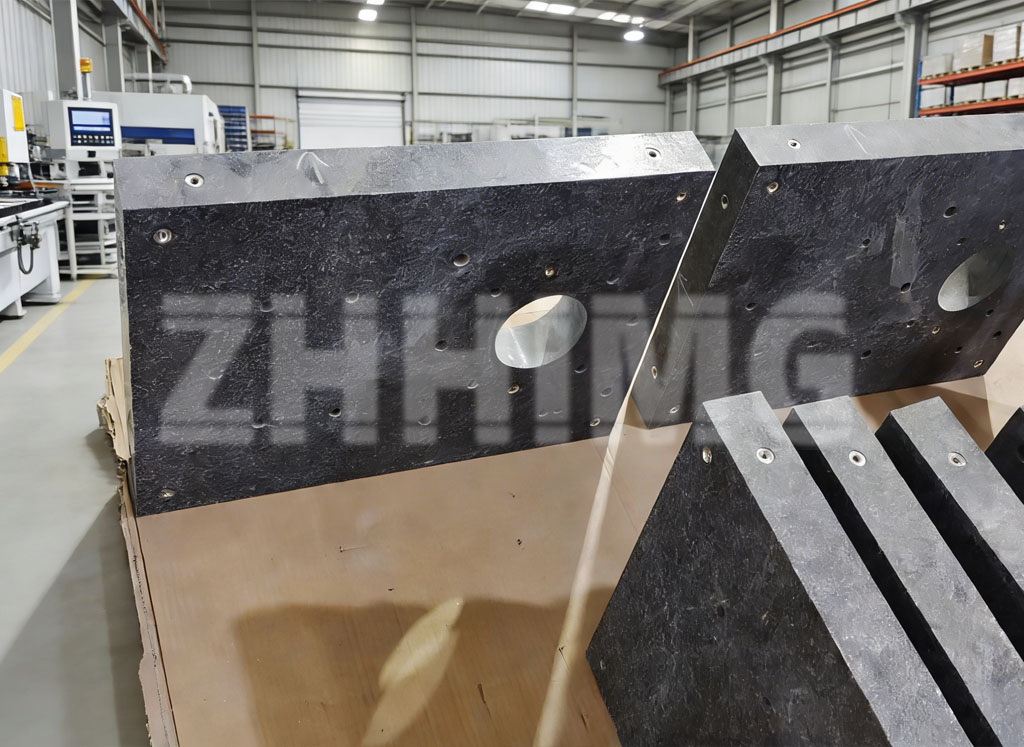

Granite Bases and Portals: Custom-designed machine frames for PCB drilling, CMM (Coordinate Measuring Machines), and industrial CT/X-Ray equipment.
-
Granite Air Bearings: Providing frictionless, ultra-smooth motion paths for advanced linear stages.
-
Precision Ceramic and Metal Integration: Incorporating custom ceramic components and precision CNC-machined metal parts into the granite assembly to meet diverse design requirements.
Our massive machining capacity enables us to handle single-piece granite components weighing up to 100 tons, with individual processing lengths up to 20 meters. Whether you need a standard granite surface plate with 1um flatness or a massive, custom-designed 5-meter semiconductor bed, we have the machinery and the scale to deliver.
4. Trusted by the Global Semiconductor Supply Chain
Our uncompromising approach to quality—guided by our company policy: “The precision business can’t be too demanding”—has made us a trusted Tier-1 partner for world-class semiconductor, optical, and metrology companies.
Our global clients include industry giants such as Samsung, Apple, Bosch, and Rexroth, as well as specialized precision system integrators like Akribis (Singapore), STI Semiconductor, and Flex (Israel). We also collaborate closely with elite global institutions, including the National University of Singapore (NUS) and Nanyang Technological University (NTU), to continuously test and refine our structural designs.
By choosing ZHHIMG, you are choosing a partner dedicated to absolute transparency: No cheating, No concealment, No misleading. We deliver verified, traceable, and world-class precision that serves as the rock-solid foundation for your next technological breakthrough.
Collaborate with ZHHIMG Engineering
Ready to optimize your next semiconductor, laser, or inspection machine base? Send your CAD designs and technical requirements to our global engineering team at [Email: info@zhhimg.com] for a detailed feasibility analysis and quote.
