Semiconductor manufacturing is widely considered the pinnacle of modern industrial engineering. As chipmakers push toward smaller nodes and higher yields, the tolerance for error shrinks to the nanometer scale. In this high-stakes environment, the performance of multi-million-dollar lithography and inspection systems relies heavily on a seemingly unassuming component: the precision granite base.
Why Granite is the Foundation of Chip Manufacturing
In semiconductor fabrication plants (fabs), equipment is subjected to constant micro-vibrations from cooling systems, automated material handlers, and even building traffic. Traditional metal bases can amplify these vibrations or warp due to thermal fluctuations. High-density granite, however, offers unmatched physical advantages:
Superior Vibration Damping: Granite’s dense, interlocking crystalline structure naturally absorbs high-frequency kinetic energy, preventing micro-vibrations from reaching sensitive optical components.
Thermal Stability: With a remarkably low coefficient of thermal expansion, our ZHHIMG® Black Granite (density ≈3100kg/m³) maintains its geometric integrity even in environments with slight temperature variations, preventing thermal drift.
Non-Magnetic & Non-Conductive: Granite eliminates the risk of electromagnetic interference, which is critical when working with sensitive electron beams, laser interferometers, and precision sensors.
Critical Applications in Semiconductor Fabs
At ZHHIMG®, we engineer precision granite bases and air bearing platforms tailored for the most demanding semiconductor processes:
Lithography & Wafer Inspection: Granite bases provide the ultra-stable “quiet zone” required for extreme ultraviolet (EUV) and deep ultraviolet (DUV) optical systems, ensuring perfect alignment during wafer exposure and defect inspection.
Precision Air Bearings: Our custom granite air bearing platforms enable frictionless, ultra-smooth motion for wafer stages. This eliminates mechanical wear and stick-slip friction, guaranteeing flawless positioning accuracy.
PCB & Substrate Processing: For PCB drilling and laser routing machines, granite bases absorb the high-frequency impacts of the spindle, ensuring perfectly vertical holes and precise trace routing.
Metrology & AOI Systems: Automated Optical Inspection (AOI) and Coordinate Measuring Machines (CMM) rely on ZHHIMG® granite surface plates as their absolute zero-reference plane, ensuring that every micron measured is accurate.
Engineered for Absolute Stability

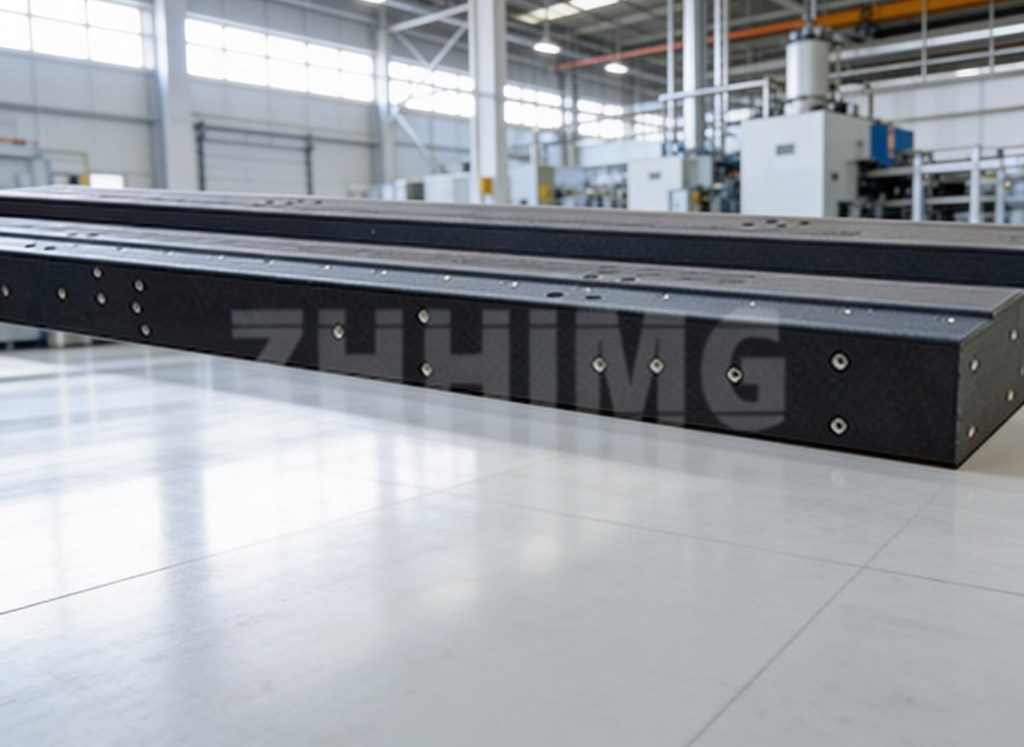

Manufacturing a semiconductor-grade granite base requires more than just cutting stone. At ZHHIMG®, we utilize massive CNC machining centers capable of handling single components up to 20 meters in length and 100 tons in weight.
However, the true magic happens in our 10,000m² vibration-isolated, temperature and humidity-controlled cleanroom. Built with a 1000mm thick ultra-hard concrete foundation and deep isolation trenches, this environment ensures that the final nanometer-level lapping and assembly are completely free from external interference. We even simulate semiconductor-grade cleanroom conditions for the final assembly of granite air bearings.
Trust Backed by Global Standards
We understand that in the semiconductor industry, there is no room for compromise. Our commitment to “no cheating, no concealment, no misleading” is validated by our comprehensive certifications (ISO9001, ISO14001, ISO45001, CE) and our adherence to strict international metrology standards like DIN 876 and ASME. Trusted by industry giants and global research institutions alike, ZHHIMG® provides the unshakeable foundation your advanced equipment demands.
Are you designing the next generation of semiconductor equipment? Reach out to the ZHHIMG® engineering team today to discuss custom granite bases, air bearing platforms, and precision assemblies tailored to your exact specifications.
