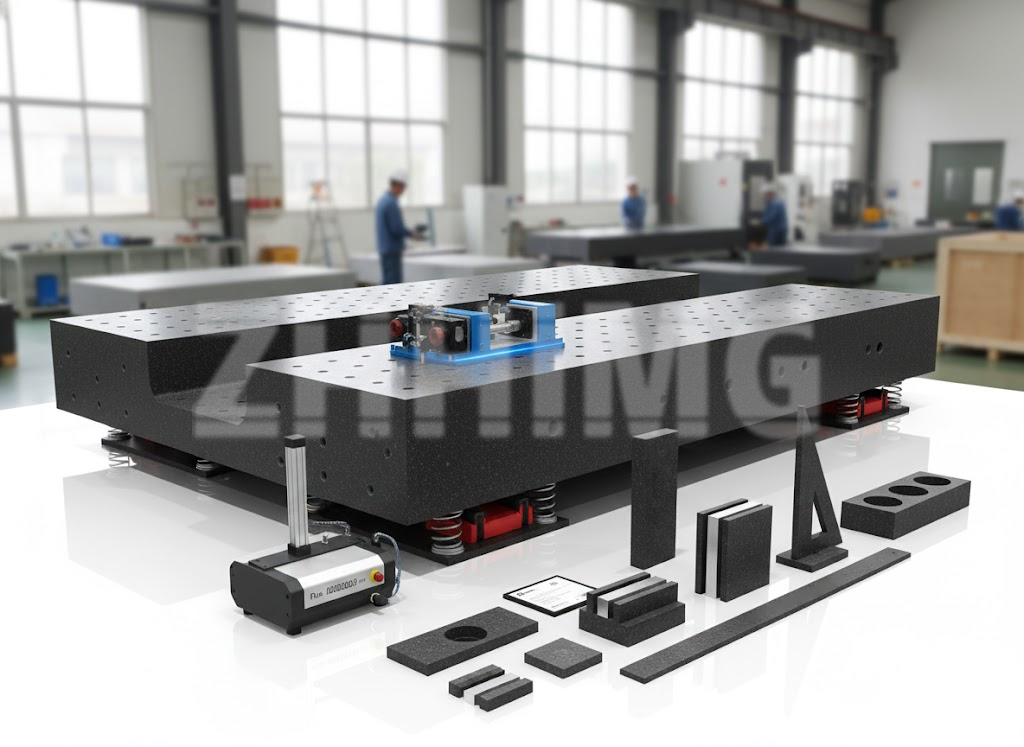

In the realm of high-precision manufacturing and metrology, the foundation is everything. Whether you are building a state-of-the-art Coordinate Measuring Machine (CMM), a laser scanner, or a high-speed gantry system, the structural material of your machine base dictates the ceiling of your accuracy. For decades, granite—specifically high-quality black granite—has been the material of choice for engineers demanding stability, vibration damping, and longevity.
However, ordering custom large-scale granite mechanical components is not as simple as sending a 2D drawing to a machine shop. It requires a nuanced understanding of geology, material physics, and precision engineering. A miscommunication regarding tolerance, material grade, or mounting points can lead to costly delays, rejected shipments, and compromised machine performance.
To help you navigate this complex procurement process, we have compiled the ultimate checklist for ordering custom granite components. This guide is designed to lower communication costs, establish your professional image with suppliers, and ensure you receive a component that meets the rigorous demands of your application.
1. Define Your Material Specifications: Not All Stone is Created Equal
The first step in the ordering process is defining the “raw” material. Granite is a natural product, and its properties vary significantly depending on the quarry. For precision mechanics, visual appeal is secondary to physical stability.
When specifying the material, you must look beyond generic terms like “granite.” You should specify the geological type and the specific quarry source if possible. The industry standard for high-precision components is often “Black Granite” (which can technically be diabase or basalt), prized for its fine grain and high quartz content.
Your checklist must include:
- Density: High-quality precision granite typically has a density between 2970 and 3070 kg/m³. Higher density generally correlates with better vibration damping and structural rigidity.
- Hardness: Specify a Shore hardness (HS) of 70 or above. This ensures the surface is resistant to wear and scratching during assembly and use.
- Water Absorption: This is critical for dimensional stability. The absorption rate should be extremely low, typically less than 0.13%. High absorption rates mean the stone can swell or warp in humid environments.
- Uniformity: Request material that is free from “soft spots,” cracks, or large mineral inclusions. The structure must be homogeneous to ensure consistent machining behavior.
Pro Tip: Ask your supplier if the stone has undergone “natural aging.” Stone that has been quarried and left to sit for an extended period releases internal stresses naturally, making it more stable than freshly quarried material.
2. Precision Grades and Tolerances: Speaking the Language of Metrology
One of the most common friction points in ordering granite parts is the definition of “flatness” and “precision.” A machine shop might interpret “very flat” differently than a metrology engineer. To avoid ambiguity, you must adhere to standardized precision grades.
Granite components are generally classified into three grades:
- AAA Grade (Reference Grade): This is the highest precision, typically used for master plates and calibration standards. Tolerances are in the sub-micron range.
- AA Grade (Inspection Grade): Used for high-precision CMMs and surface plates.
- A Grade (Workshop Grade): Suitable for general machine bases and tooling where ultra-high precision is not critical.
For large-scale mechanical components, you are likely dealing with specific geometric tolerances rather than just surface flatness. Your checklist should explicitly state:
- Flatness: Define this in microns per unit of length (e.g., ±2 µm per 1000mm).
- Parallelism: If you have top and bottom surfaces, how parallel must they be?
- Squareness: For 3D structures (like a granite bridge), the perpendicularity of the axes is vital.
- Straightness: Critical for guideways and linear motion rails.
Be realistic about your requirements. Asking for AAA grade precision on a rough mounting surface is an unnecessary expense. Clearly differentiating between “critical functional surfaces” and “non-critical structural surfaces” can save you significant money.
3. The Necessity of Stress Relief: Preventing Future Deformation
This is the most technical and often overlooked aspect of ordering granite components. Granite is rigid, but it is not immune to stress. When you machine granite—grinding it, drilling it, or cutting it—you introduce mechanical stress. If this stress is not relieved, the component will slowly deform over time, drifting out of tolerance.
A professional order must include a requirement for stress relief. There are two primary methods you should be aware of and potentially request:
- Thermal Stress Relief: The component is subjected to controlled heating and cooling cycles to relax the internal stresses induced during machining.
- Vibratory Stress Relief (VSR): The part is vibrated at specific resonant frequencies to redistribute internal stresses.
For large-scale components, thermal stress relief is often preferred for the highest stability. You should ask your supplier: “What is your standard process for stress relief after precision grinding?” If they do not have a defined process, look for another supplier. A component that is not stress-relieved is a ticking time bomb for accuracy.
4. Design for Manufacturing: Embedding Features and Assembly
Unlike metal, you cannot easily weld or solder granite. Therefore, the design of your component must account for how it will be assembled. Modern granite machining allows for complex features to be integrated directly into the stone, reducing the need for external brackets and reducing assembly error.
Your checklist for design features should include:
- Threaded Inserts: Do you need stainless steel threaded inserts for mounting motors or sensors? These are typically glued into precision-drilled holes using high-strength epoxy. Specify the thread type (metric/imperial) and the depth.
- T-Slots: For adjustable mounting, T-slots can be machined directly into the granite.
- Vacuum Chucks: If you are using the granite as a work-holding surface, does it need internal vacuum channels?
- Edge Breaks and Chamfers: Granite is brittle. Sharp 90-degree edges are prone to chipping. Always specify edge breaks (e.g., 0.5mm chamfer) on all non-functional edges to protect the part during shipping and handling.
- Lifting Points: Large-scale granite components are incredibly heavy. Design and machine lifting points (threaded holes) specifically for hoisting to prevent damage during installation.
5. Surface Finish and Coatings: Protecting the Investment
The surface finish of a granite component serves two purposes: functional accuracy and protection. While granite is chemically inert and does not rust, it is porous. Coolants, oils, and even water can penetrate the surface if left untreated, potentially causing local swelling or staining.
When ordering, specify the surface roughness (Ra value). A precision guideway might require an Ra of 0.4 µm or better, while a base plate might only need 1.6 µm.
Furthermore, consider requesting a protective coating. There are specialized sealants and coatings designed for precision stone that:
- Seal the Pores: Preventing liquid ingress.
- Reduce Friction: Enhancing the sliding characteristics for air bearings or linear guides.
- Prevent Glare: Some coatings provide a matte finish that reduces eye strain for operators working under bright lights.
6. Logistics and Packaging: The Hidden Risks
The final item on your checklist is often the most practical: how does it get to you? Granite is heavy and brittle. A component can survive the machining process perfectly but arrive at your facility with a cracked corner due to poor packaging.
Your procurement terms should specify:
- Crating: The component must be shipped in a fumigated wooden crate (for international shipping) that is rigid and reinforced.
- Suspension/Support: The granite should never rest directly on the bottom of the crate. It should be suspended or supported on shock-absorbing materials (like high-density foam) to isolate it from road vibrations and impacts.
- Moisture Protection: The crate should be lined with waterproof plastic or foil to protect the stone from rain and humidity during transit.
- Insurance: Ensure the shipment is insured for its full replacement value, not just the cost of the raw material.
Conclusion: Partnership Over Transaction
Ordering custom large-scale granite mechanical components is not a commodity purchase; it is a technical partnership. By using this checklist, you move the conversation from vague requests to precise engineering specifications. This clarity not only reduces the back-and-forth communication but also signals to your supplier that you understand the material and the process.
