In every high-precision machine, there is a component nobody talks about — and everything depends on it. Underneath the linear motors, the optics, the probes and the controllers sits a slab of black granite, quietly holding the whole system within microns. Granite precision platforms have become the default foundation for semiconductor equipment, coordinate measuring machines, and laser systems because they deliver something steel and cast iron simply cannot: dimensional stability that does not drift with temperature.
Below are the ten application scenarios where ZHHIMG granite platforms do the heaviest lifting — organized by industry so engineers and procurement teams can jump straight to their own use case.

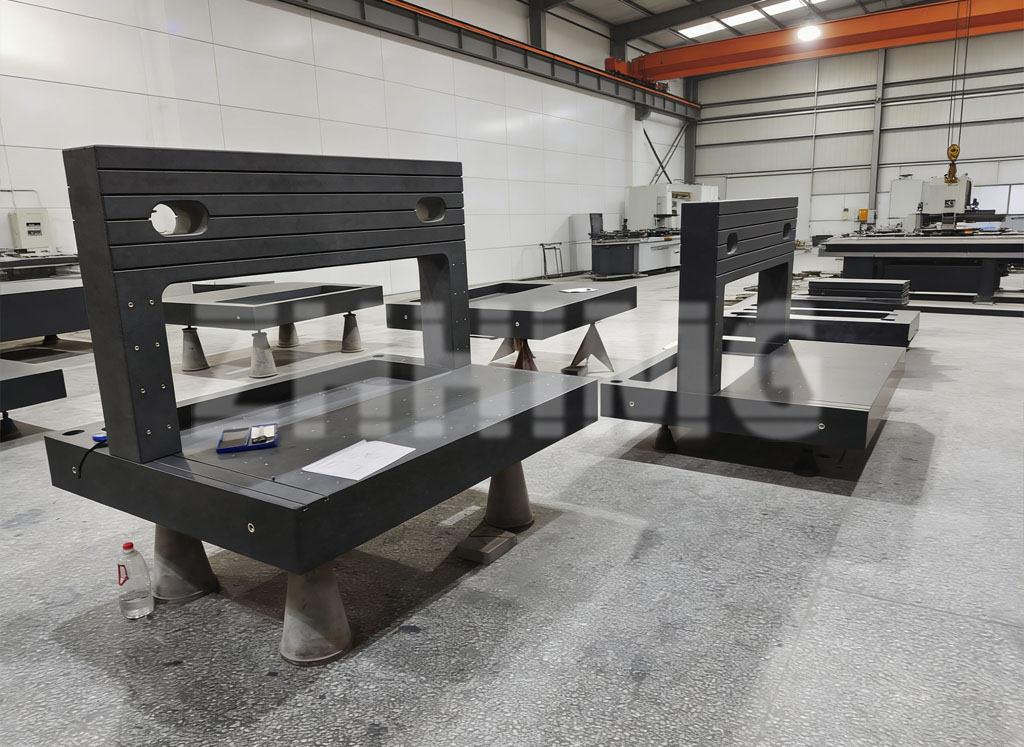

Granite gantry frames and machine beds under assembly at the ZHHIMG workshop — the structural backbone of precision equipment.
1. Semiconductor Wafer Inspection & Lithography Stages
Wafer inspection and lithography tools position a stage to nanometer-level repeatability. Any vibration or thermal drift shows up directly as overlay error. Granite gantry systems provide the low-thermal-expansion, high-damping base that keeps the stage flat and isolated, so the optics stay aligned across an entire production shift.
2. Coordinate Measuring Machines (CMM)
The CMM is the classic granite application. A granite surface plate with fine-ground flatness gives the machine a reference plane whose accuracy is measured in microns — and it stays that way for decades. Unlike metal, granite does not rust, does not develop internal stress, and absorbs the vibration that would otherwise corrupt a probe touch.
3. PCB Drilling Machines
High-speed PCB drilling demands thousands of holes per minute at ever-finer pitches. The spindle must move without chatter, and the machine bed must hold thousands of tiny holes within position tolerance. Granite beds damp the high-frequency vibration that builds up during drilling, protecting both hole quality and tool life.
4. Optical Inspection & AOI Systems
Automated optical inspection (AOI) systems compare images at micron resolution, so a fraction of a millimetre of tilt across the field of view is enough to blur a defect. Granite platforms keep the camera, lighting and stage coplanar, which is exactly why AOI builders specify granite-based precision solutions as the machine frame.
5. New Energy / Lithium-Battery Inspection Equipment
As battery cells and modules get larger, inline inspection equipment grows with them. Long granite beams and base plates give CT, X-ray and dimensional inspection stations the straightness and stability they need while scanning large parts — without the thermal growth that would force constant recalibration.
6. Laser Processing, Marking & Cutting Machines
Laser systems are only as accurate as the bed they sit on. A granite base keeps the workpiece and the optical head in a fixed relationship, so the focal point stays precise across the full travel. The material’s low thermal conductivity also means localized heat from the process has minimal effect on the frame.
Large granite surface plates and black granite machine bases — flatness measured in microns, stable for decades.
7. Precision Gantry & Linear-Motor Stages
Linear-motor gantries move fast and stop hard. Without a heavy, well-damped base, that momentum turns into ringing. Granite gantry platforms combine mass, damping and flatness so the stage settles instantly — a core requirement for high-throughput automation.
8. Vision Measuring Systems (VMM)
Vision measuring machines rely on a stable reference plane to keep the optics and the part at a constant working distance. Precision granite components — surface plates, columns and bases — give VMM builders a repeatable geometry that survives years of daily use.
9. CNC & Ultra-Precision Machine Tool Beds
For ultra-precision machining, the machine bed is the single largest source of error. Granite beds raise the dynamic stiffness and thermal inertia of the whole machine, letting toolmakers hold tolerances that cast-iron frames struggle to reach over long cycles.
10. Metrology Labs & Calibration Standards
Every precision workshop eventually needs a stable reference. Standard and custom granite surface plates form the bedrock of metrology labs, gauge calibration and assembly inspection — the place where every other measurement is validated. ZHHIMG also supplies assembly, inspection and calibration services to complete the loop.
Why Granite Wins
Across all ten applications the reasons are the same: low thermal expansion (roughly half that of cast iron), high vibration damping, no rust and no internal stress, and a hardness that resists wear and scratching. A granite platform does not just hold a part — it holds an accuracy budget for the life of the machine.
Whether your next project is a semiconductor stage, a CMM, a laser system or a battery inspection line, the foundation is the part worth getting right first. Explore the full range of ZHHIMG precision granite solutions and talk to our engineers about sizing a platform for your application.
