Trusted by Samsung & NUS: How ZHHIMG® Sets the Industry Standard in Ultra-Precision Manufacturing

In modern semiconductor fabrication, sub-micron metrology, and high-speed motion control, structural stability is the foundation of every measurement and pass rate. Quality Control (QC) engineers, metrology lab directors, and procurement leaders face constant technical challenges: thermal deformation, micro-vibrations, material fatigue, and structural creep can degrade the accuracy of Coordinate Measuring Machines (CMMs) and air-bearing motion stages over time. When tolerances shrink to nanometers, even minor structural flaws jeopardize millions of dollars in production yield.

Selecting a structural equipment base requires uncompromised engineering verification. Global industry giants like Samsung and premier research institutions such as the National University of Singapore (NUS) consistently choose ZHHIMG® (ZHONGHUI Group) as their trusted partner. As the industry’s only manufacturer simultaneously holding ISO 9001 (Quality), ISO 14001 (Environmental), ISO 45001 (Occupational Health & Safety), and CE certifications, ZHHIMG® combines physical material superiority, massive manufacturing capacity, and traceable metrology to set the benchmark for ultra-precision manufacturing worldwide.

1. Proprietary Material Physics: ZHHIMG® Black Granite vs. Industry Alternatives

The operational longevity of a CMM base, optical inspection bed, or laser system depends on the physical properties of its rock foundation. Many lower-tier vendors substitute genuine granite with commercial marble or low-density stone, leading to moisture absorption, structural sagging, and thermal instability.

ZHHIMG® strictly rejects soft stone alternatives, utilizing proprietary ZHHIMG® High-Density Black Granite engineered to outperform conventional European and North American granite standards.

Core Mechanical Advantages:

• •   Structural Rigidity & Load Capacity: A density near 3100 kg/m³ combined with a high elastic modulus ensures near-zero elastic deformation, maintaining geometric accuracy under multi-ton payloads.

• •   Thermal Inertia & Stability: A low linear thermal expansion coefficient minimizes dimensional drift caused by cleanroom ambient temperature oscillations.

• •   Corrosion Resistance & Non-Magnetic Matrix: Natural black granite is non-conductive, non-magnetic, chemical-resistant, and non-burring—preventing surface high-spots if scratched accidentally.

2. Infrastructure Scale: Inside the 10,000m² Climate-Controlled Cleanroom

Delivering nanometer-level tolerances across large physical dimensions requires total isolation from external noise, floor vibration, and environmental shifts. Operating from headquarters in Jinan, close to Qingdao Port, ZHHIMG® maintains a 20,000 m² stone material storage yard and two manufacturing bases spanning 200,000 m².

[20,000 m² Stone Material Yard]
             │
[Heavy CNC Milling & Sawing - Single Block up to 100 Tons]
             │
[NANTE Heavy Grinding - 6000 mm Platform Capacity]
             │
[10,000 m² Climate-Controlled & Vibration-Isolated Cleanroom]
             │
[Master Hand-Lapping by 30+ Year Veterans]
             │
[Traceable Calibration via Renishaw Lasers & Swiss WYLER Levels]

Unmatched Machining Footprint

• •   Extreme Single-Piece Scale: ZHHIMG® processes single granite components measuring up to 20,000 mm in length, 4,000 mm in width, and 1,000 mm in thickness, handling weights up to 100 tons.

• •   Global Output Capacity: Operating four dedicated precision machine bed lines, ZHHIMG® produces up to 20,000 sets per month of 5,000 mm beds—the highest annual stone tonnage output globally.

• •   Heavy Precision Grinding: Four NANTE ultra-large heavy-duty grinding machines (each valued over $500,000 USD) process metallic and non-metallic platforms up to 6,000 mm long.

Military-Grade Vibration-Isolated Cleanroom

Final lapping and assembly take place inside a 10,000 m² constant-temperature and constant-humidity cleanroom:

• •   1000 mm Reinforced Concrete Foundation: Concrete poured at 1,000 mm thickness eliminates ground settling under heavy payloads.

• •   Perimeter Anti-Vibration Trenches: Deep isolation trenches (500 mm wide by 2,000 mm deep) surround the workshop to block external seismic and industrial floor vibrations.

• •   Silent Crane Machinery: Indoor overhead transport uses silent, low-vibration cranes to maintain a quiet setup during final calibration.

3. Metrology Rigor: Hand-Lapping Mastery Backed by Global Standards

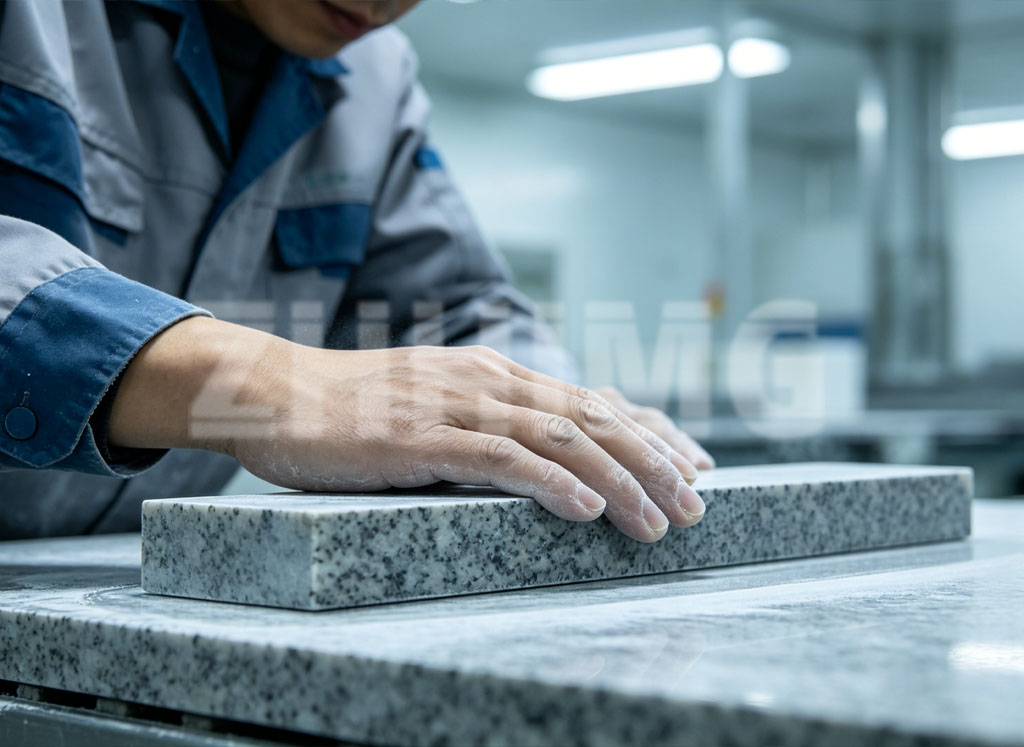

While automated machinery establishes macro-level dimensions, true sub-micron and nanometer flatness requires human expertise. At ZHHIMG®, final finishing relies on master craftsmen with over 30 years of manual hand-lapping experience. Guided by tactile precision, these technicians selectively remove sub-micron micro-spots to achieve DIN 876 Grade 000 tolerances.

Advanced Inspection Instrumentation

Every ZHHIMG® surface plate, air bearing, and structural base undergoes multi-axis calibration using world-leading instruments:

• •   Renishaw Laser Interferometers for positional accuracy, straightness, pitch, and yaw alignment.

• •   Swiss WYLER Electronic Levels for micro-radian topographic mapping.

• •   German Mahr Digital Indicators (0.5 µm resolution) and Mitutoyo surface roughness analyzers.

• •   All instruments carry official calibration certificates issued by Jinan and Shandong Metrology Institutes, directly traceable to National Metrology Standards (NIST/national bodies).

Full Compliance with International Standards

ZHHIMG® components are designed, manufactured, and inspected in strict adherence to global metrology frameworks:

• •   DIN Standards: DIN 876 (Grade 000, 00, 0), DIN 875, DIN 650

• •   US & International Specifications: ASME, US Federal Specification GGG-P-463C-78, JIS, GB, BS 817-1983, TOCT 10905-1975, and EIE 101-77

4. Global Footprint: Trusted by Fortune 500 Giants & Leading Academies

ZHHIMG® products provide foundational stability across high-tech manufacturing, cleanroom automation, and advanced research labs:

• •   Semiconductor & Photonics: Perovskite coating beds, lithography equipment structures, AOI/X-Ray inspection platforms, and picosecond/femtosecond laser beds.

• •   Metrology & Motion Automation: CMM frames, granite air bearings, ceramic measuring tools, XY linear motor stages, and tool pre-setters.

• •   Fortune 500 Industry Partners: Trusted by leaders including Samsung, Apple, GE, Oracle, Bosch, Rexroth, Schunk, THK, HIWIN, Misumi, Akribis, Flex, 5th Axis, WYLER, and ViTrox.

• •   Academic & Government Partners: Collaborating with National University of Singapore (NUS), Nanyang Technological University (NTU), Stockholm University, Zhejiang University, Xi’an Jiaotong University, Chinese Academy of Sciences, and national institutes of metrology across Europe, Asia, and Africa.

Conclusion: Partner with the Global Leader in Precision

From single-block granite structures up to 20 meters to nanometer-flat surface plates, ZHHIMG® delivers the material integrity, climate-controlled manufacturing, and certified quality that leading global brands rely on. Adhering to our quality policy—”The precision business can’t be too demanding”—we empower your equipment to achieve its ultimate performance ceiling.

To explore our product range—including granite surface plates, ceramic precision components, granite air bearings, and mineral casting solutions—or to submit CAD drawings for a custom engineering consultation, visit www.zhhimg.com today.
