Introduction: The Foundation of Nanometer-Level Accuracy
In the high-stakes world of semiconductor manufacturing, the margin for error is non-existent. As fabrication processes shrink to 5nm, 3nm, and beyond, the stability of the equipment itself becomes the primary limiting factor. For QC Engineers and B2B procurement managers, the challenge isn’t just finding a material that is “flat”; it is finding a material that remains dimensionally stable under thermal fluctuation, vibration, and heavy dynamic loads.
This is where ultra-precision granite components transition from being simple structural supports to becoming the critical backbone of advanced lithography, wafer inspection, and packaging equipment. At ZHHIMG, we understand that if you cannot measure it, you cannot make it. This philosophy drives our commitment to producing granite and ceramic solutions that meet the rigorous demands of the global semiconductor industry.
The Physics of Stability: Why Black Granite?
When designing metrology frames or machine bases for semiconductor tools, material selection is paramount. While cast iron and steel are common, they suffer from thermal expansion and internal stress relaxation. ZHHIMG® Black Granite offers distinct physical advantages that make it the superior choice for ultra-precision environments.
Key Physical Properties:
- Near-Zero Thermal Expansion: Unlike steel, our black granite has an extremely low coefficient of thermal expansion. This ensures that a granite surface plate or gantry maintains its geometric accuracy even if the cleanroom temperature fluctuates slightly.
- Superior Damping Capacity: Granite absorbs vibration roughly 15 times better than steel. In semiconductor lithography, where even nanometer-level vibration can ruin a wafer, this damping capability is essential.
- Non-Magnetic & Chemically Inert: Essential for electron microscopy and sensitive electronic component testing, our granite components do not interfere with magnetic fields and resist corrosion from cleanroom chemicals.
- Extreme Hardness & Wear Resistance: With a density of approximately 3100 kg/m³, our material is significantly denser than standard marble or lower-grade granites. This density translates to a longer service life and resistance to micro-scratching during assembly.
Note on Quality: The market is flooded with “marble” substitutes that lack the structural integrity of true black granite. ZHHIMG坚决抵制 (resolutely resists) the practice of substituting inferior marble for granite. We guarantee that our components are machined from high-density, premium black granite, ensuring the stability required for world-class metrology.
Engineering to Global Standards: DIN, ISO, and Beyond
Precision is meaningless without a standardized reference. Our manufacturing processes are not just about cutting stone; they are about achieving certified accuracy. We cater to a global clientele, including partners like Samsung, Bosch, and various National Metrology Institutes, by adhering to the strictest international standards.
Our Compliance & Capability:
- DIN 876 & DIN 875: We manufacture granite surface plates and straight edges that meet DIN 876 Grade 00 (Reference Grade) and Grade 0 (Inspection Grade) standards.
- ISO Certifications: As the only company in our sector holding simultaneous ISO9001, ISO 45001, and ISO14001 certifications, our quality management and environmental safety are guaranteed.
- Traceable Metrology: We utilize world-leading inspection equipment, including Renishaw laser interferometers, Wyler electronic levels, and Mahr indicators (0.5um resolution). Every product leaving our 20,000m² facility is backed by calibration data traceable to national standards.
Table: Comparison of Base Materials for Precision Machinery
| Feature | ZHHIMG® Black Granite | Cast Iron/Steel | Marble (Inferior) |
|---|---|---|---|
| Thermal Stability | Excellent (Very Low Expansion) | Poor (High Expansion) | Moderate |
| Vibration Damping | High (15x Steel) | Low | Moderate |
| Corrosion Resistance | High (Inert) | Low (Rusts) | Moderate |
| Maintenance | None | High (Scraping/Oiling) | Low |
| Density | ~3100 kg/m³ | ~7800 kg/m³ | ~2700 kg/m³ |
From Raw Stone to Integrated Systems: The ZHHIMG Advantage
We are not merely a supplier of raw blocks; we are a manufacturer of integrated precision solutions. Our facility in Jinan, near the Qingdao port, houses over 200,000m² of production space, allowing us to handle massive, one-piece projects that competitors cannot.
1. Massive Scale Capability

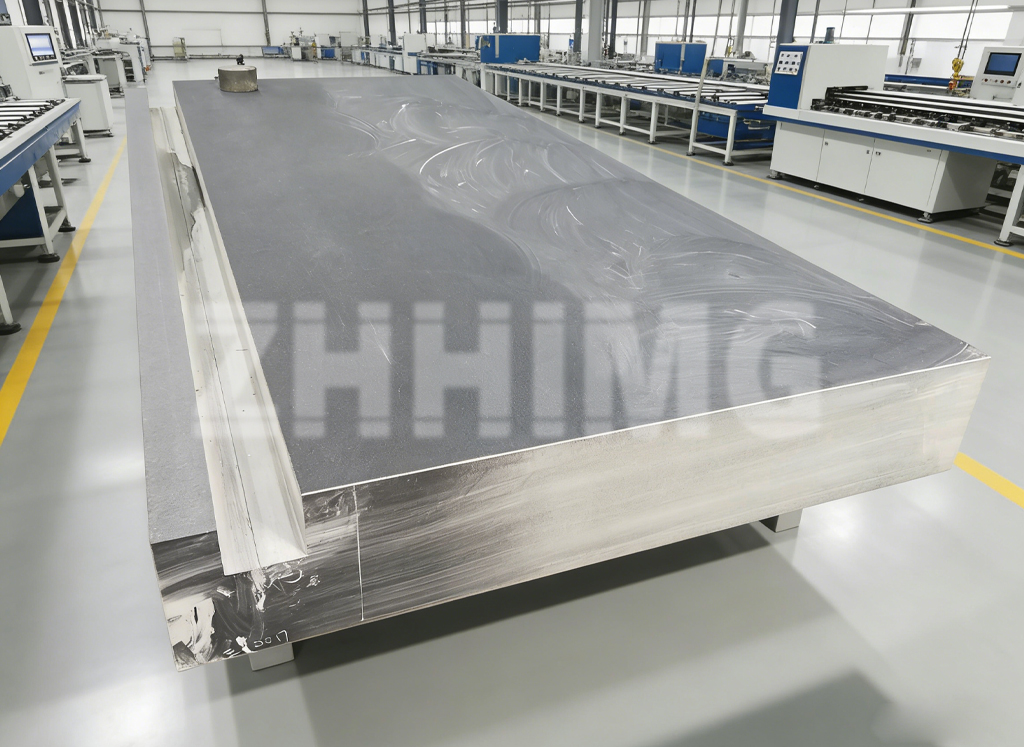

Our investment in Taiwanese Nantex grinding machines (valued at over $500,000 USD each) allows us to grind monolithic components up to 6,000mm in length. We can process single pieces weighing up to 100 tons, making us the ideal partner for large-scale semiconductor gantry systems and PCB drilling machine beds.
Our investment in Taiwanese Nantex grinding machines (valued at over $500,000 USD each) allows us to grind monolithic components up to 6,000mm in length. We can process single pieces weighing up to 100 tons, making us the ideal partner for large-scale semiconductor gantry systems and PCB drilling machine beds.
2. The Human Element: Master Craftsmanship
Technology alone is insufficient. Our most prized asset is our team of grinding masters, many with over 30 years of experience. These experts possess a tactile sensitivity capable of detecting deviations in the micron range—often referred to by our clients as “walking electronic levels.” This combination of 5-axis CNC machining and traditional hand-scraping ensures a surface finish and flatness that pure automation cannot achieve.
Technology alone is insufficient. Our most prized asset is our team of grinding masters, many with over 30 years of experience. These experts possess a tactile sensitivity capable of detecting deviations in the micron range—often referred to by our clients as “walking electronic levels.” This combination of 5-axis CNC machining and traditional hand-scraping ensures a surface finish and flatness that pure automation cannot achieve.
3. Diverse Material Expertise
While granite is our core, we recognize that different semiconductor processes require different materials. We offer a comprehensive “One-Stop Solution” including:
While granite is our core, we recognize that different semiconductor processes require different materials. We offer a comprehensive “One-Stop Solution” including:
- Precision Ceramics: For lightweight, high-stiffness moving components and air bearings.
- Mineral Casting (Polymer Concrete): For complex geometries and superior damping in machine beds.
- UHPC (Ultra-High Performance Concrete): For massive, durable infrastructure components.
- Precision Metal & Glass: For specialized optical and mechanical integration.
Applications in Advanced Fabrication
Our components are currently driving precision upgrades in several critical sectors:
- Semiconductor Equipment: Wafer steppers, wire bonders, and die sorters.
- PCB & Electronics: High-speed drilling machines and SMT assembly lines.
- Metrology Labs: CMM (Coordinate Measuring Machines), optical measuring instruments, and roughness testers.
- Laser Processing: Bases for femtosecond and picosecond laser systems where stability dictates the beam path accuracy.
Conclusion: Partner with the Standard of Precision
In an industry where “good enough” is a failure, ZHHIMG stands as a beacon of quality. We don’t just sell stone; we sell the assurance that your equipment will perform at its peak, day after day, year after year. Our commitment to “No cheating, No concealment, No misleading” ensures that when you partner with us, you are getting the genuine, high-density black granite your application demands.
Whether you need a standard DIN 876 Grade 00 surface plate or a custom-machined granite gantry for a next-generation lithography tool, we have the capacity, the certification, and the expertise to deliver.
Ready to upgrade your equipment’s foundation?
Visit www.zhhimg.com to explore our full range of Precision Granite, Ceramic, and Mineral Casting solutions, or contact our engineering team today for a custom consultation.
Visit www.zhhimg.com to explore our full range of Precision Granite, Ceramic, and Mineral Casting solutions, or contact our engineering team today for a custom consultation.
Post time: Sep-01-2026
