What Are the Core Components of Precision Granite Assemblies?

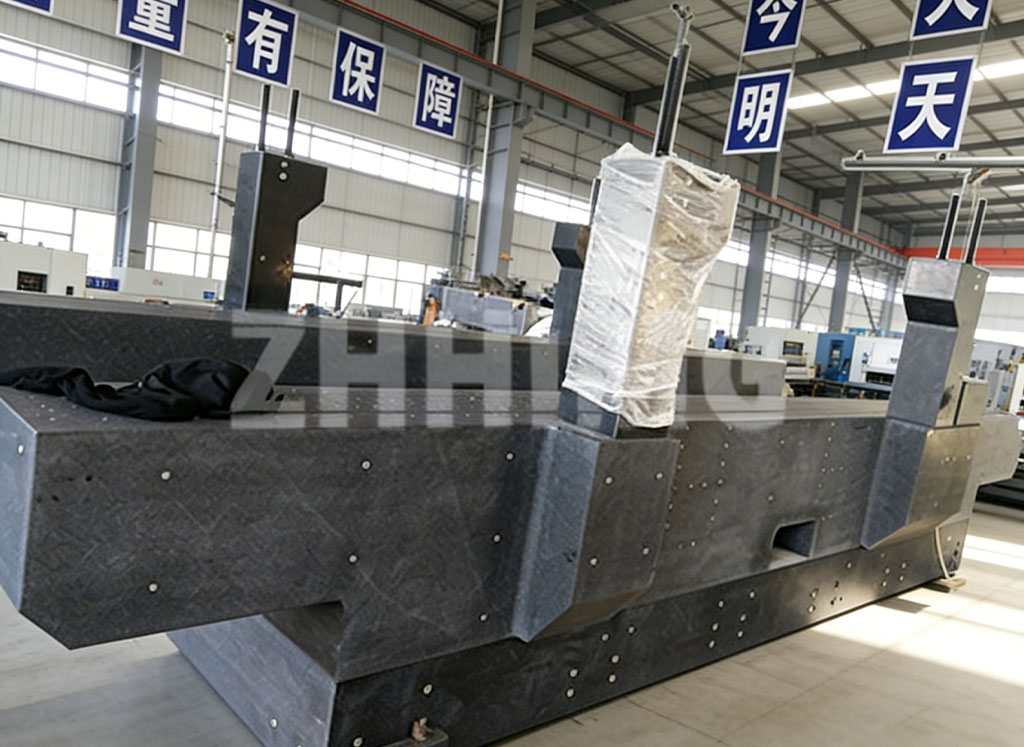

As the core framework of precision granite assemblies, the main load-bearing structure acts as the mounting benchmark for all precision functional parts, directly determining the structural rigidity and long-term stability of the entire equipment. It can be regarded as the accuracy foundation of ultra-precision machinery. This structure mainly includes granite base, integrated bed, gantry beam and vertical support plate, all integrally formed from high-density natural granite. The integral molding process effectively avoids accuracy loss and structural hazards caused by segmented splicing.

The granite base and integrated bed are the primary load-bearing units that bear the overall equipment weight, processing load and dynamic impact pressure. Adopting high-density stone with billions of years of natural aging, the material eliminates internal residual stress completely, maintaining long-term flatness and vertical benchmark accuracy without operational deformation or offset. Gantry beams and vertical plates form the three-dimensional precision framework of equipment, ensuring the stroke accuracy and spatial coaxiality of moving mechanisms, and are widely used in large-scale inspection equipment, linear motor platforms, industrial CT and other high-end machinery. With uniform thermal expansion coefficient and superior vibration damping performance, the integral main structure effectively resists accuracy interference caused by machining vibration and ambient temperature differences.

Functional integrated components are the core functional units that enable precise operation of precision granite assemblies, marking a key difference from ordinary stone parts. Adapted to precision movement, air-bearing transmission and high-accuracy detection working conditions, this component group guarantees the operational precision of high-end equipment. It mainly comprises four core units: precision air-bearing platform, integrated guide rail base, high-precision detection reference surface and special-shaped functional grooves.

As a core part for friction-free precision movement, the air-bearing platform utilizes the ultra-high flatness of granite and customized air groove structures to achieve smooth, low-vibration and resistance-free equipment movement, which is essential for laser processing and precision scanning equipment. Abandoning traditional separated guide rail installation, the integrated guide rail base is directly formed through precision milling and grinding, ensuring the straightness and parallelism of linear motion and eliminating assembly gaps. The nano-polished high-precision detection reference surface acts as the standard measurement benchmark for metrology instruments and precision inspection equipment, meeting strict requirements for dimensional and geometric tolerance detection. Custom special-shaped grooves including positioning grooves, wiring grooves and mounting grooves are processed according to personalized equipment demands to match diverse functional layouts.

Embedded matching components connect the granite main body with electromechanical, transmission and detection systems, solving the difficulty of direct precision part assembly on pure stone structures and improving the integration and compatibility of granite assemblies. This series of parts mainly includes high-precision metal inserts, positioning pin sleeves, pre-embedded thread components and sealing inlaid structures, all integrally embedded into the granite base through sophisticated inlay technology.

Different from simple post-drilling assembly processes, all embedded components are precisely positioned and pre-embedded during production, ensuring seamless fitting and uniform stress between inserts and the stone base without loosening or offset after long-term operation. Metal inserts are used for docking motors, sensors, transmission modules and other electromechanical parts to ensure assembly accuracy and structural strength. Positioning pin sleeves and pre-embedded threads enable precise alignment and stable locking of equipment modules, adapting to repeated disassembly and debugging. Sealing inlaid structures enhance the tightness of grooves and cavities, suitable for dust-free processing and precision air control scenarios, greatly improving the overall integration stability and service life of granite assemblies.

Environment-adaptive auxiliary components ensure the continuous and stable operation of precision granite assemblies under complex working conditions. By optimizing the operating environment and offsetting external interference, they maintain long-term equipment accuracy. The main components include precision leveling support units, vibration isolation assemblies and dust-proof protective structures.

Precision leveling supports realize micron-level fine adjustment of base horizontality, adapting to on-site flatness deviations and keeping the equipment benchmark in standard state at all times. Professional vibration isolation structures block vibration transmission from the ground and operating equipment, maximizing the natural vibration damping advantage of granite and preventing accuracy fluctuation caused by vibration. Dust-proof structures are specially designed for semiconductor dust-free precision manufacturing, protecting guide rails and reference surfaces from particle contamination and sustaining long-term precision operation. Although classified as auxiliary structures, these components are indispensable for all-weather high-precision stable operation and effectively reduce later debugging and maintenance costs.

Essentially, precision granite assemblies are not simple single stone products, but integrated precision systems composed of four major core modules: load-bearing structure, functional components, embedded matching parts and environment-adaptive auxiliary units. These four systems cooperate closely to guarantee structural stability, motion accuracy, assembly compatibility and anti-interference capability. This comprehensive performance enables precision granite assemblies to meet the stringent requirements of semiconductors, laser technology, high-end metrology, new energy and other high-precision fields, and constitutes the core logic of high-precision customized non-standard granite application.
