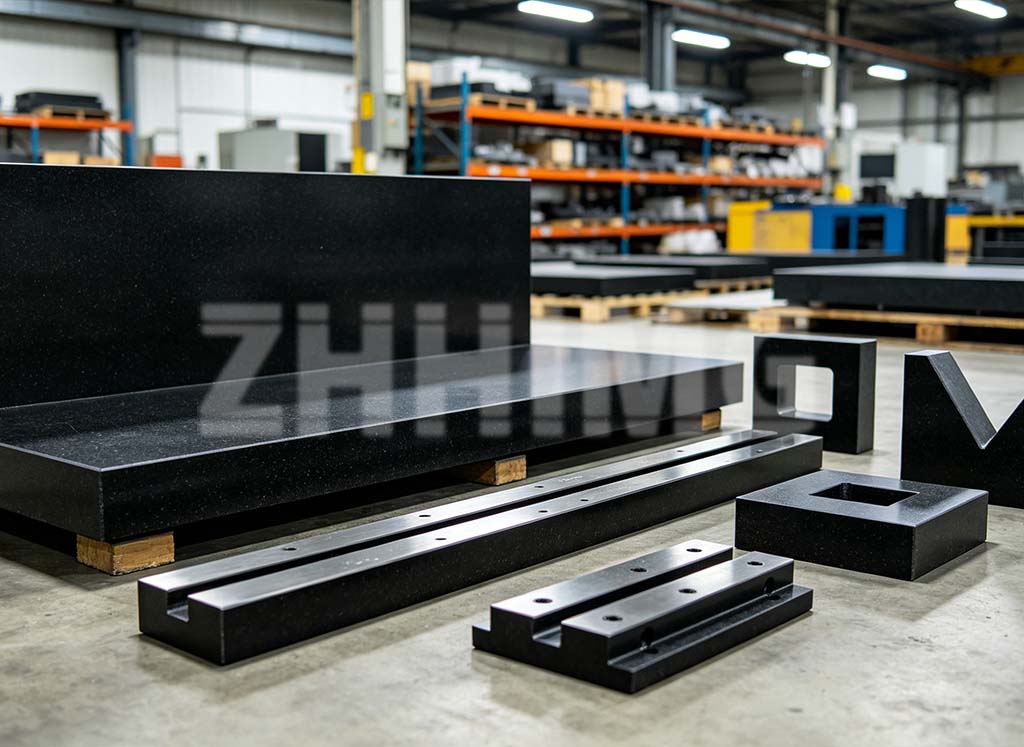

With low thermal expansion and high damping, granite serves as a core benchmark component for precision inspection and automated equipment. However, due to high brittleness and natural mineral texture, slight negligence in process control will trigger hard-to-detect hidden precision risks. Many risks do not appear immediately during factory inspection but gradually emerge after assembly, load bearing or ambient temperature change, leading to positioning deviation of complete machines and benchmark failure. ZHHIMG Group (ZHHIMG®) has rich experience in manufacturing ultra-precision granite components. We summarize common hidden precision risks throughout the machining workflow and eliminate such problems in advance via process control.
Hidden defects in raw materials are precision risks at the source. Conventional blank cutting only focuses on external dimensions while ignoring the internal state of stone. Granite ore may contain invisible microcracks, mineral segregation and impurity interlayers, which are hard to identify at the blank stage. Stress generated by cutting during machining activates these microcracks. Finished products may pass precision inspection at first, yet microcracks expand slowly under assembly load, causing local deformation of the reference surface. Besides, anisotropy brought by grain orientation is easily overlooked. If the reference surface is cut perpendicular to mineral texture, inconsistent shrinkage in different directions will occur during temperature variation and stress release, degrading flatness over time.
Residual stress introduced during cutting is the most common precision risk. Every grooving, drilling and weight-reduction cavity milling operation produces grinding stress on the stone surface layer by diamond cutting tools. If one-time deep cutting is adopted, large amounts of material are removed quickly and stress accumulates continuously. Without intermittent constant-temperature standing for stress relief, stress will release slowly for weeks or even months after machining, resulting in hole position shift, groove distortion and arching of reference surfaces. This type of risk is highly deceptive: precision passes constant-temperature re-inspection at factory, yet benchmark precision drifts gradually after delivery and assembly as stress keeps releasing.
Temporary deformation induced by thermal effects during machining may be mistakenly judged as qualified. Granite has poor thermal conductivity. Friction heat generated during high-speed grinding and drilling cannot dissipate rapidly, leading to local temperature rise and partial arching of plates. Geometric tolerance measured under heated condition seems to comply with drawings. After the component cools down to room temperature and deformation rebounds, flatness and hole position tolerance go out of limits. Many manufacturers lack constant-temperature workshops. Machining and inspection are performed in unstable thermal fields, creating such “false qualified measurement” and causing delivered products to fail precision requirements.
Edge chipping and subsurface damage during hole and groove machining are hidden structural risks. Granite is brittle, and edge chipping easily occurs when tools enter and exit the workpiece. Tiny chipping looks trivial visually, yet it concentrates fastener stress during assembly. Under long-term cyclic load, chipping areas expand gradually, altering the stress state of holes and triggering deformation of reference surfaces. A deeper risk is subsurface microcracks: impact during cutting leaves no visible surface marks but creates tiny internal damage inside the stone. Under vibration working conditions, microcracks keep expanding and undermine local rigidity, resulting in settlement of guide rail mounting surfaces and damaging repeat positioning accuracy of motion modules.
Ripple errors generated in grinding affect dynamic measurement accuracy of long-travel equipment. Improper connection between rough grinding and finish grinding, worn grinding discs or grinding vibration will form periodic long-wave ripples on reference surfaces. Single-point flatness inspection may pass, yet ripples will be exposed during full-area scanning. Such errors have limited impact on static metrology, but once applied to high-speed scanning and continuous sampling AOI and linear motor platforms, probes move up and down following ripples and generate periodic measurement noise, reducing inspection repeatability.
Self-weight deformation risks caused by improper support are often ignored in drawings. The supporting points adopted during machining and inspection by many manufacturers differ from those used for customer on-site assembly. Granite components have large self-weight, and support layout directly changes stress distribution on plates. Products pass flatness inspection with evenly distributed multi-point supports in factory; once customers adopt different support positions on site, deflection from self-weight changes and reference surfaces bend, leading to the phenomenon of “qualified at factory, unqualified after installation”. This risk is not dimensional machining error but mechanical problem of self-weight, often triggering acceptance disputes between suppliers and customers.
Moisture absorption deformation risks caused by improper surface treatment. Granite matrix contains inherent micro-pores. Without standardized micro-pore sealing protection or incomplete sealing process, reference surfaces absorb water vapor and produce tiny expansion when workshop humidity changes; shrinkage occurs in dry environment. Repeated cycles cause continuous minor fluctuation of benchmark dimensions. Especially for high-precision optical inspection scenarios, such micron-level moisture expansion is enough to trigger image offset and calibration failure. If thick paint coating is selected as protective layer, the coating itself shrinks over time and pulls stone reference surfaces to deform.
Incomplete metrology inspection leads to missed risks. Only inspecting flatness of the main working surface without simultaneously verifying position tolerance and perpendicularity of holes and grooves relative to the benchmark breaks the benchmark chain. Some manufacturers only sample local points instead of full-area grid scanning, so local depressions and warping on plates are omitted. Fluctuation of temperature and humidity in inspection environment and uncalibrated measuring instruments also distort test data, making semi-finished products with internal stress and subsurface damage judged as qualified and flowing into assembly.
To sum up, most hidden precision risks of precision granite components are delayed and do not appear immediately after machining. They lurk in raw material, cutting, grinding, inspection and protection procedures. ZHHIMG Group systematically identifies and eliminates various potential precision risks through non-destructive blank screening, segmented machining with intermittent aging, constant-temperature vibration-isolated finishing, full-area grid metrology, customized support simulation and micro-pore sealing protection, supplying long-term stable granite benchmark components for automation, semiconductor and optical metrology equipment.
