What Is a Granite Machine Tool Bed? Definition, Features and Industrial Value

In ultra-precision machinery manufacturing, the machine tool bed acts as the permanent structural foundation of all precision equipment. It carries core moving components including spindles, guide rails, lead screws and working tables, and its structural stability, flatness accuracy and vibration resistance directly determine the machining precision and long-term stability of the entire equipment. Among various bed materials on the market, granite machine tool beds have gradually replaced traditional cast iron, steel and ordinary stone beds and become the standard configuration of high-end ultra-precision equipment. This article systematically interprets the definition, core characteristics and industrial application value of granite machine tool beds, combined with ZHHIMG’s professional manufacturing standards.

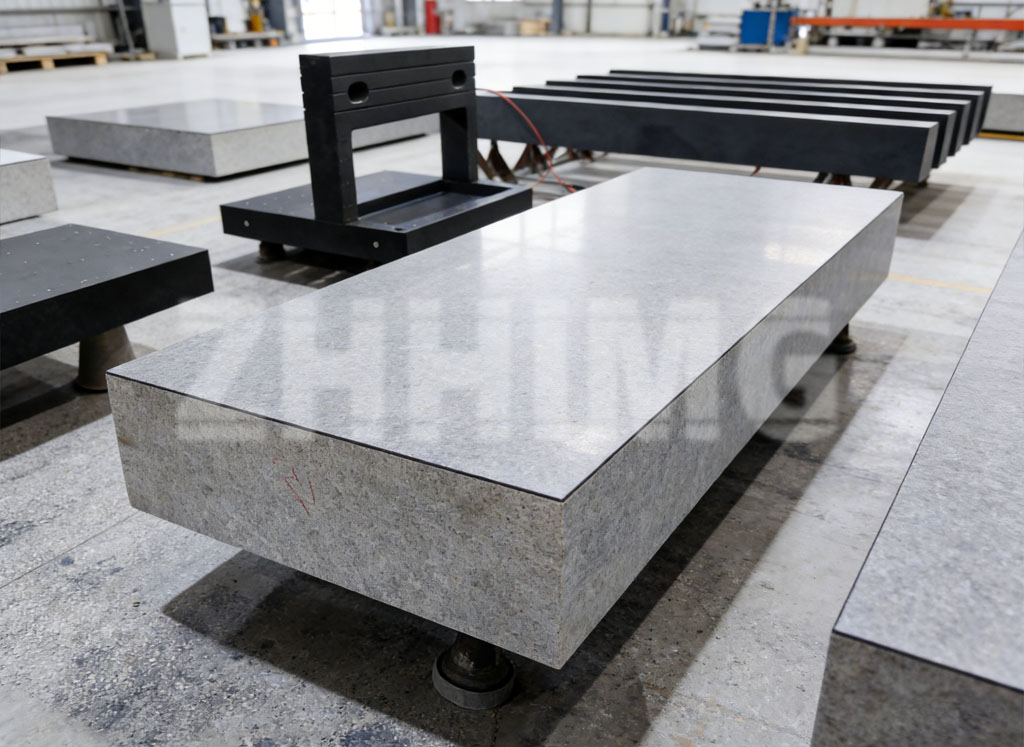

A granite machine tool bed is a high-precision structural base component processed and polished from high-purity natural black granite. Different from ordinary decorative stone and low-grade marble, professional machine tool-grade granite undergoes strict natural aging screening, precision cutting, ultra-fine manual grinding and constant-temperature finishing. It is specially developed and produced for ultra-precision machining, precision measurement and high-stability industrial scenarios, serving as the “precision benchmark base” for semiconductor equipment, laser precision machines, coordinate measuring instruments and high-end CNC machine tools.

Unlike ordinary industrial beds that only bear load and fix structures, granite machine tool beds undertake dual core functions: stable mechanical support and long-term precision benchmark maintenance. It can lock micron and even nanometer-level flatness accuracy for a long time, avoiding precision drift caused by material fatigue and environmental changes, which cannot be realized by traditional metal beds.

The fundamental reason why granite machine tool beds are exclusive to high-end precision industries lies in their unique physical properties that outperform metal and ordinary stone materials. First of all, qualified machine tool granite features ultra-high density and zero internal stress. ZHHIMG adopts high-quality black granite with a density of 3100kg/m³, which is far denser and more stable than ordinary marble used by small manufacturers. The material has uniform internal texture, no pores and no latent stress, so it will not deform, warp or sink during long-term high-load operation.

Secondly, granite has outstanding vibration damping and shock absorption performance. Its unique natural crystalline structure can efficiently absorb high-frequency vibration generated by equipment operation, processing cutting and motor rotation, eliminate processing chatter marks and measurement errors, and greatly improve the surface finish and dimensional consistency of processed workpieces. In addition, granite features low thermal expansion coefficient, excellent temperature stability, non-magnetization, rust resistance and corrosion resistance. It will not produce thermal deformation due to workshop temperature fluctuation, and requires no complicated daily maintenance, achieving long-term zero-loss precision maintenance.

It is worth emphasizing that many low-cost products on the market use inferior marble as substitutes, which have loose texture, low density, serious stress deformation and poor temperature resistance, resulting in rapid precision attenuation after equipment operation. ZHHIMG strictly screens raw materials and resists inferior substitution behaviors, ensuring that each batch of machine tool beds meets ultra-precision industrial manufacturing standards from the source.

High-quality material is the foundation, and ultra-precision processing technology is the core guarantee of product performance. As a benchmark manufacturer in the industry, ZHHIMG has established a complete set of standardized production systems for granite machine tool beds. The company relies on super-large professional production bases and independent stone storage sites to realize standardized management from raw material aging to finished product delivery.

In terms of processing hardware, ZHHIMG is equipped with high-value imported ultra-large grinding equipment and heavy-duty CNC processing equipment, supporting super-large-size customized processing of granite beds. The equipment configuration and processing scale are leading the industry, realizing efficient and high-precision forming of large-tonnage and ultra-long-size machine tool beds. Meanwhile, the 10,000㎡ professional constant-temperature and constant-humidity dust-free workshop builds an anti-vibration and anti-interference processing environment through military-grade thickened ground and professional shockproof ditches, eliminating external vibration, temperature and humidity interference in the whole processing and assembly process.

The precision of granite machine tool beds is invisible to the naked eye and must be verified by professional measurement systems. ZHHIMG adheres to the precision manufacturing concept of “measurable and manufacturable”, and is equipped with a full set of world-class detection instruments such as German Mahr precision gauges, Japanese Mitutoyo measuring tools, British Renishaw laser interferometers and Swiss WYLER electronic levels. All detection data is traceable to national metrology institutions with official calibration certification.

The company’s technical team and senior polishing masters have mastered global mainstream industry standards including DIN, ASME, JIS, GB and BS. With decades of manual polishing experience, they control the product flatness and dimensional accuracy stably at nanometer and micron levels. As the only enterprise in the industry with complete ISO and CE international certifications and multiple global patents and trademark layouts, ZHHIMG’s granite machine tool beds have authoritative credibility in global high-end industrial scenarios.

Granite machine tool beds are the core foundational components of the ultra-precision industry, widely applied in semiconductor production equipment, PCB precision drilling equipment, industrial CT, XRAY detection equipment, AOI optical inspection equipment, new energy battery testing equipment, ultra-precision laser equipment and three-coordinate measuring instruments. In high-precision manufacturing scenarios that require long-term stability and zero error, high-quality granite beds are the irreplaceable precision guarantee.

Relying on stable product performance and professional manufacturing strength, ZHHIMG granite machine tool beds have entered the global supply chain of many Fortune 500 enterprises and top scientific research institutions, providing reliable basic component support for the upgrading of global ultra-precision manufacturing. In the future, with the continuous development of high-end precision industry, high-standard granite machine tool beds will become more important core infrastructure for intelligent and ultra-precision manufacturing.
