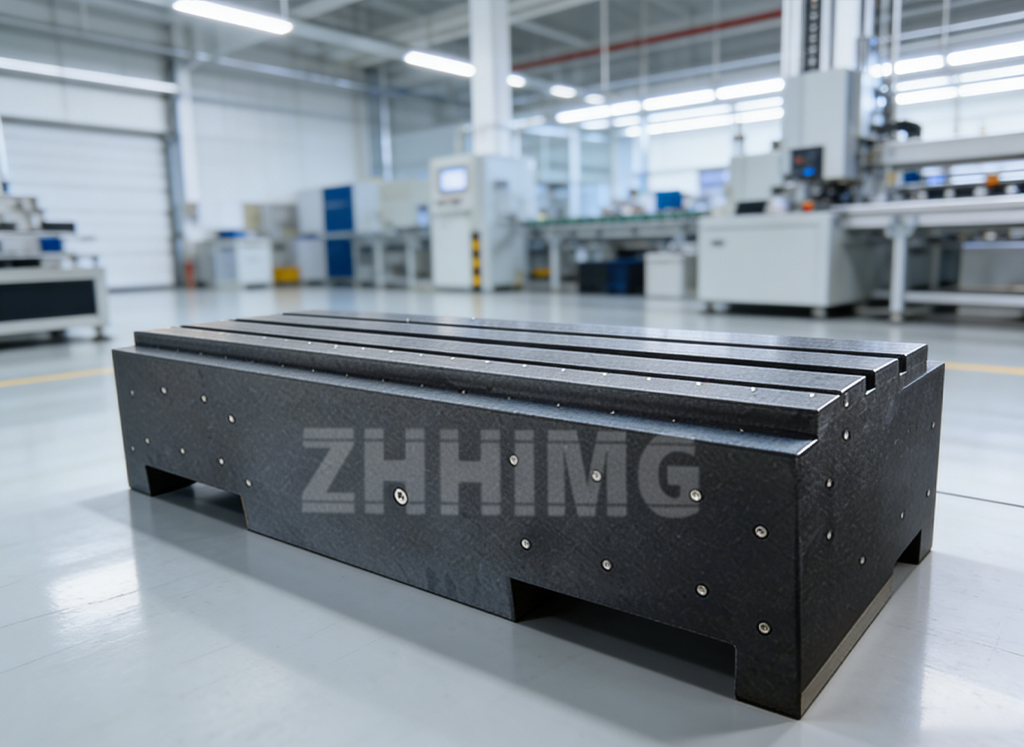

What practical advantages does granite surface plate with metal T-slots have?

 Combining ultra‑stable granite substrate with embedded metal T‑slot inserts, granite surface plate with metal T‑slots solves long‑standing pain points between high‑precision reference plane and reliable work‑holding. This article unpacks its real‑world practical merits for metrology, semiconductor, laser and precision assembly scenarios, shared by ZHHIMG, a leading full‑range ultra‑precision component manufacturer.

JINAN, CHINA — For decades, metrology engineers faced a classic trade‑off: solid granite delivers unmatched flatness, thermal stability and vibration damping, yet raw granite cannot bear repeated bolt clamping force; cast‑iron T‑slot tables provide powerful fixturing capacity, but suffer thermal drift, rust risk and long‑term flatness degradation. Granite surface plate assembled with precision embedded metal T‑slots bridges this gap, merging granite’s metrology‑grade stability with metal inserts’ robust clamping capability. As the only manufacturer in this sector holding ISO9001, ISO45001, ISO14001 and CE certifications, ZHHIMG manufactures custom metal T‑slot granite plates from high‑density black granite (≈3100 kg/m³), with performance exceeding ordinary European‑American granite, far superior to low‑cost marble substitutes widely used by inferior suppliersZHONGHUI I…. Below are its core practical advantages in real‑world production and laboratories.

Pure granite cannot withstand concentrated shear stress generated by frequent tightening T‑bolts; direct‑milled granite‑only T‑slots risk local chipping and micro‑cracks after repeated fixture replacement, gradually ruining reference flatness. By installing high‑strength machined metal T‑slot inserts into pre‑processed granite grooves with high‑reliability bonding structure, all clamping stress is undertaken by metal inserts rather than stone matrix. The main granite working surface stays intact, maintaining nano‑level flatness performance. Even under frequent fixture re‑positioning for CMM calibration, optical inspection set‑up or prototype assembly, the overall reference accuracy will not deteriorate. Every finished plate from ZHHIMG is verified with Renishaw laser interferometer, Mahr 0.5 μm comparators and WYLER electronic levels, with inspection records traceable to national metrology institute standards.

Standardized metal T‑slot profiles support universal T‑bolts, T‑nuts, clamping kits, positioning stops and custom tooling. Engineers can freely adjust fixture positions across the full working area without drilling extra threaded holes on granite plates. For mixed‑batch inspection jobs: multi‑specimen calibration, AOI optical testing, femtosecond‑laser component alignment, X‑ray equipment bench assembly and lithium‑battery sample inspection, operators rapidly reconfigure clamping layout. It drastically cuts fixture modification time, improves lab and pilot‑line turnover efficiency. ZHHIMG supports custom T‑slot pitch, slot width and insert layout according to DIN876, ASME and GB metrology standards, matching customers’ existing fixture inventory.

Different from full cast‑iron T‑slot tables prone to rust, oxidation and oil‑pollution in humid workshop or semiconductor clean‑room environments, the granite base is non‑magnetic, moisture‑resistant and corrosion‑free, requiring no anti‑rust oil treatment. Hardened metal T‑slot inserts adopt anti‑corrosion surface treatment to resist coolant, dust and workshop chemical vapors. High‑density black granite absorbs external mechanical vibration effectively, suppressing outside disturbance for high‑sensitivity measuring sensors. Compared with metal‑only platforms, this composite structure reduces frequency of re‑calibration. ZHHIMG’s 10 000 m² constant‑temperature‑humidity workshop with anti‑vibration trenches guarantees consistent assembly quality for large‑size T‑slot granite plates up to 6000 mm.

Metal cast‑iron work‑tables have relatively higher thermal expansion coefficient; temperature swings will bring observable plane distortion and offset measuring reading. ZHHIMG black granite features low thermal expansion performance. Since metal T‑slots are embedded inserts rather than the main reference surface, the whole platform retains granite’s core thermal‑stable merit. In non‑strict‑constant‑temperature workshops or mobile metrology stations, it still keeps reliable measuring benchmark, critical for precision laser equipment, perovskite coating equipment base and tool‑setting inspection stations.

ZHHIMG metal T‑slot granite surface plates serve as multi‑functional benchmark platform across diverse high‑end sectors: semiconductor equipment assembly, PCB drilling machine debugging, CMM fixture base, optical AOI inspection, industrial‑CT & X‑RAY equipment bench, linear‑motor XY‑table mounting, new‑energy component testing and university metrology laboratory test‑beds. Many global clients including world‑top 500 enterprises and metrology research institutes select this solution, for both on‑site measurement and permanent equipment base.
