Many enterprises only focus on protecting precision granite surface plates during measurement operations, yet tend to overlook protection during idle storage. While plates sit seemingly stationary and unloaded in warehouses, hidden factors including temperature and humidity fluctuations, ground settlement, dust accumulation and external compression gradually erode their nano-level lapped reference benchmarks. After stress relief aging and ultra-precision lapping, ZHHIMG® granite surface plates feature highly sensitive finished reference surfaces. Idle storage is not simply placing the plate in a corner. A systematic static protection plan mitigates potential precision degradation during storage and guarantees stable performance when reactivated.
1. Storage Site Selection: Avoid Slow Deformation Risks from the Environment
Site selection is the priority for idle storage. Placing plates in open areas, warehouse entrances, near cooling fans or heating pipelines is prohibited. Continuous temperature differences and alternating hot-cold airflow generate recurring micro-stress inside the stone. In humid conditions, water vapor continuously seeps into stone micropores, triggering oxidation of internal minerals and stubborn rust stains. Ground conditions also matter: soft, settling floors shift support force distribution, and long-term static eccentric load gradually deforms the reference plane.
Prioritize indoor spaces with constant temperature, low humidity and stable ventilation, away from doors, windows, heat sources and air outlets. The ground must be solid and flat; load-bearing base plates may be laid if needed. Keep away from vibration sources. Do not store plates under overhead cranes, stamping equipment or air compressors. Persistent low-frequency vibration disturbs the internal crystal structure of stone and creates risks of precision drift.
2. Optimize Support Structure to Evenly Distribute Static Loads
Common storage mistakes include placing plates directly on the ground, using random support points or stacking plates. Although granite features high rigidity, excessive force at single points causes stress concentration after long static placement. Stacking plates squeezes the lower plate under the weight of upper workpieces, easily bending the plate and chipping edges.

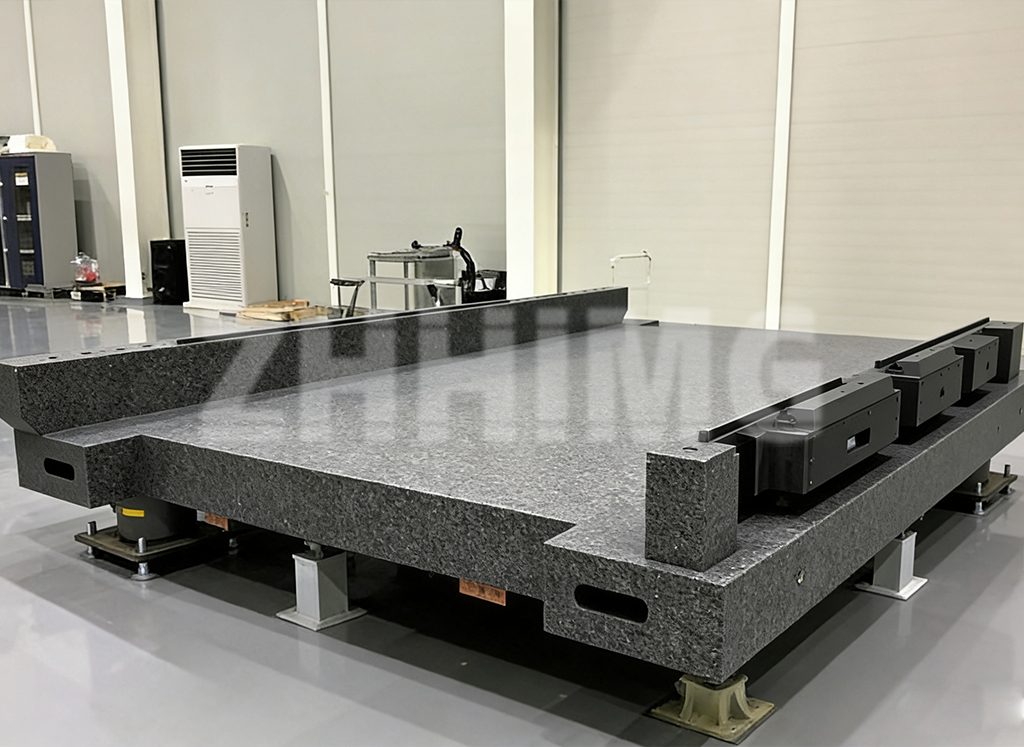

Store plates with the original multi-point support structure designed by the manufacturer, with fixed support positions to evenly spread loads across the plate bottom. Support pads are made of low-hardness, high-stability non-metallic materials to prevent scratching the plate underside. Never stack two plates face-to-face. Trapped particles may indent the precision lapped surface. Heavy plates must never remain on one-sided supports long-term, to avoid irreversible bending deformation caused by eccentric loading. Inspect support feet for looseness before storage and ensure balanced force bearing.
3. Clean and Dry Working Surface before Dust-Sealed Protection
Complete full cleaning before warehousing and sealing. Remove metal debris, oil contamination and sweat marks entirely from the working surface. Sealing with stains left on the surface lets contaminants embed deeply into micropores in the sealed environment, making them extremely hard to remove later. Residual moisture trapped under the dust cover continuously corrodes stone crystals.
After cleaning, fully dry the plate, then cover it with a dedicated dust cover. The cover shall be breathable to avoid condensation. Do not wrap the plate long-term with fully airtight plastic film, as vapor condenses inside and dampens the surface. Dust covers block settled floating dust. Dust accumulated on lapped surfaces creates abrasive friction during later handling and scratches nano benchmarks.
4. Isolate External Forces to Prevent Collision and Extra Loads during Storage
Frequent material handling in warehouses brings risks of forklifts and turnover boxes striking plate edges. Granite edges are weak stress zones. Minor impacts create invisible microcracks that slowly expand during long storage and subsequent use, ruining flatness. Never stack toolboxes, measuring tools or raw materials on top of dust covers. Extra loads alter the stress state of stone.
Mark an independent isolated storage zone with warning signs, separated from aisles and handling areas. Reserve sufficient clearance around plates. Do not lean turnover materials against plate sides. Store handling tooling and clamps separately, away from plate edges. For long-term sealed storage, install removable anti-collision corner protectors to minimize accidental impact risks.
5. Long-Term Idle Storage: Periodic Inspection and Condition Recheck
Many companies seal plates and leave them unchecked for months or even years, discovering precision drift and surface rust only at reactivation. Static storage is not maintenance-free. Seasonal shifts change environmental parameters, bringing temperature/humidity swings and slow ground settlement.
Build inspection schedules based on idle duration: check dust protection and condensation monthly for short-term storage. For storage longer than half a year, perform flatness re-verification before use besides visual inspection. Use electronic levels for simple metrology checks to confirm benchmark integrity. Address rust or water stains on the surface with professional cleaning promptly. Re-level and recheck precision if the storage area is renovated or the ground repaired.
6. Static Conditioning and Leveling before Reuse to Eliminate Thermal Lag from Storage
Do not use the granite plate for precision measurement immediately after moving it out of storage. Temperature differences exist between warehouse and workshop. Massive stone substrates have large heat capacity and require time for full temperature equalization. Uneven temperature causes temporary deformation and measurement deviation.
Place the plate together with its support base in the working environment and let it rest until the whole stone reaches thermal balance with the workshop. Perform leveling and precision verification afterwards. Confirm flatness compliance before putting it into service. This often skipped step is critical to restore idle plates.
Conclusion
The core of protection for idle granite surface plates lies in maintaining a stable environment, balanced stress, and isolation from contamination and impact. ZHHIMG granite substrates deliver excellent stability, yet nano-precision lapped benchmarks still require protection during long static storage. Proper site selection, standardized support, dust & moisture control, collision isolation, regular inspection and thermal conditioning before reuse prevent hidden damage during storage. This ensures the plate retains original benchmark performance after long placement and reduces costs for re-lapping.
