In the landscape of high-end equipment manufacturing, a machine’s base and skeleton directly determine its precision ceiling and long-term lifespan. As one of the core configurations in modern ultra-precision mechanical design, the granite gantry structure has become the preferred baseline for numerous cutting-edge industries due to its exceptional spatial symmetry, outstanding dynamic rigidity, and unmatched damping characteristics.
As a synonymous standard-setter in the industry, ZHHIMG® boasts globally leading processing capabilities and exceptional reputation in the manufacturing of ultra-precision natural granite components. Our $3100\,\text{kg/m}^3$ premium black granite and ultra-large CNC mother machines provide a rock-solid skeleton for various cutting-edge devices. So, which precision equipment is best suited to use granite gantry structures as its main support? This article provides an in-depth review.
I. Semiconductor Manufacturing and Packaging Equipment
The line width of semiconductor chips has long entered the nanometer scale, requiring chip manufacturing and packaging equipment to possess extremely high micro-motion precision and anti-interference capabilities.
-
High-Speed PCB Drilling Machines: The spindles of drilling machines must frequently reciprocate within a plane at extremely high accelerations. If metal gantry structures are used, mechanical resonances induced by high-speed motion easily lead to hole position deviations. The natural high-damping performance of granite gantry structures instantly absorbs motion-induced aftershocks, ensuring absolute precision in micron-level drilling.
-
Perovskite Coating Machines and New Energy Lithium Battery Testing Equipment: In large-area thin-film coating and precision testing of new energy batteries, the flatness of the baseplate and the long-term stability of the gantry span are critical. ZHHIMG®’s granite gantries, paired with high-precision granite air bearings, provide a smooth, flat-as-earth motion trajectory for coating and inspection heads.
II. High-End Optical and Laser Precision Processing Equipment
The advancement of optoelectronic technology places rigorous demands on spatial positioning and optical path collimation, where any minor thermal deformation or structural distortion can cause optical failure.
-
Femtosecond and Picosecond Ultrafast Laser Processing Equipment: Ultrafast laser micro-machining relies on high-precision multi-axis linkage. Granite gantry structures effectively prevent laser focusing lens assemblies from generating vibrations and displacements during high-speed scanning.
-
Automated Optical Inspection (AOI) Equipment, Industrial CT, and X-RAY Equipment: In nondestructive testing and high-magnification optical automated inspection, the relative position between the X-ray source and detector (or camera and staging platform) must remain absolutely constant. Because granite has a thermal expansion coefficient far lower than metals, its gantry structure perfectly resists geometric drift caused by workshop temperature fluctuations.
III. Coordinate Measuring Machines (CMMs) and Metrological Measuring Instruments
“If you cannot measure it, you cannot manufacture it.” Metrological equipment itself must serve as an absolutely reliable standard before it can evaluate other industrial products.
-
Bridge-type and Gantry-type Coordinate Measuring Machines (CMMs): The $X, Y, and Z$-axis movements of CMMs typically rely on gantry structures. Granite gantry structures not only guarantee extremely high orthogonal perpendicularity, but their surfaces can also be directly lapped to produce nanometer-grade guiding reference planes. Combined with ZHHIMG®’s master craftsmen with over 30 years of experience in manual precision lapping, the straightness and flatness of the gantry reach extremes, ensuring measurement results are directly traceable back to the national metrology institute.
-
Video Measuring Systems (VMS) and Contour/Guide Screw Measuring Devices: These devices are widely used for the geometric tolerance re-inspection of precision parts. The symmetrical spatial layout of granite gantry structures minimizes geometric errors caused by self-weight sagging.
IV. High-End CNC Machining and Direct-Drive Motion Platforms
In Micro-Electro-Mechanical Systems (MEMS) processing, precision mold manufacturing, and high-end tool inspection bases, dynamic performance is a core consideration.
-
XY Tables and Linear Motor Precision Platforms: Modern direct-drive platforms feature high speeds and large accelerations, posing extremely high demands on the rigidity of supporting bases and gantries. ZHHIMG® produces granite bases and gantries that, combined with heavy-duty overhead cranes and CNC equipment, can integrally machine workpieces up to 20 meters long and weighing over 100 tons, perfectly supporting heavy-load, high-dynamic linear motor platforms while avoiding internal stress deformations caused by long-term fatigue in traditional cast iron or welded steel frames.
Conclusion
From semiconductor packaging to laser micro-machining, and from coordinate measuring to new energy testing, granite gantry structures are progressively replacing traditional metal structures to become the “core standard configuration” for cutting-edge precision equipment.

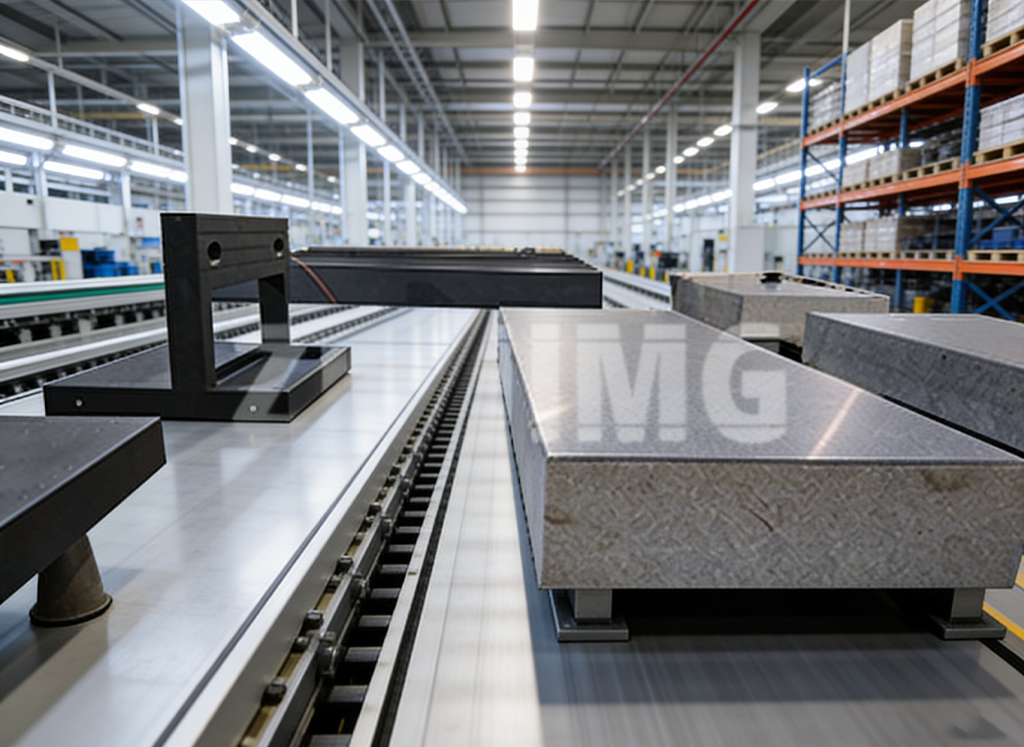

Relying on our $200,000\,\text{m}^2$ modern factory, Taiwan Nantian ultra-large grinding machines, ten-thousand-level constant-temperature and constant-humidity clean assembly workshops, and world-class testing equipment such as UK Renishaw laser interferometers, ZHHIMG® is dedicated to providing flawless customized granite gantries and components to global clients. We will continue upholding our commitment of “No cheating, No concealment, No misleading” and our quality policy of “The precision business can’t be too demanding” to empower the thriving development of global ultra-precision industries!
