Why Industrial Laser Machines Rely on Granite Gantry Structure?

High-frequency reciprocating movement of laser galvanometers, linear motor slides and rotating worktables generates constant micro-vibration inside laser machines. Metal frames transmit vibration quickly; vibration resonance will offset laser focus points, resulting in inconsistent cutting edges, dimensional errors and scrapped workpieces. Marble has loose internal crystals and poor vibration absorption capacity, and tiny vibrations will deform its reference surface after long-term operation.

High-density black granite used by ZHHIMG features compact interlocking crystal structures with powerful natural vibration damping capacity. The stone absorbs and eliminates mechanical micro-vibrations generated by laser motion components instantly, avoiding vibration resonance inside the whole equipment. When laser equipment runs at full speed for days, the laser focus stays locked at the preset position without offset, ensuring uniform processing precision for batches of products.

Industrial laser equipment accumulates continuous heat from laser emitters, drive motors and power modules during non-stop production. Metal frames expand obviously under heat, pushing the laser head to shift horizontally and vertically. Even tiny thermal displacement will lead to blurred laser focusing and poor processing yield. Marble expands and contracts severely under temperature fluctuations, causing irreversible bending deformation of the beam structure.

Our selected black granite reaches a density of 3100kg/m³, with an extremely low linear thermal expansion coefficient far superior to European and American granite. The stone barely expands or contracts with workshop temperature changes and equipment heat accumulation. The laser head, optical lens base and mobile slide installed on the granite gantry maintain fixed relative positions in high-temperature continuous operation, eliminating precision loss caused by thermal drift of laser focus.

High-power industrial laser equipment is equipped with large laser generators, long-stroke linear motor platforms, multi-axis galvanometer assemblies and auxiliary dust removal modules. These heavy components place continuous static and dynamic compressive loads on the equipment gantry. Thin metal beams bend under heavy loads after long-term use, while marble easily produces internal micro-cracks under pressure, triggering permanent structural deformation.

ZHHIMG customizes integrated one-piece granite gantry beams for laser equipment, processed from complete large-size black granite blanks. The natural compressive rigidity of granite far exceeds marble and ordinary metal profiles. The integral gantry bears heavy laser components evenly without bending or local sinking. Even long-stroke high-speed reciprocating loads will not damage the flat reference plane of the gantry, keeping the laser motion axis parallel and vertical for years.

Industrial laser machines are equipped with high-sensitivity encoders, magnetic linear scales and servo drive controllers. Metal gantries generate magnetic induction interference when matched with magnetic measuring components, distorting position signal feedback and causing random positioning errors during laser processing. Marble contains magnetic mineral impurities, which also create minor magnetic field interference for precision electronic parts.

Natural black granite is completely non-magnetic with no ferromagnetic impurities inside. When laser encoders, magnetic grating rulers and servo systems are mounted on granite gantries, no extra magnetic interference distorts signal transmission. The laser control system obtains accurate, stable real-time position data at all times, avoiding random processing defects caused by signal deviation. This unique non-magnetic characteristic makes granite irreplaceable for high-precision laser processing equipment.

Laser optical calibration relies entirely on the flat benchmark of the equipment gantry. Metal frames wear and scratch easily after long-term slide friction, requiring frequent re-calibration and flatness correction. Marble suffers surface corrosion from laser dust, cutting waste gas and cooling liquid, leading to pitting and flatness attenuation in a short service cycle.

All ZHHIMG laser-grade granite gantries go through multi-layer balanced fine grinding by senior craftsmen with over 30 years of hand polishing experience. The processed stone surface achieves ultra-high flatness and wear resistance. Dense granite crystal gaps hardly absorb laser dust and weak corrosive gas generated during processing. The gantry benchmark surface maintains nano-level flatness for long-term continuous laser production, greatly reducing frequent disassembly, re-calibration and maintenance work for laser equipment manufacturers and end users.

The structural span of industrial laser machines varies greatly: small marking lasers adopt compact short gantries, while large-format laser cutting and femtosecond micro-processing equipment require ultra-long-span integrated gantry beams. Most small stone processors cannot complete integral forming of oversized granite structures and can only splice multiple small stone blocks. Spliced gantries produce assembly gaps and stress concentration points, seriously damaging laser positioning stability.

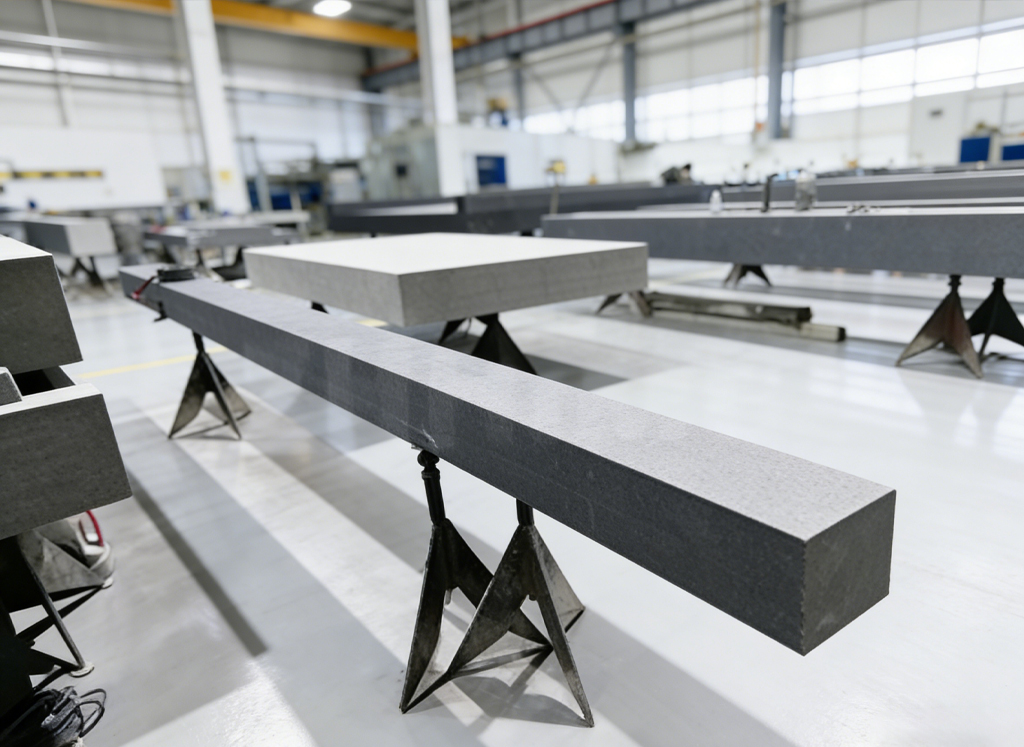

Supported by two large factories covering 200,000㎡ and heavy-duty CNC processing equipment, ZHHIMG can machine integral granite gantries with a maximum length of 20 meters. Independent exclusive production lines for granite structural parts realize one-piece forming without splicing for large-span laser equipment gantries. Each integral gantry eliminates assembly gaps and hidden stress risks of spliced stone blocks, providing a complete, stable benchmark frame for diversified industrial laser equipment of different power and processing formats.

Vibration absorption, thermal stability, high rigidity, non-magnetic performance and long-term flatness retention are six core advantages that make granite gantries the preferred frame for all high-precision industrial laser machines. For laser equipment manufacturers pursuing stable batch processing yield and low later maintenance costs, integral granite gantry structures are an indispensable core design.

ZHHIMG customizes exclusive granite gantry solutions for femtosecond laser, picosecond laser, fiber laser cutting and laser micro-drilling equipment, serving many world-famous laser machinery brands worldwide. If you need customized ultra-stable granite gantry structures for your industrial laser equipment, contact our professional engineering team for targeted design and technical parameters matching.
