Introduction: The Hidden Foundation Behind Semiconductor Precision

The semiconductor industry continues to push the boundaries of manufacturing accuracy. As chip technology advances toward smaller geometries, higher integration density, and more complex processes, semiconductor equipment manufacturers face increasingly demanding requirements for mechanical stability, vibration control, and long-term positioning accuracy.

While semiconductor equipment is often associated with advanced electronics, optical systems, and intelligent control technologies, one critical element is frequently overlooked: the mechanical foundation supporting the entire system.

A highly accurate semiconductor machine requires a stable foundation that can maintain precision over years of operation. This is why precision granite components and granite machine bases have become essential structural materials in many ultra-precision applications.

Unlike conventional metal structures, precision granite provides outstanding dimensional stability, excellent vibration damping, and reliable long-term accuracy, making it an ideal foundation material for semiconductor equipment, inspection systems, and precision automation platforms.

The Growing Demand for Ultra-Precision Equipment in Semiconductor Manufacturing

Modern semiconductor manufacturing involves extremely sensitive processes, including:

• wafer inspection
• lithography-related positioning
• laser processing
• precision dispensing
• wafer handling
• optical measurement
• semiconductor testing

These processes require motion systems capable of achieving micron-level or even nanometer-level positioning accuracy.

However, achieving such precision is not only dependent on motors, sensors, or control algorithms.

The mechanical structure itself plays a fundamental role.

Any small deformation caused by:

• temperature changes
• mechanical vibration
• external forces
• material instability

can directly influence equipment accuracy and production consistency.

For semiconductor equipment manufacturers, the question is not simply:

“Can the machine achieve high accuracy today?”

The more important question is:

“Can the machine maintain this accuracy after years of continuous operation?”

This is where precision granite demonstrates its unique advantages.

Why Granite Is an Ideal Material for Semiconductor Equipment Foundations

1. Excellent Dimensional Stability

One of the most important characteristics of precision granite is its long-term dimensional stability.

During semiconductor manufacturing, equipment often operates continuously under controlled environmental conditions. Even small dimensional changes in the machine structure can affect positioning accuracy.

Precision granite has:

• low thermal expansion
• excellent structural stability
• high resistance to aging deformation

Compared with many conventional materials, granite can maintain its geometric accuracy for extended periods.

This makes granite particularly suitable for:

• granite machine bases
• precision granite components
• inspection equipment structures
• motion system platforms

2. Superior Vibration Damping Performance

Vibration is one of the biggest challenges in ultra-precision manufacturing.

External vibration sources may come from:

• motors
• pumps
• factory environments
• nearby machinery
• motion systems

Even microscopic vibration can influence:

• optical inspection accuracy
• wafer alignment
• measurement repeatability
• surface processing quality

Natural granite has excellent vibration absorption characteristics because of its material structure.

Compared with many metal structures, granite can effectively reduce vibration transmission and help create a more stable working environment for precision equipment.

This is especially valuable for:

• semiconductor inspection machines
• optical measurement systems
• laser processing equipment
• precision positioning platforms

3. High Mechanical Stability and Load Capacity

Semiconductor equipment is becoming larger and more complex.

Many modern systems require:

• large working areas
• multi-axis motion systems
• high-load precision structures

A precision foundation must provide both:

• sufficient mechanical strength
• long-term geometric stability

High-quality precision granite provides excellent rigidity and stability while maintaining outstanding accuracy.

Large granite structures can be manufactured as:

• machine bases
• granite bridges
• granite beams
• precision support structures

For large-scale equipment manufacturers, this allows engineers to design stable platforms without sacrificing precision performance.

4. Excellent Surface Flatness for Precision Applications

Precision granite is widely used in metrology because it can achieve extremely high surface accuracy.

Typical applications include:

• granite surface plates
• granite inspection platforms
• precision measuring references

A stable reference surface is essential for:

• equipment assembly
• calibration
• dimensional inspection
• quality control

Without a reliable reference foundation, even advanced measurement instruments cannot deliver accurate results.

As the saying goes in precision manufacturing:

“If you cannot measure it, you cannot manufacture it.”

Measurement capability is the foundation of precision engineering.

Granite vs Traditional Metal Structures: Why Engineers Choose Granite

For ultra-precision industries, the goal is not simply to build a strong structure.

The goal is to build a structure that remains accurate.

The Importance of Granite Quality in Ultra-Precision Applications

Not all granite materials are suitable for precision manufacturing.

The performance of granite depends on:

• mineral composition
• density
• internal structure
• processing technology
• surface finishing capability

For ultra-precision applications, manufacturers must carefully control:

• material selection
• aging treatment
• precision grinding
• dimensional inspection

ZHHIMG® selects high-quality black granite specifically developed for precision applications.

With high density (approximately 3100 kg/m³), excellent stability, and superior physical properties, ZHHIMG® precision granite is designed for demanding industries where accuracy and reliability are critical.

Precision Granite Applications in Semiconductor and Advanced Manufacturing

Today, precision granite components are widely used in:

Semiconductor Equipment

Applications include:

• semiconductor inspection systems
• wafer processing equipment
• precision positioning platforms

Optical and Laser Equipment

Including:

• laser processing machines
• optical inspection systems
• high-precision measurement equipment

Automation and Motion Systems

Including:

• linear motor platforms
• XY stages
• precision assembly equipment

Metrology Equipment

Including:

• CMM machines
• granite surface plates
• calibration systems

How ZHHIMG® Supports Ultra-Precision Industries

As a professional manufacturer of precision granite components, ZHHIMG® focuses on providing stable and reliable foundation solutions for global precision industries.

The company combines:

• advanced machining equipment
• precision grinding technology
• professional metrology systems
• experienced craftsmanship

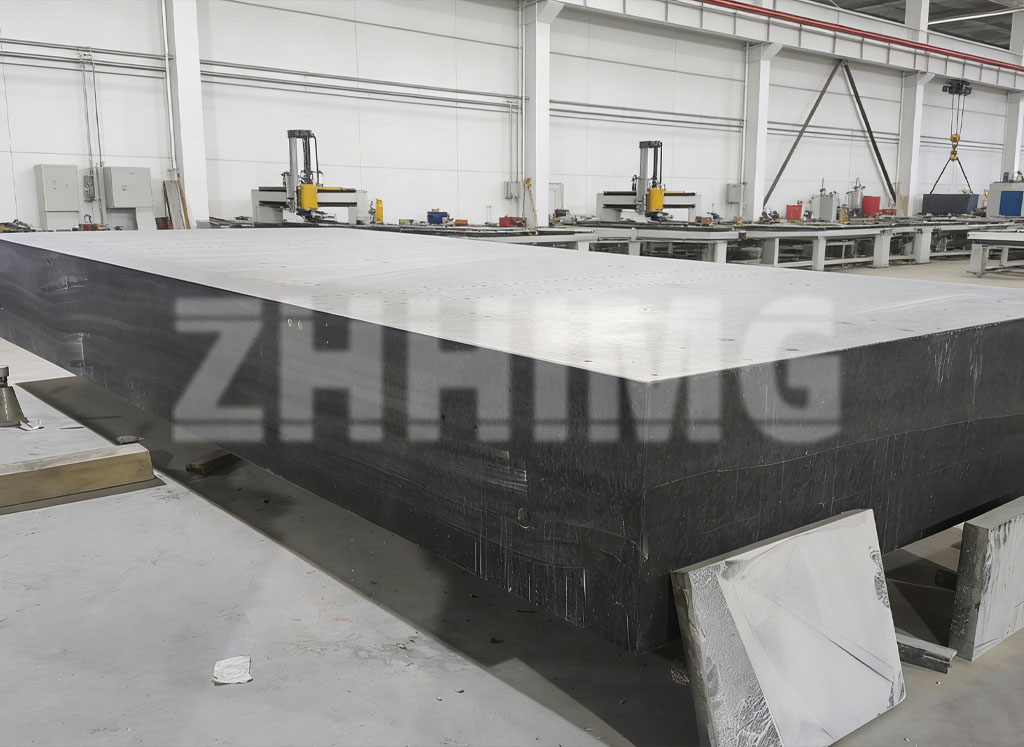

ZHHIMG® operates large-scale manufacturing facilities capable of producing oversized precision granite structures for demanding industrial applications.

The company’s measurement philosophy is:

“If you cannot measure it, you cannot manufacture it.”

Through strict measurement control and traceable calibration systems, every precision granite component is manufactured according to international precision standards.

Future Trends: Granite Continues to Support Next-Generation Manufacturing

As industries such as:

• semiconductor
• artificial intelligence hardware
• advanced robotics
• optical technology
• new energy equipment

continue to develop, demand for ultra-stable mechanical structures will continue growing.

Precision granite will remain an important material choice because modern manufacturing requires not only speed and automation, but also absolute accuracy and long-term reliability.

Conclusion

Precision granite has become one of the most important foundation materials for semiconductor equipment and ultra-precision manufacturing.

Its unique combination of:

• dimensional stability
• vibration damping
• thermal performance
• precision machinability

makes it an ideal solution for applications requiring long-term accuracy.

For equipment manufacturers working toward higher precision, choosing the right foundation material is not a secondary decision—it is a critical engineering choice.

A stable foundation creates stable precision.
