ZHHIMG: A Direct Manufacturer for Custom Granite Surface Plates in All Specifications

There is no such thing as a “one-size-fits-all” surface plate in precision manufacturing. Semiconductor equipment makers demand bases with ultra-low vibration and nanometer-level flatness; CMM manufacturers prioritize long-term stability and thermal consistency; new-energy inspection lines require tight geometric tolerances under large dimensions and heavy loads. Every application imposes distinct requirements on material grade, size, and structural form. This is precisely why a growing number of overseas buyers are bypassing traders and going directly to source manufacturers like ZHHIMG—because only with full in-house control, from raw stone to finished product, can “customization” be delivered in any meaningful sense.

Many buyers fall into the trap of assuming that a granite plate is “the more expensive, the better.” In reality, sound customization begins with matching the application. ZHHIMG offers multiple flatness grades, from grade 00 through grade 0 to grade 1, all built on black granite with a density of approximately 3100 kg/m³—a material far denser and more dimensionally stable than ordinary stone, and incomparable with the low-cost marble that some suppliers pass off as granite.

For metrology laboratories and semiconductor cleanrooms, ZHHIMG delivers reference plates with flatness approaching the nanometer range; for equipment assembly, tooling, and fixturing, it provides industrial-grade solutions that balance precision and cost. This graded, application-driven approach helps customers avoid over-specifying while still meeting performance needs.

Size range is where source manufacturers and ordinary job shops diverge most sharply. ZHHIMG’s machining capability spans both extremes: on one end, compact granite components and gauge accessories for precision instruments; on the other, ultra-large monolithic plates up to 20 meters long, 4,000 mm wide, 1,000 mm thick, and weighing up to 100 tons.

This full-size capability rests on a dual-factory layout covering 200,000 m², four Taiwan Nante ultra-large grinding machines (each valued at over USD 500,000, capable of grinding platforms up to 6,000 mm in a single setup), and four dedicated production lines with a monthly output of 20,000 sets of 5,000 mm-class precision beds. Whether a customer needs a bench-top inspection plate or a granite base for an entire linear-motor stage, it can be completed in one facility—eliminating the precision loss and lead-time risk of outsourcing.

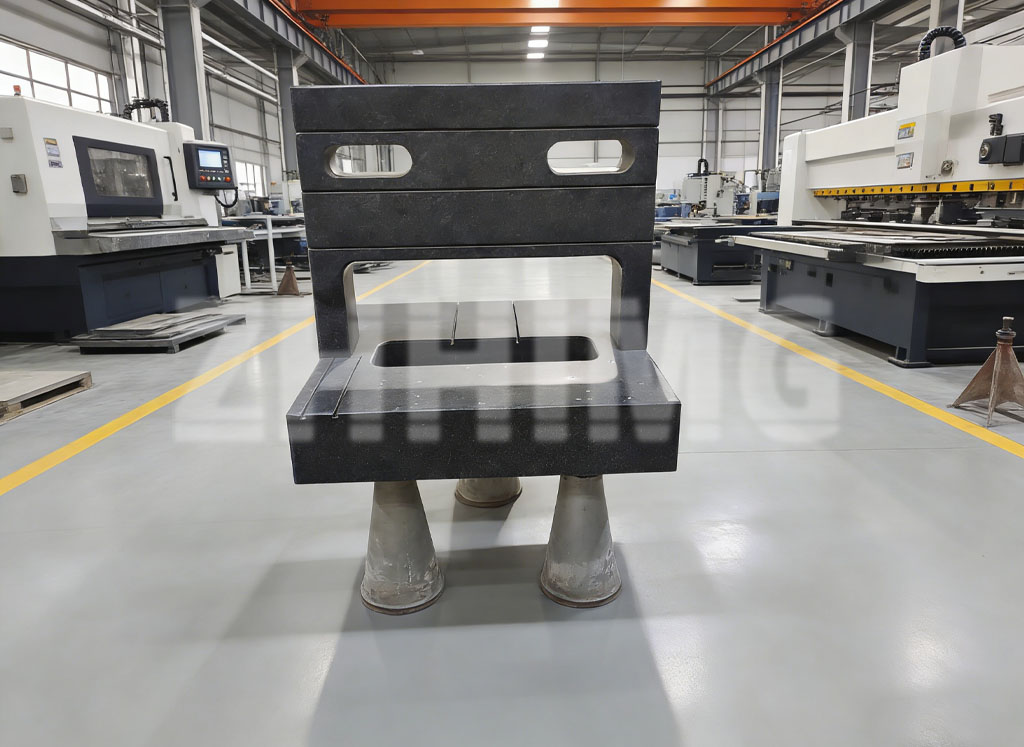

Modern precision equipment demands far more from granite components than a flat surface. ZHHIMG’s customization extends into structural integration: precision drilling, threaded insert installation, guideway mounting-face grinding, air-bearing surface machining, and even precision assembly of granite with metal and ceramic components inside a temperature- and humidity-controlled cleanroom.

For semiconductor customers, for example, ZHHIMG can complete granite component assembly and debugging in a simulated semiconductor fab environment, ensuring the parts are ready for installation upon arrival. For air-bearing guideway applications, it can machine working surfaces that meet micron-level air-film uniformity requirements. This integrated “plate + structure + assembly” model saves customers the hassle of coordinating multiple suppliers.

The value of customization is ultimately realized through verifiable precision. ZHHIMG provides a complete metrology dossier for every plate shipped. Inspection is carried out with equipment including a German Mahr dial indicator (0.5 μm), a Swiss WYLER electronic level, and a British Renishaw laser interferometer, with all measurements traceable to the national metrology institute. The team is proficient in German DIN, U.S. GGG-P-463C-78, ASME, Japanese JIS, and British BS817 standards, and can issue inspection reports aligned with the target market.

Notably, most of ZHHIMG’s hand-lapping specialists have over 30 years of experience, with a tactile precision at the micron level—in the final finishing stage, this human-machine combination remains irreplaceable by fully automated lines.

Choosing a source manufacturer is, at its core, choosing supply-chain certainty. ZHHIMG operates its own 20,000 m² raw-stone yard with ample reserves, and handles cutting, rough grinding, fine lapping, inspection, packaging, and shipping entirely in-house. Headquartered in Jinan and close to the Port of Qingdao, the company offers convenient sea freight for export. For overseas customers, this means shorter lead times, a more transparent production process, and direct access to engineering teams rather than intermediaries when technical issues arise.

As the only company in the industry holding ISO 9001, ISO 45001, ISO 14001, and CE certifications simultaneously, and with more than 20 international trademarks and patents registered in the EU, the U.S., Southeast Asia, and other regions, ZHHIMG supplies global leaders including GE, Samsung, Bosch, Schunk, THK, HIWIN, MISUMI, Flex (Israel), 5th Axis (U.S.), and Akribis (Singapore), as well as national metrology institutes in Germany, the UK, France, and Russia, and research institutions such as the National University of Singapore and Nanyang Technological University.

When “customization” evolves from a marketing slogan into an end-to-end capability spanning material selection to structural integration, the granite surface plate ceases to be a commodity and becomes the core reference of precision equipment. As a direct manufacturer, ZHHIMG ensures that every customer receives the plate truly suited to their production line.
