Modern laser systems — from femtosecond pulse lasers used in eye surgery and materials micro-processing to picosecond lasers in semiconductor scribing and ultrafast spectroscopy — must position their beams and workpieces with spatial accuracy measured in micrometers, sometimes nanometers. The physics of light may be exquisite, but the mechanics that position the optical and workpiece stages must be equally precise.
Across this spectrum of laser precision applications, one component appears repeatedly: the air bearing granite stage. A seemingly counterintuitive combination — ancient rock mated with cutting-edge pneumatic bearing technology — the air bearing granite stage has become a de facto standard in precision laser systems because it resolves, better than any alternative, the fundamental engineering challenges of frictionless motion, vibration isolation, and dimensional stability.
This article examines the engineering principles behind air bearing granite stages, explains why granite and air bearings form such a productive partnership, and traces their applications across the landscape of modern precision laser systems.
Air Bearings: Frictionless Motion at the Nanometer Scale
Conventional rolling element bearings — balls or rollers moving in raceways — are the workhorse of mechanical motion systems. They are reliable, compact, and capable of high load capacity. But they have a fundamental limitation: they exhibit stick-slip behavior, the irregular micro-motion that occurs as static friction gives way to kinetic friction at the moment of initial movement, and as asperities in the rolling surfaces interact.
At macroscopic scales, stick-slip is a minor nuisance. At the nanometer scale, it is a fundamental barrier to smooth, repeatable motion. A positioning system that must achieve 10-nanometer repeatability cannot tolerate a bearing that exhibits 100-nanometer stick-slip during motion initiation.
Air bearings eliminate stick-slip entirely by replacing mechanical contact with a thin pressurized air film — typically 5–15 micrometers thick — that completely separates the moving stage from the reference surface. With no mechanical contact, there is no friction in the conventional sense, no stick-slip, and no wear. The stage glides on air, and the motion can be as smooth and repeatable as the straightness of the reference surface allows.
The implications for precision motion are profound. An air bearing stage can move in increments of nanometers with repeatability that challenges the measurement equipment used to verify it. Velocity can be controlled to better than 0.01% uniformity at speeds from micrometers per second to meters per second. The bearing itself contributes essentially zero force variation across its travel — a property that is critical for laser systems where force disturbances would excite mechanical resonances and corrupt beam position.

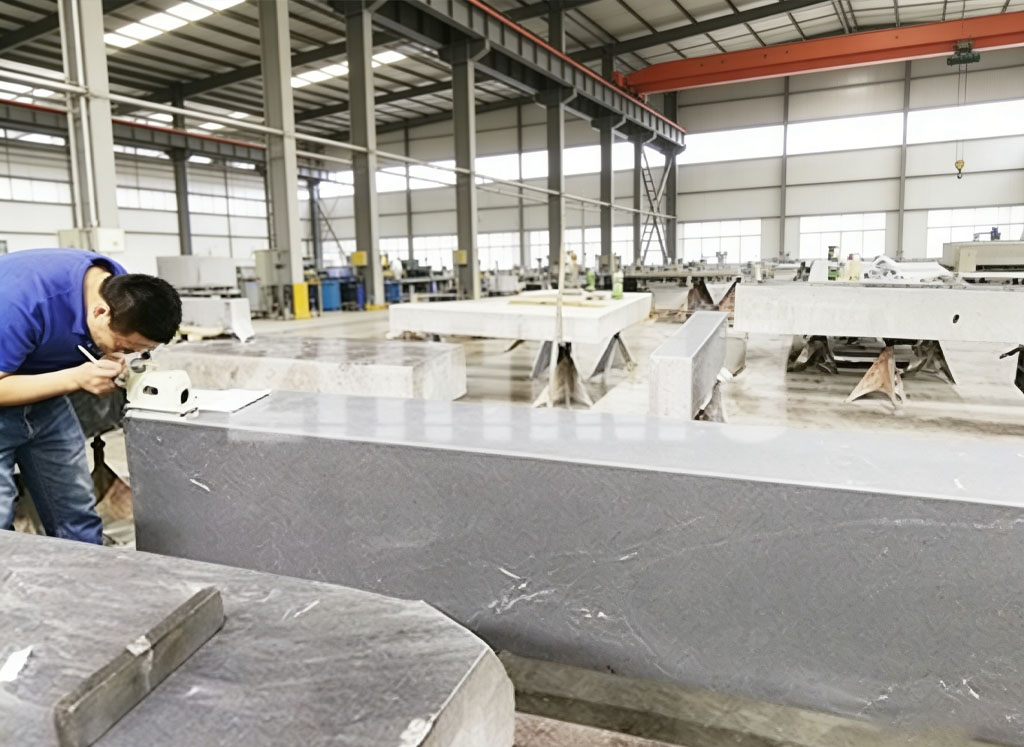

Why Granite Is the Ideal Air Bearing Reference Surface
An air bearing stage is only as good as the surface over which it rides. The reference surface must satisfy several demanding requirements simultaneously.
First, flatness. Air bearings are sensitive to surface form errors because the air film thickness (typically 5–15 μm) is comparable in magnitude to the surface flatness tolerances that can be achieved in precision grinding and lapping. A surface undulation of 1 μm causes a 1 μm variation in air gap — which translates directly into a 1 μm vertical position error in the stage. For a system targeting 100-nanometer vertical accuracy, the reference surface must be flat to significantly better than 100 nanometers over the full travel range.
Second, surface roughness. The air film in an air bearing is stabilized by the viscous properties of air flowing between the bearing pad and the reference surface. Excessive surface roughness disrupts the air film, creates pressure variations, and introduces noise into the stage’s motion. Surface roughness values below Ra 0.05 μm (50 nanometers) are typically required for the finest air bearing applications.
Third, hardness and wear resistance. While air bearings are designed to avoid contact, occasional contact can occur during startup, emergency stops, or air supply failure events. The reference surface must be hard enough to resist scoring or damage from these events. Granite, with a Mohs hardness of 6–7 (contributed largely by its quartz content), provides significantly better wear resistance than aluminum or most plastics, and is comparable to or better than hardened steel for this purpose.
Fourth, thermal stability. The air gap in an air bearing is a precisely controlled geometric parameter. Thermal expansion that changes the gap changes the bearing’s stiffness and load capacity — and changes the stage’s reference position. Granite’s relatively low and consistent thermal expansion coefficient, combined with its high thermal mass (slow response to temperature changes), provides the stability that precision laser systems demand.
Fifth, non-magnetic and non-conductive properties. Many laser positioning systems use linear motor drives, which generate magnetic fields. A ferromagnetic machine base would interact with these fields, creating force disturbances and potentially causing calibration drift as the magnetic history of the material changes. Granite’s non-magnetic, non-conductive nature eliminates these interactions entirely.
Femtosecond Laser Systems: Extreme Demands on Precision Positioning
Femtosecond lasers produce pulses shorter than 1 picosecond — billionths of a millionth of a second. At these timescales, the laser-matter interaction is fundamentally different from conventional laser processing: material is ablated so quickly that heat has no time to diffuse into the surrounding material, enabling precision cutting with heat-affected zones measured in nanometers rather than millimeters.
This capability is exploited in corneal surgery (LASIK), precision micromachining of electronic components, structuring of materials for photonics applications, and generation of extreme ultraviolet (EUV) radiation for next-generation lithography. In each application, the position of the laser focus relative to the workpiece must be controlled to tolerances comparable to the laser’s spot size — often 1–10 micrometers.
The positioning system for a femtosecond laser workpiece stage must therefore achieve 1–10 μm accuracy over travel ranges that may extend to 300 mm or more — a dynamic range of 1:30,000 or better. It must do so with velocity stability tight enough to produce uniform feature depths across the workpiece. And it must achieve this in a compact, cleanroom-compatible package that integrates with the laser’s optical delivery system.
Air bearing granite stages solve all of these requirements. The air bearing provides the smooth, frictionless motion needed for uniform velocity. The granite base provides the flatness and stiffness needed for accuracy. The combined system’s thermal stability maintains the laser-to-workpiece geometry as the equipment warms up and reaches equilibrium.
Picosecond Laser Systems in Electronics Manufacturing
Picosecond lasers occupy the middle ground between nanosecond (conventional pulsed) and femtosecond lasers in terms of pulse duration and processing characteristics. They are widely used in electronics manufacturing for applications including PCB via drilling, laser scribing of thin-film solar cells, glass and sapphire cutting for consumer electronics, and marking and traceability coding for electronic components.
In these industrial applications, throughput is critical — the positioning system must move quickly between features while maintaining the accuracy needed to hit targets at the correct position. The combination of high speed and high accuracy is exactly what air bearing granite stages are optimized for: air bearings enable high speed without friction-induced velocity error, while granite’s stiffness and damping prevent the mechanical resonances that would limit accuracy at high speed.
An additional benefit in electronics manufacturing environments is the repeatability of the air bearing system over billions of motion cycles. A PCB drilling machine processing thousands of boards per day accumulates an enormous cycle count over its operating lifetime. Air bearings’ zero-wear characteristic means that the system’s accuracy at year five is the same as at day one — a property that cannot be matched by rolling element bearings, which exhibit progressive wear and deteriorating accuracy over time.
Integration Challenges and Solutions
Integrating an air bearing granite stage into a laser precision system involves several engineering considerations beyond the stage itself. Clean, dry air supply at controlled pressure is required — typically filtered to Class 0 cleanliness and pressure-regulated to ±0.1% or better. The air supply system must not introduce vibrations or pressure pulses that propagate into the stage. Temperature control of the air supply prevents thermal expansion effects as compressed air passes through the system.
The granite base must be mounted and supported in a way that preserves its flatness under load. Kinematic mounting — using exactly three support points arranged to prevent any over-constrained deflection — is standard practice. The support structures themselves must be thermally stable and vibration-isolated from the building floor.
Cable management for the motion axes — routing power cables, encoder signals, pneumatic lines, and vacuum lines to the moving stage without introducing forces that disturb the stage’s position — requires careful design. Modern direct-drive linear motors eliminate gearboxes and drive screws, further reducing the non-repeatable force disturbances that degrade positioning accuracy.
Conclusion
Air bearing granite stages represent a design philosophy: choose the best available solution for each engineering requirement, even when that solution comes from an unexpected direction. Air bearings solve friction and wear at the nanometer scale in ways that mechanical bearings cannot. Granite solves dimensional stability, vibration damping, and surface quality in ways that metals cannot — at least not without significantly higher cost and complexity.
The combination has proven itself across decades of use in the world’s most demanding precision laser systems. As laser technology continues to advance — toward shorter pulses, smaller spot sizes, and tighter process tolerances — the granite stages supporting those systems will need to advance alongside them. The manufacturers capable of delivering the required precision, verified and guaranteed, will remain essential partners in the development of laser technology.
